Brother TC-32B User Manual

Chapter 3 Preparation Function TC-32B
2004/01/22 3 - 34 eTCOMNCPR3.doc
3
3.10 Soft Limit
The allowable area of the tool motions can be specified in the following three ways.
(1)
Stroke setting by the parameter 2
(2)
Stroke limit setting by the parameter 1
(3)
Programmable stroke limit setting by the G22 code
3.10.1 Stroke
The maximum machine stroke is set by the parameter 2.
This should not be changed by the user

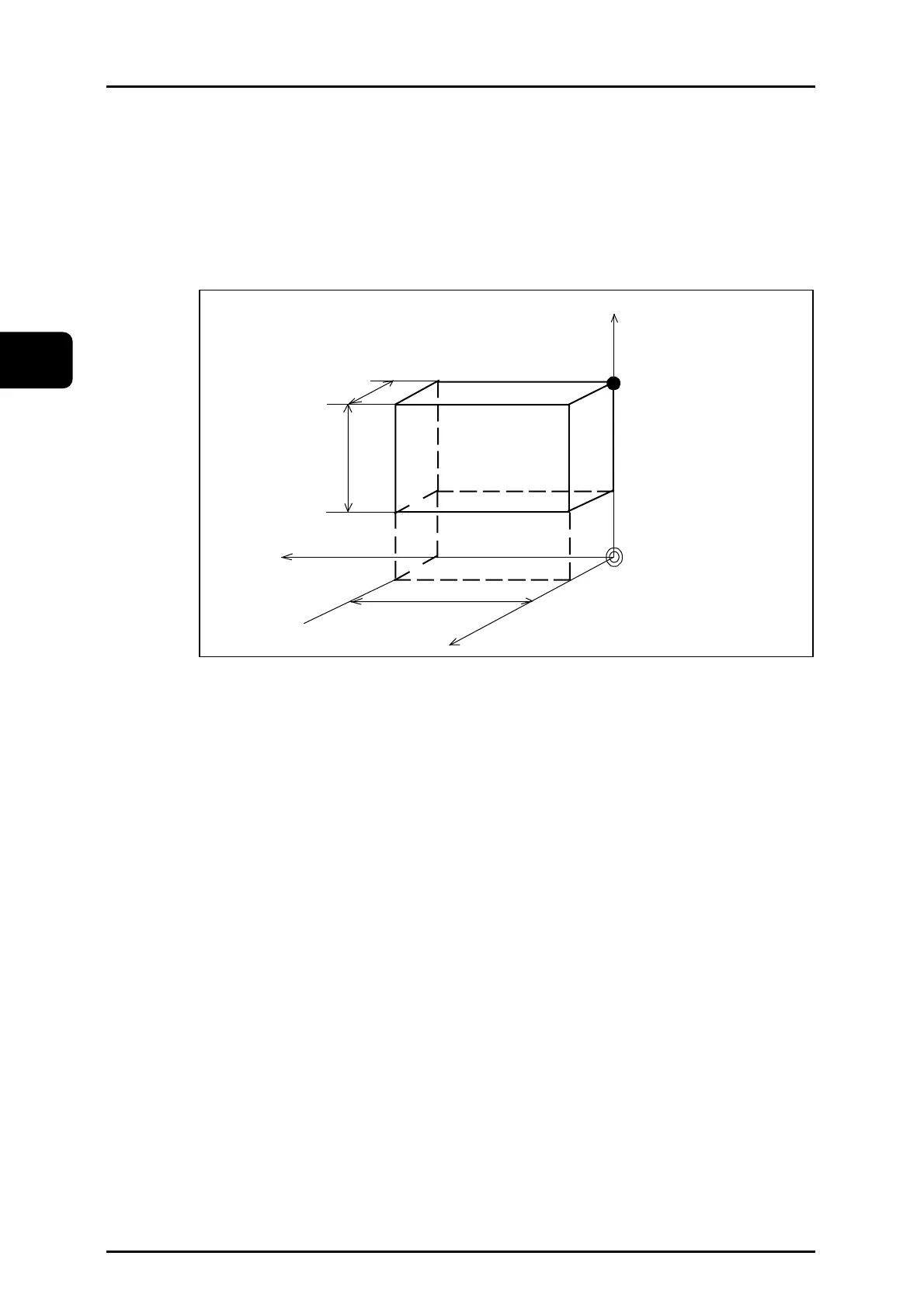

eNCPR3.17.ai
(Note) Z origin is set by the machine parameter.
3.10.2 Stroke limit
The allowable area of the tool motions in each axis of the X, Y and Z is set by the user parameter.
A xes worki ng area
-
X
X axis stroke
Y axis
stroke
Z axis
stroke
Z origin
(Zero point return
position)
Machine zero poi
(0,0,0)
-Y
+Z
