Chapter4 Preparation function (Tool offset function) TC-32B
2004/01/22 4 - 12 eTCOMNCPR4.doc
4

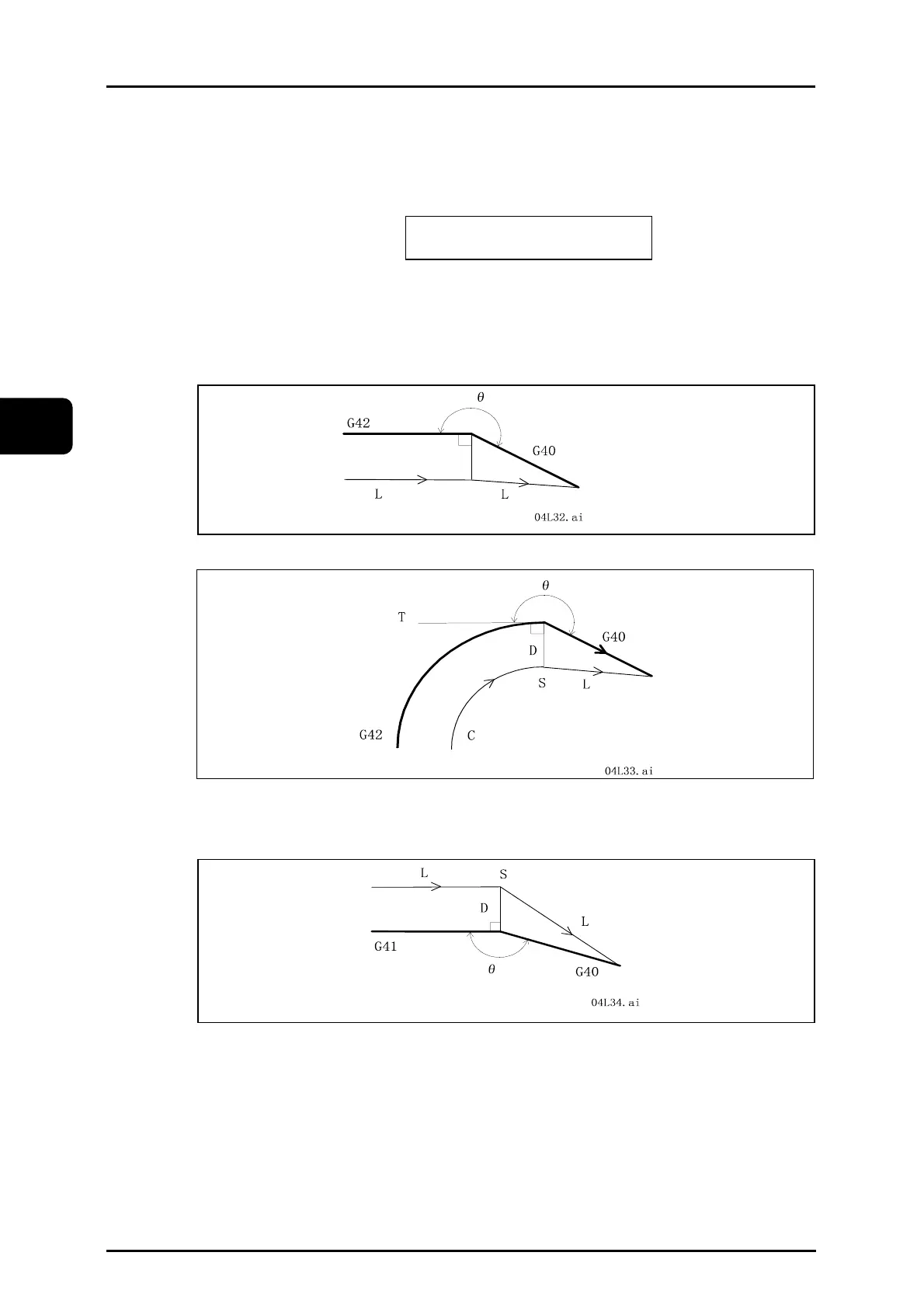

4.1.5 Offset cancel
When the command satisfying all the conditions as shown below is executed in the offset mode,
the offset cancel mode becomes effective.
The tool motion in this status is called an offset cancel.
a) G40 is commanded.
Command format G40 ;
b) The movement commanded by G0 or G1.
(Note 1) In the case of other command, an alarm is generated.
4.1.5.1 Inside cutting (180˚ ≤ θ)
Linear - Linear
Arc - Linear
4.1.5.2 Outside cutting (90˚ ≤ θ ≤ 180˚）
To Next Page
