Chapter 8 Automatic work measurement TC-32B
2004/01/30 8 - 16 eTCOMNCPR8-1.doc
8

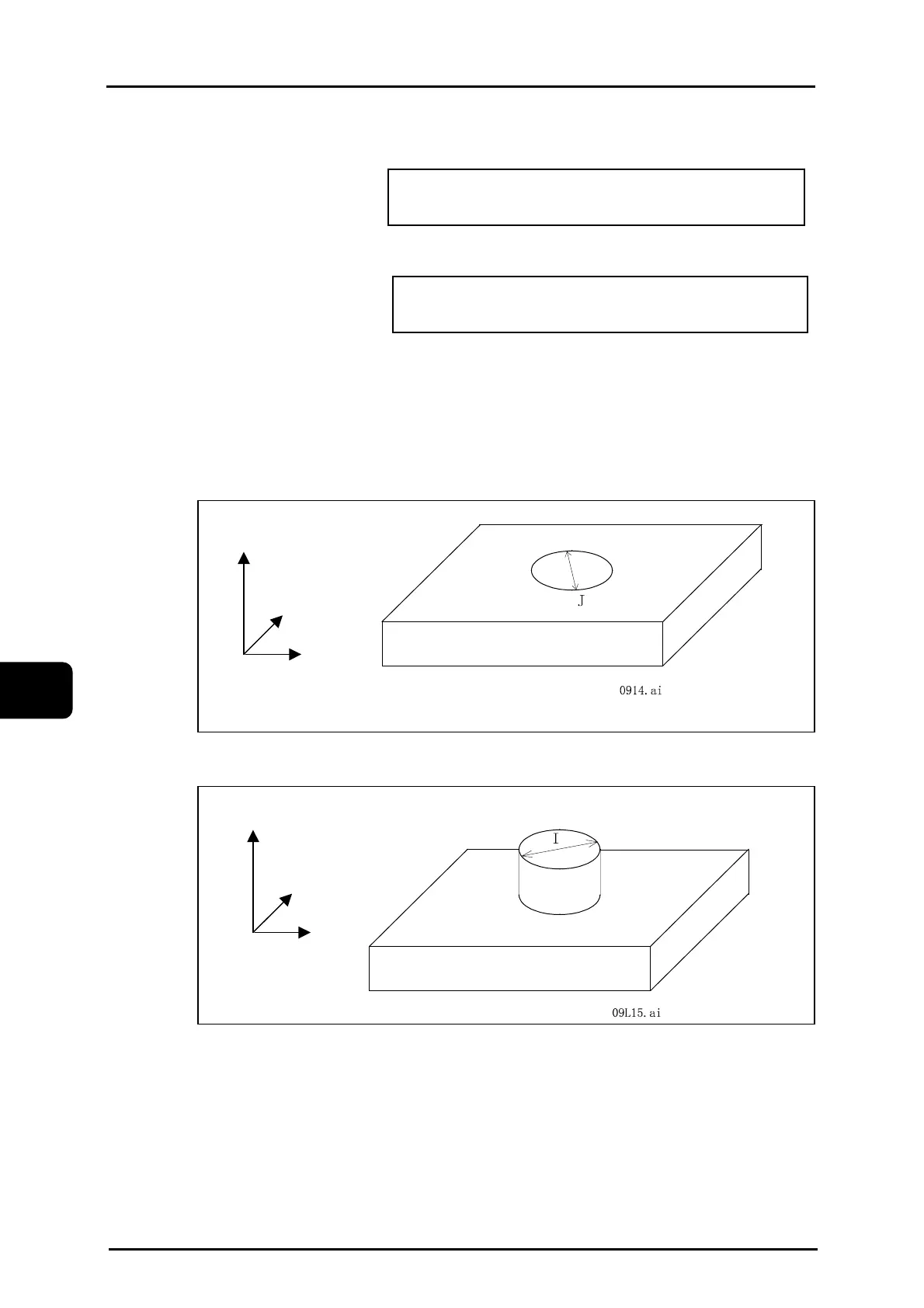

8.3.3 Circle
The circle center is calculated by measuring three points.
hole G124 X_ Y_ I_ D_Z_ R_Q_
boss G125 X_ Y_ I_ D_ Z_ R_Q_
The circle center is calcutaled by measuring four points.
hole G126 X_ Y_ I_D_ Z_ R_Q_
boss G127 X_ Y_ I_ D_Z_ R_Q_
X,Y … Estimated hole (boss) center value
I … Diameter of measuring circle
D … Tool offset number
Z … Z coordinate during measurement
R … Z coordinate of return point when the Z axis has traveled from one measurement point to
the other measurement point or when the movement has completed.
Q … Register No. that stores the measured results ("1" when omitted)
Command format
Command format
+X
+Y
+Z
+X
+Y
+Z
