Chapter 8 Automatic work measurement TC-32B
2004/01/30 8 - 20 eTCOMNCPR8-1.doc
8

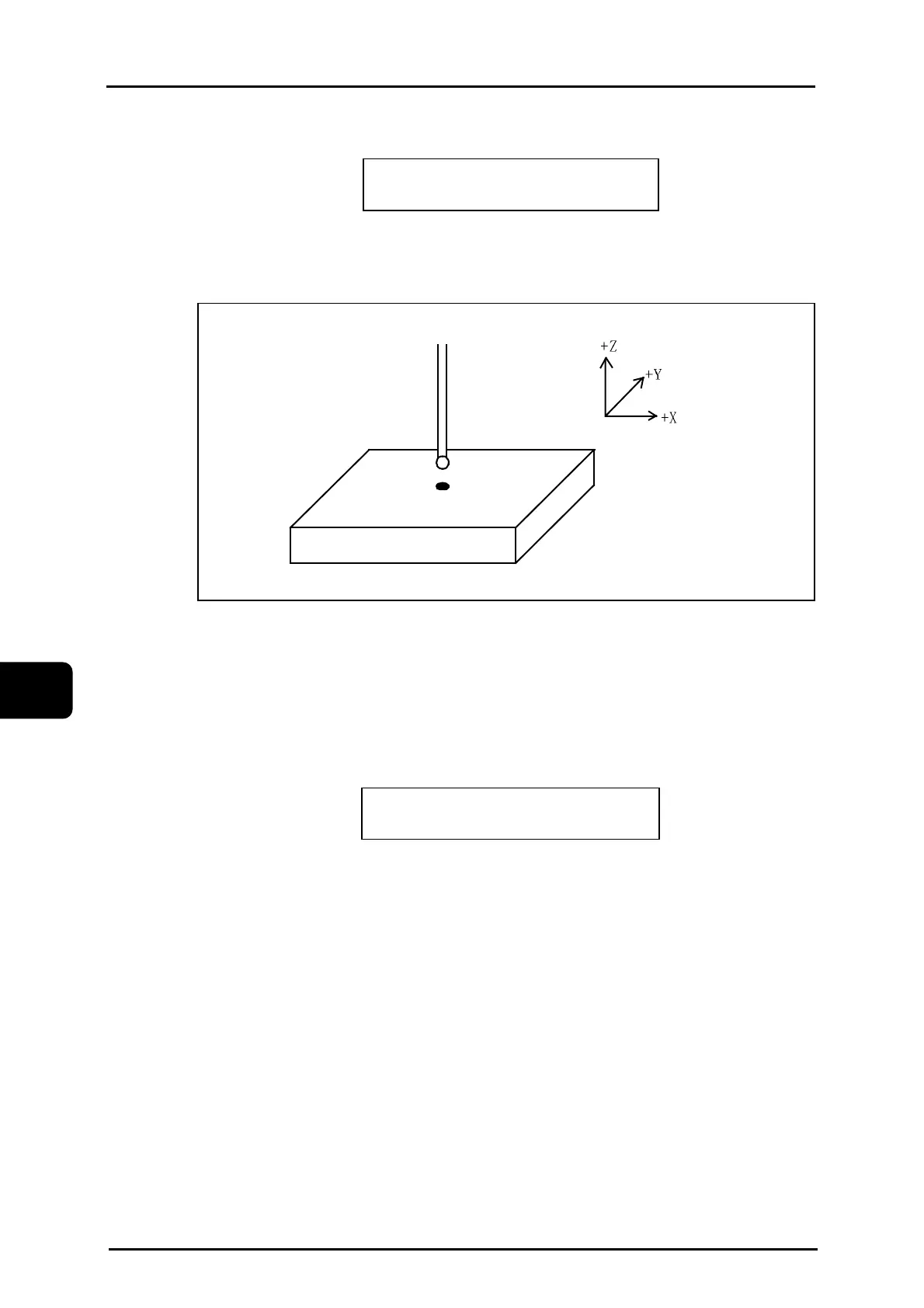

8.3.4 Z LEVEL
Command format G128 X_ Y_ Z_Q_
X,Y ... X and Y coordinates of measuring point
Z ... Z coordinate of measuring start point
Q ... Register No. that stores the measured results ("1" when omitted)
eNCPR9.29.ai
Measurment pattern
1. Spindle orientation 0°.
The probe moves to the first measurement start point of the X and Y axes.
2. The probe moves to the Z axis measurement height.
3. The first measurement is carried out (in the -Z direction ).
8.3.5 Positioning to the measurement position
Command format G120 X_ Y_ Z_Q_
X,Y and Z... Incremental amount from the measurement position
Q ... Select the desired register No. that stores the measured results ("1" when omitted).
