TC-32B Chapter 5 Preparation function (canned cycle)
2004/01/22 5 - 27 eTCOMNCPR5-1.doc
5
(2) Peck drilling cycle (G83) (Reducing step)
Command format G83 X _ Y _ Z _ R _ P _ W _ V _ F _ ;
W : 1st cutting feed
V : Minimum cutting feed

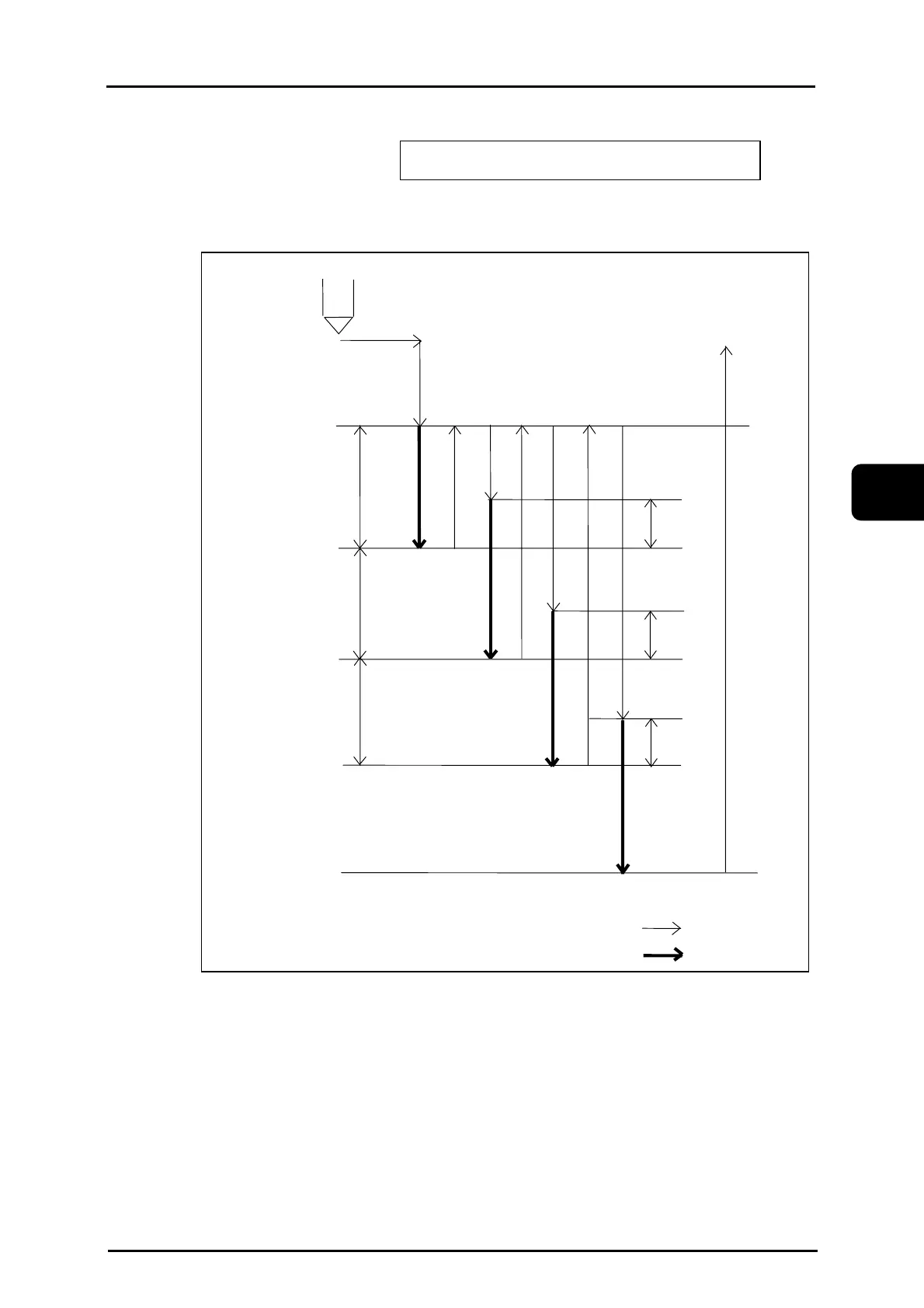

eNCPR5.27.ai
• The relief amount d is set by the parameter 1.
•
If a negative value is entered for the cutting amount V and W, the algebraic symbol (-) is
ignored.
Rapid feed
Cutting feed
3rd cuttin
feed
2nd cutting feed
R point
Z point
d
d
Return point
Dwelling for P
sec
W
d
.
.
.
V
