(1) The cornering command block and the subsequent block must contain the interpolation
command (G01-G03).
When the subsequent block does not contain an interpolation or movement command, an
alarm will occur.
(2) The inserted block belongs to the cornering command block. Thus, if the feed rate differs
from the cornering command block and the subsequent block , the inserted block moves at
the feed rate of the cornering command block. Further, the program does not stop before
the inserted block occurs even during single block operation. (It stops after the inserted
block occurs.)
(3) Tool diameter compensation applies to the configuration after cornering is performed.
(4) When the radius is longer than the corner R command block and the subsequent command
block, set extended point from each blocks as "chamfer start point" and "chamfer end
point".

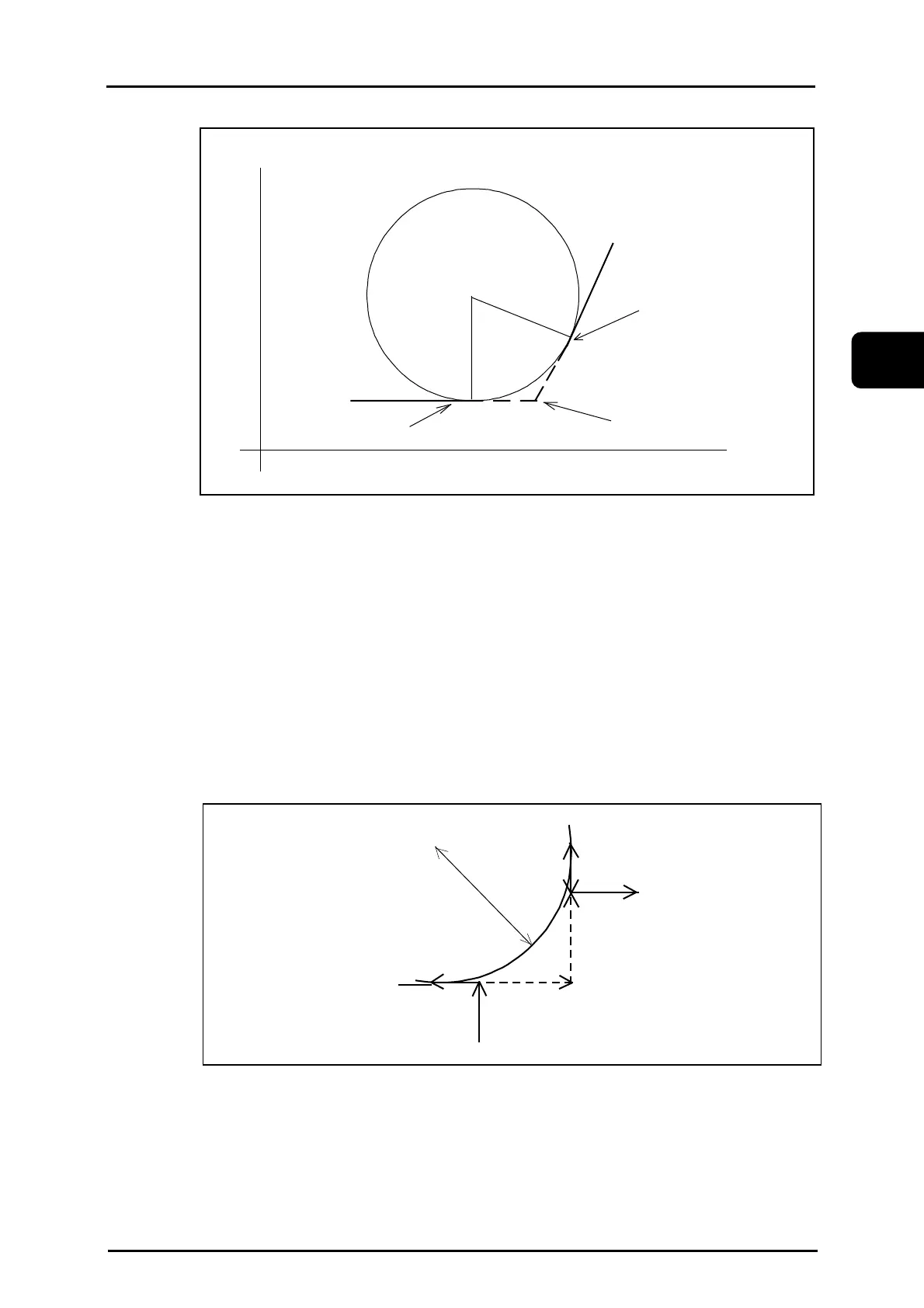

Example.1: Liner cutting
eNCPR3.07.ai
When set the programmed path to(1.2.3.4.)and the block R as (2), operate to 1-5-6-7-4.
X
Corner-R end poi
n
Virtual corner
intersection
Corner-R start point
R
Y
R
(1)
(5)
(2)
(3)
(4)
(7)
(6)
