Chapter 3 Preparation Function TC-32B
2004/01/22 3 - 24 eTCOMNCPR3.doc
3

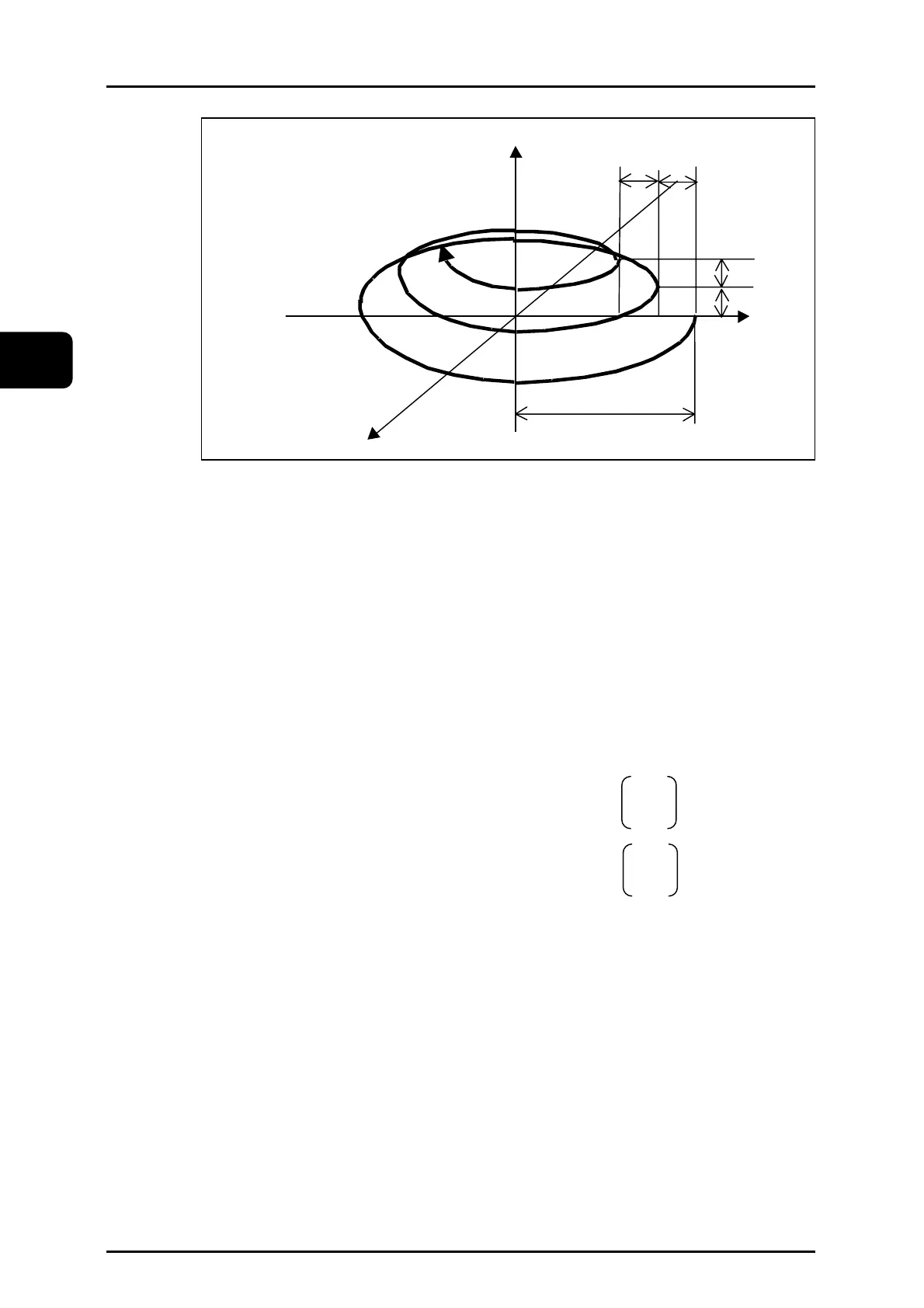

Example of program
Start point (0.,100.,0.)
End point (0.,-37.5,62.5)
Distance to the center (0.,-100.)
Increment/decrement in radius -25.
Increment/decrement in height 25.
No. of rotations 3
Example of program
Start point (0.,100.,0.)
End point (0.,-37.5,62.5)
Distance to the center (0.,-100.)
Increment/decrement in radius -25.
Increment/decrement in height 25.
No. of rotations 3
Absolute command G90G02X0 Y-37. 5Z62.5I0.J -100. F300.;
Incremental command G90G02X0 Y-137. 5Z62.5I0.J -100. F300.;
+Z_
+X_
-Y_
-
100
25.0
25.0
25.0
25.0
100.0
(0,37.5,62.5)
K25.
Q25.
L3
K25.
Q25.
L3
