Chapter 3 Preparation Function TC-32B
2004/01/22 3 - 42 eTCOMNCPR3.doc
3
Program example of mirror image using scaling function
When a negative number is specified for the scaling factor, programmable mirror image is applied.
When a negative value is specified for the scaling factor and there is only one scaling axis, CW
and CCW of circular travel will be reversed.
Program example of mirror image using scaling function
Sub program
O9000;
G00G90X60.Y60.;
G01X100.F100;
G01Y100.;
G03X60.Y60.I-30.J-30.;
M99;
Main program
N10 G00G90;
N20 M98P9000;
N30 G51X50.Y50.I-1000J1000;
N40 M98P9000;
N50 G51X50.Y50.I-1000J1000;
N60 M98P9000;
N70 G51X50.Y50.I1000J-1000;
N80 M98P9000;
N90 G50;

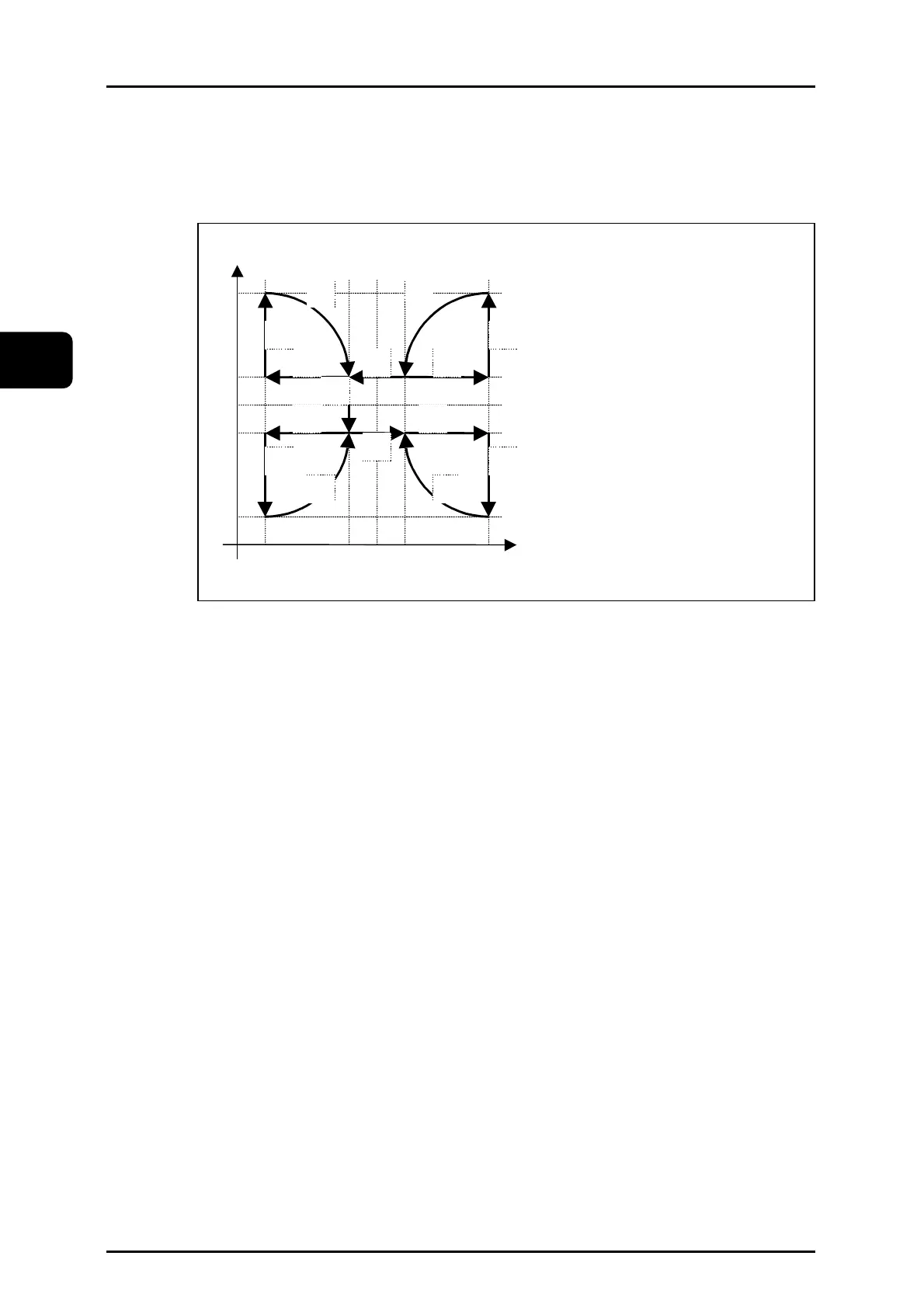

Mirror image is applied to scaling center coordinates and programmed path while the mirror image
(G51.1) is valid.
10
10
40
40 50
50
60
60
90
90
X
Y
(1)
(2)
(3)
(4)(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
