Commissioning
24/79 ekr CON 600 net – Process Data Exchange via Profibus
3.3 Installing a Fieldbus Terminating Resistor
If the ekr CON600net controller is operated as the last physical
participant on the Profibus, a fieldbus terminating resistor must
be plugged into the network socket X111 by the customer (see fig-
ure).
Controller
ekr CON 600 net
Master
e.g. PLC
Slave 1 Slave 2
X110
Profibus
X111
Bus
terminating
plug

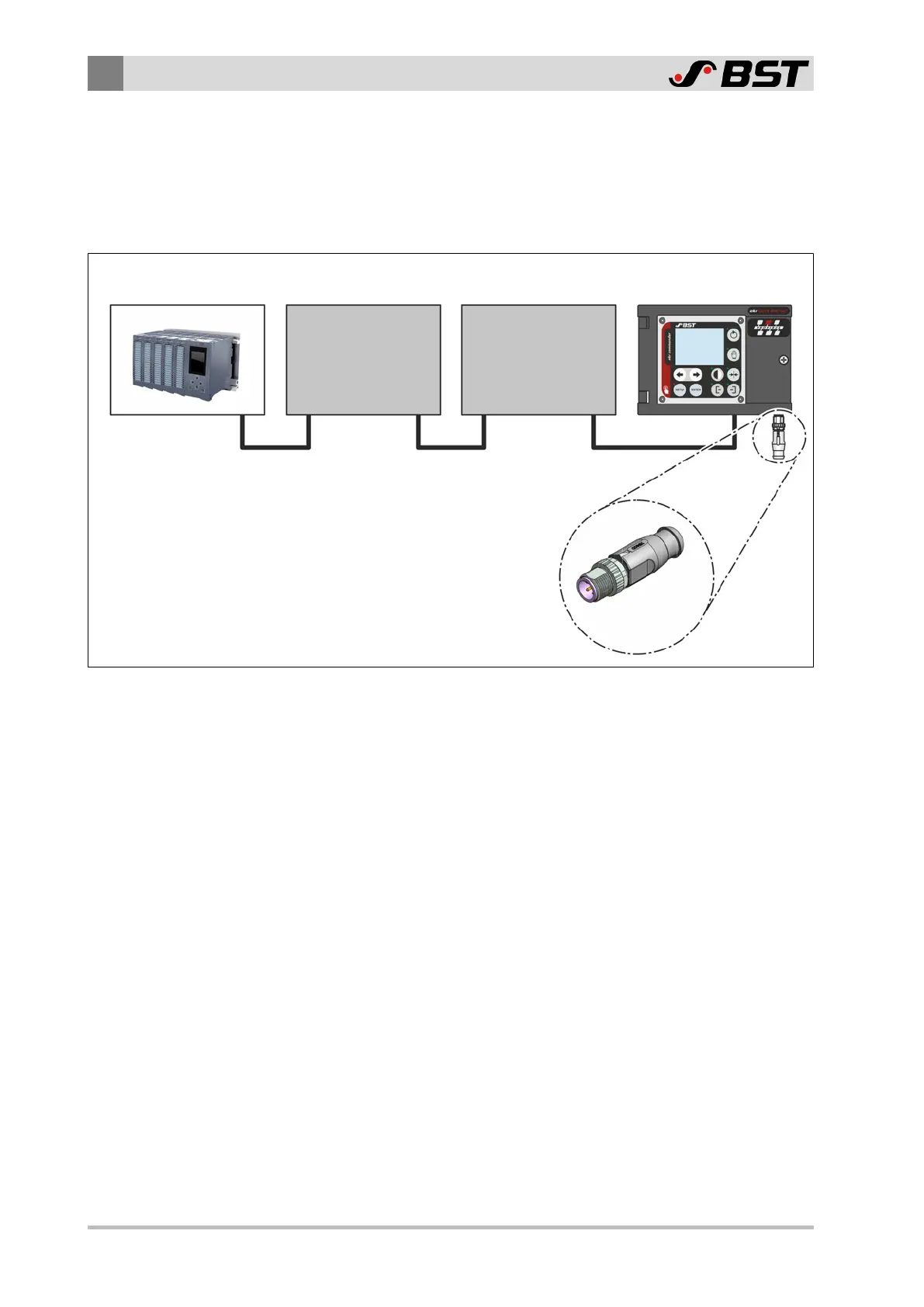

Fig.10: Termination of the Profibus network with a bus terminating plug
We recommend, for example, the use of a bus terminating plug
M12 from CONEC (article number 43-12483).
