Visual-ICE™ Cryoablation System
2-3
1
3
2
4
6
7
8
9
10

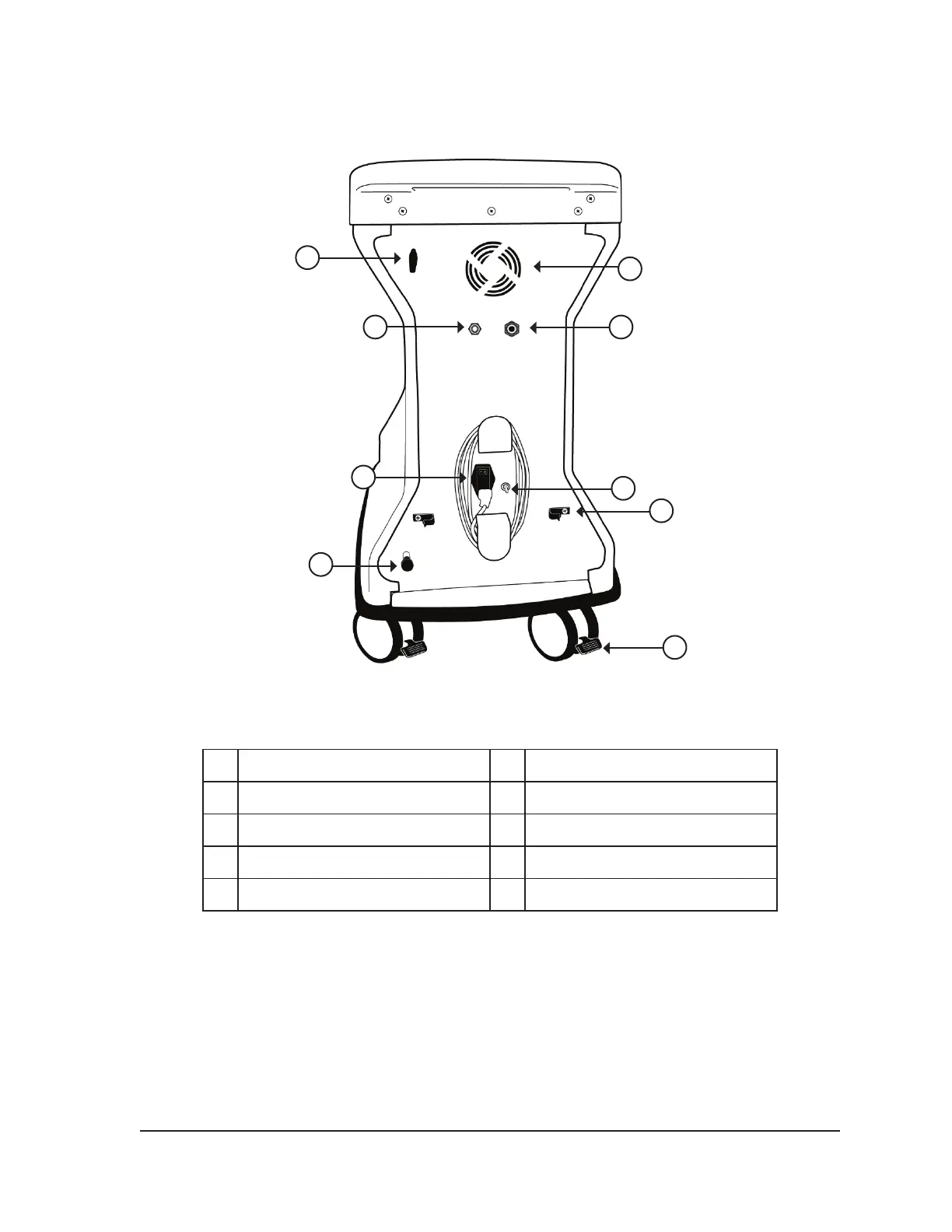

Figure 2-2. Visual-ICE Cryoablation System Rear View
1 Argon Shuto Valve 2 Cooling Fan
3 Argon Inlet Connector 4 Helium Inlet Connector
5 Cord Wrap Bracket 6 Power Switch
7 Ground Post (select countries) 8 Gas Supply Line Clip
9 Manual Vent Valve 10 Rear Wheel Brake Pedal
2.1 Touch Screen Monitor
The cryoablation procedure is controlled through the use of the touch screen monitor. The monitor
can be tilted and rotated to provide the optimal viewing and operating angle for the user. The touch
screen monitor includes a virtual on-screen English QWERTY keyboard for entering procedure
related data and may be operated with either a stylus or by nger touch. The monitor folds at into the
top of the unit for storage.
NOTE: The touch screen may need to be calibrated to obtain accurate responses from the touch
screen commands (reference Section 5.1)
