BTG Visual-ICE - Needle Connection Panel; MTS Connection Ports; Figure 2-4. Visual-ICE Cryoablation System Needle Connection Panel; Figure 2-5. Visual-ICE Cryoablation System Needle Channel

2-6 User Manual
2.9 Needle Connection Panel
3
2
1
4

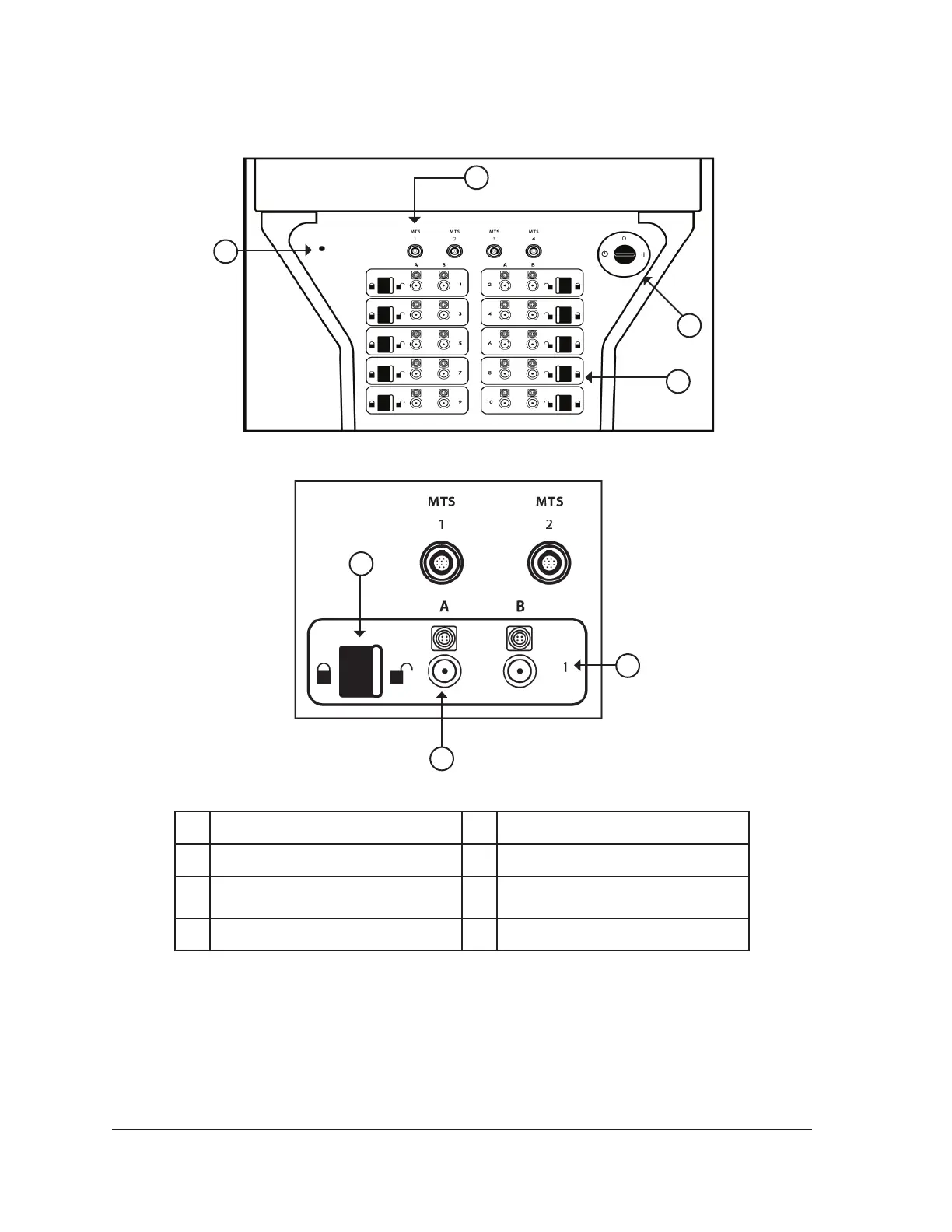

Figure 2-4. Visual-ICE Cryoablation System Needle Connection Panel
5
6
7
Figure 2-5. Visual-ICE Cryoablation System Needle Channel
1 MTS Connection Port 2 Software Reset
3 Power Control Knob 4 Needle Channel
5 Locking Bar 6
Needle Port with Electrical
Connection
7 Channel Number
2.9.1 MTS Connection Ports
Four MTS Connection Ports are located above the Needle Connection Channels. The MTS
connection ports support connection of the Galil Medical Multi-Point Thermal Sensors that are used to
monitor temperature within and near the cryoablation target site.
