Controls and MEC2 programming unit
4
Logamatic 4323 - Subject to technical modifications.10
4.2 MEC2 programming unit

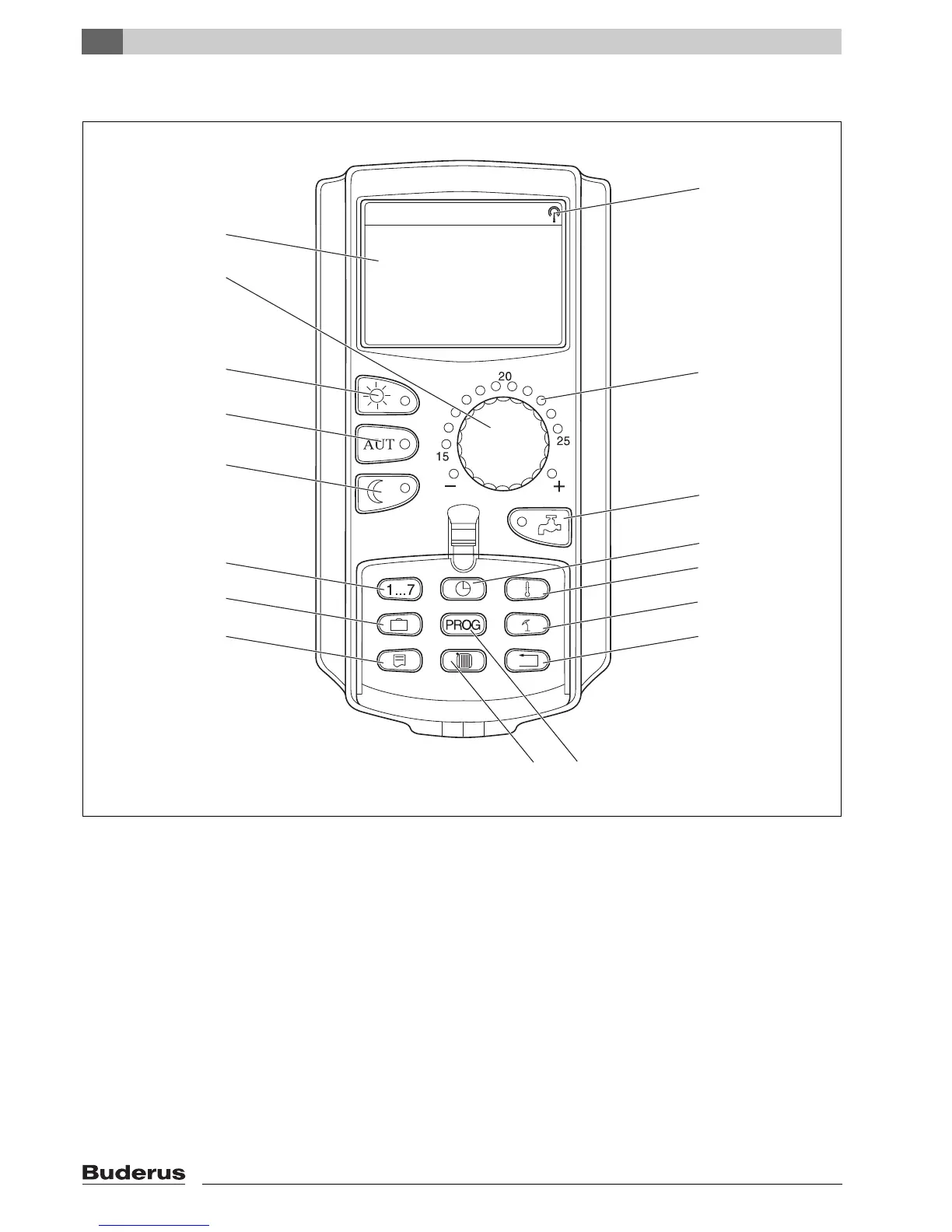

Fig. 4 MEC2 programming unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
7 747 012 074-01.1RS
1 Display
2 Rotary selector
3 constant heating mode
4 automatic heating mode acc. to a time switch
5 constant setback mode
6 Enter the day of the week
7 Enter holidays
8 Select standard display
9 Radio clock signal (only within Germany)
10 Display for set room temperature
11 Enter DHW temperature/reheating
12 Set the time
13 Change temperature values
14 Summer/Winter Time adjustment
15 back to the standard display
16 Select a time switch program
17 Select heating circuits/DHW circuit
