Buell 2006LIGHTNING MODELS User Manual

1-42 2006 Buell Lightning: Maintenance
HOME
INSTALLATION
1. See Figure 1-44. Place filter element (1) on baseplate
(2).
2. See Figure 1-40. Position air cleaner cover (1) over
baseplate. Make sure air filter remains correctly posi-
tioned.
3. Install air cleaner cover by latching latch tabs to base-
plate.
4. For XB12 models, verify that the actuator cable and har-
ness are located in the grooves in the air cleaner cover.
CAUTION
The vent tube is now a larger outer diameter than previ-
ous and requires extra effort to install into the functional
air cleaner assembly. Failure to properly install vent line
will result in cosmetic damage to the inside of the trans-
lucent intake cover assembly.
5. Position fuel vent tube (3) in groove on top of air cleaner
cover and connect to fuel vent valve (6). Secure vent
tube to vent valve with new cable strap.
NOTE
If necessary, adjust interactive exhaust cable. See 1.16
INTERACTIVE EXHAUST CABLE (XB12 MODELS).
6. Install intake cover assembly with four fasteners and
nylon washers. Tighten fasteners to 12-36 in-lbs (4-
4 Nm).
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
7. Install seat. See 2.43 SEAT.

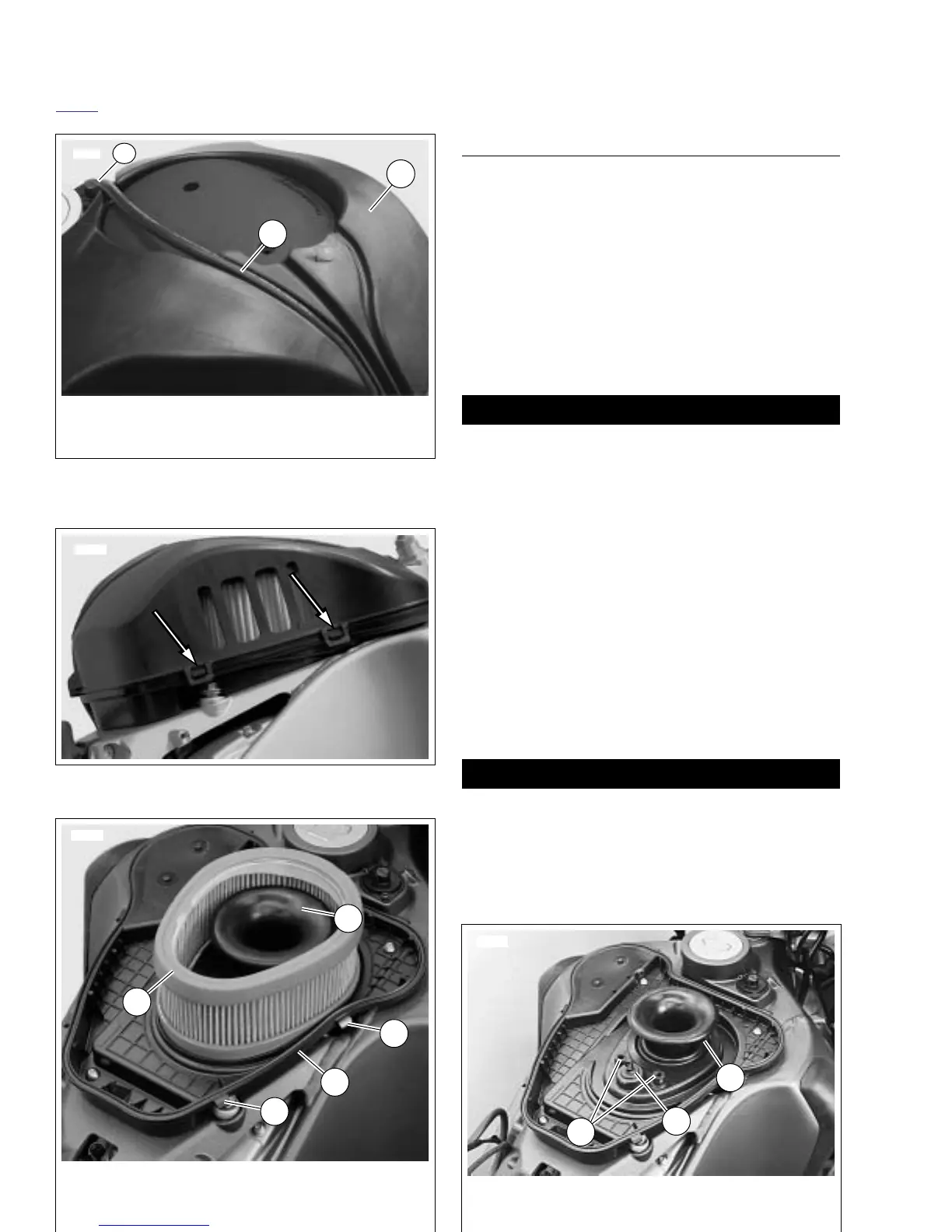

Figure 1-42. Air Cleaner Cover, Fuel Vent Tube and Fuel
Vapor Valve (XB9SX “Translucid” model)
Figure 1-43. Air Cleaner Cover Latches
Figure 1-44. Installed Air Cleaner Filter Element
1. Air cleaner cover
2. Fuel vent tube
3. Vapor valve
12134
1
2
3
12135
11214
1. Filter element
2. Baseplate assembly
3. Air cleaner cover latch tabs
4. Velocity stack
2
1
3
3
4
Figure 1-45. Air Cleaner Base Plate Assembly
12145
1. Breather hoses (2)
2. Intake air sensor
3. Velocity stack
3
2
1
