2006 Buell Lightning: Chassis 2-93
HOME
AIR SCOOPS 2.38
RAM AIR SCOOP
Removal
1. See Figure 2-122. On left side of bike, locate ram air
scoop (4).
2. Remove three ram air scoop fasteners (3).
3. Remove ram air scoop (4).
Installation
1. See Figure 2-122. Position ram air scoop (4).
2. Install ram air scoop (4) with three fasteners (3). Tighten
to 12-36 in-lbs (1.4-4 Nm).
ENGINE SHROUD AIR SCOOP
Removal
1. See Figure 2-122. On right side of bike, locate engine
shroud air scoop (6).
2. Remove three engine shroud air scoop fasteners (5).
3. Remove engine shroud air scoop (6).
Installation
1. See Figure 2-122. Position engine shroud air scoop (6).
2. Install engine shroud air scoop (6) with three fasteners
(5). Tighten to 12-36 in-lbs (1-4 Nm).
OIL COOLER AIR SCOOP
Removal
1. See Figure 2-122. On left side of bike, locate oil cooler
air scoop (2).
2. Remove two oil cooler air scoop fasteners (1).
3. Remove oil cooler air scoop (2).
Installation
1. See Figure 2-122. Position oil cooler air scoop (2).
2. Apply LOCTITE 272 (red) to oil cooler air scoop fasten-
ers (1) and tighten to 48-72 in-lbs (5.4-8 Nm).

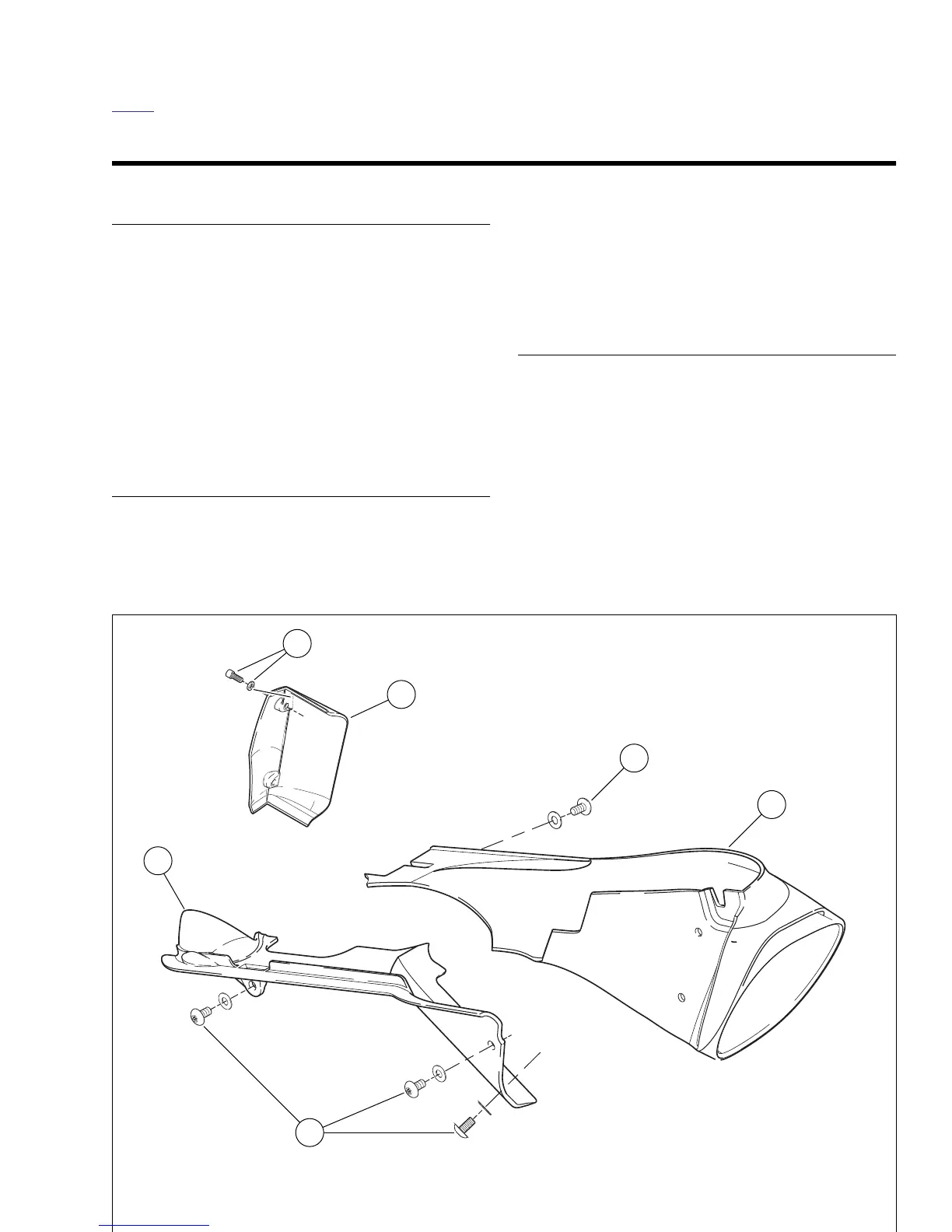

Figure 2-122. RAM Air Scoop, Engine Shroud, Oil Cooler
b01012x2x
1. Oil cooler air scoop fastener and washer (2)
2. Oil cooler air scoop
3. Ram air scoop fastener and washer
4. Ram air scoop
5. Engine scoop fastener and washer (3)
6. Engine scoop
5
4
3
1
2
6
