OIL LINE FITTINGS 3.10
REMOVAL
1. See Figure 3-108. Close the OIL LINE REMOVER (B-
41623-B) over the oil line. Match the notches in the tool
flange to the U-bends in the spring clip.
2. See Figure 3-109. Rotate the tool to expand the spring
clip out of the groove in the oil fitting.
3. Using finger and thumb to hold the OIL LINE REMOVER
(B-41623-B) squarely against the fitting to keep the
spring clip expanded. Use only enough pressure to hold
the tool square. Excess pressure will prevent simulta-
neously pulling the line and tool from the fitting.
4. Pull the oil line and the tool from the fitting.
5. Repeat to remove the remaining oil lines.
6. Remove oil line fittings and plug the holes until they can
be replaced.
PART NO. SPECIALTY TOOL
B-41623-B Oil line remover

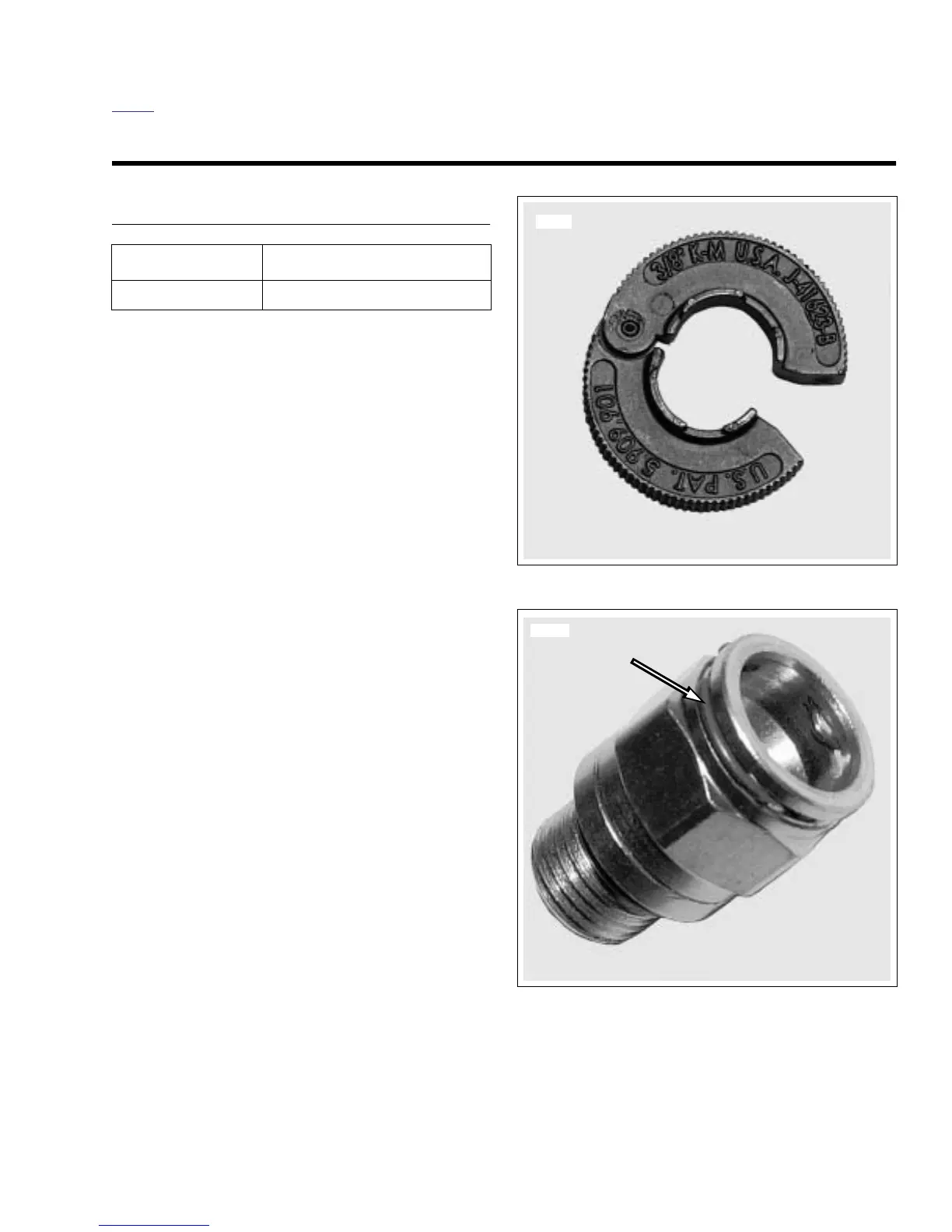

Figure 3-108. Oil Line Remover (B-41623-B)
Figure 3-109. Oil Line Fitting with Spring Clip
