DRIVE BELT SYSTEM 6.6
GENERAL
There is no drive belt adjustment required. The system uti-
lizes a fixed idler pulley that maintains the desired tension
throughout suspension travel and life of the belt.
INSPECTION AND CLEANING
See 1.9 DRIVE BELT.

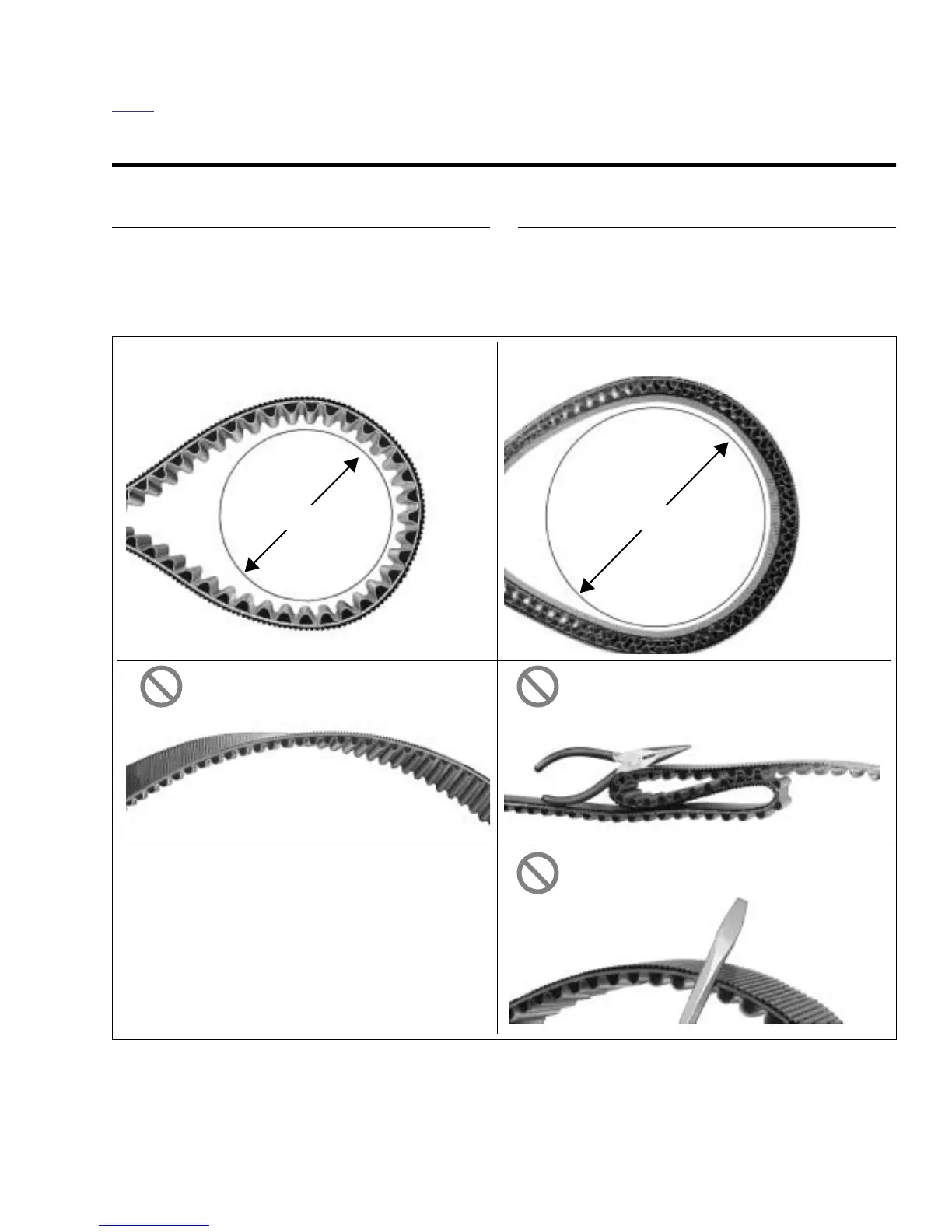

Figure 6-38. Proper Drive Belt Handling
NOTE
Mishandling drive belt will result in premature failure. For
maximum strength, integrity and longevity, avoid over
bending (A and B), twisting (C), crimping, pinching or kink-
ing (D), and prying (E).
AB
CD
E
Forward bend must not be less than 5 in. (127 mm). Reverse bend must not be less than 10 in. (254 mm).
Do not twist. Do not crimp, pinch or kink.
Do not pry.
Minimum Diameter
