2-92 2006 Buell Lightning: Chassis
HOME
INTAKE COVER ASSEMBLY 2.37
REMOVAL
NOTE
The "X-Guard" on XB9SX is a non replaceable part.
1. Remove seat. See 2.43 SEAT.
2. See Figure 2-121. Remove fasteners and nylon washers
(2).
3. Remove intake cover assembly (1).
INSTALLATION
1. Position intake cover assembly over top of air cleaner
cover.
2. See Figure 2-121. Start the front two fasteners (2) with
nylon washers.
3. Install the remaining fasteners and nylon washers (2).
Tighten all fasteners to 12-36 in-lbs (1-4 Nm).
NOTE
Front screws go in at a slight angle.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
4. Install seat. See 2.43 SEAT.

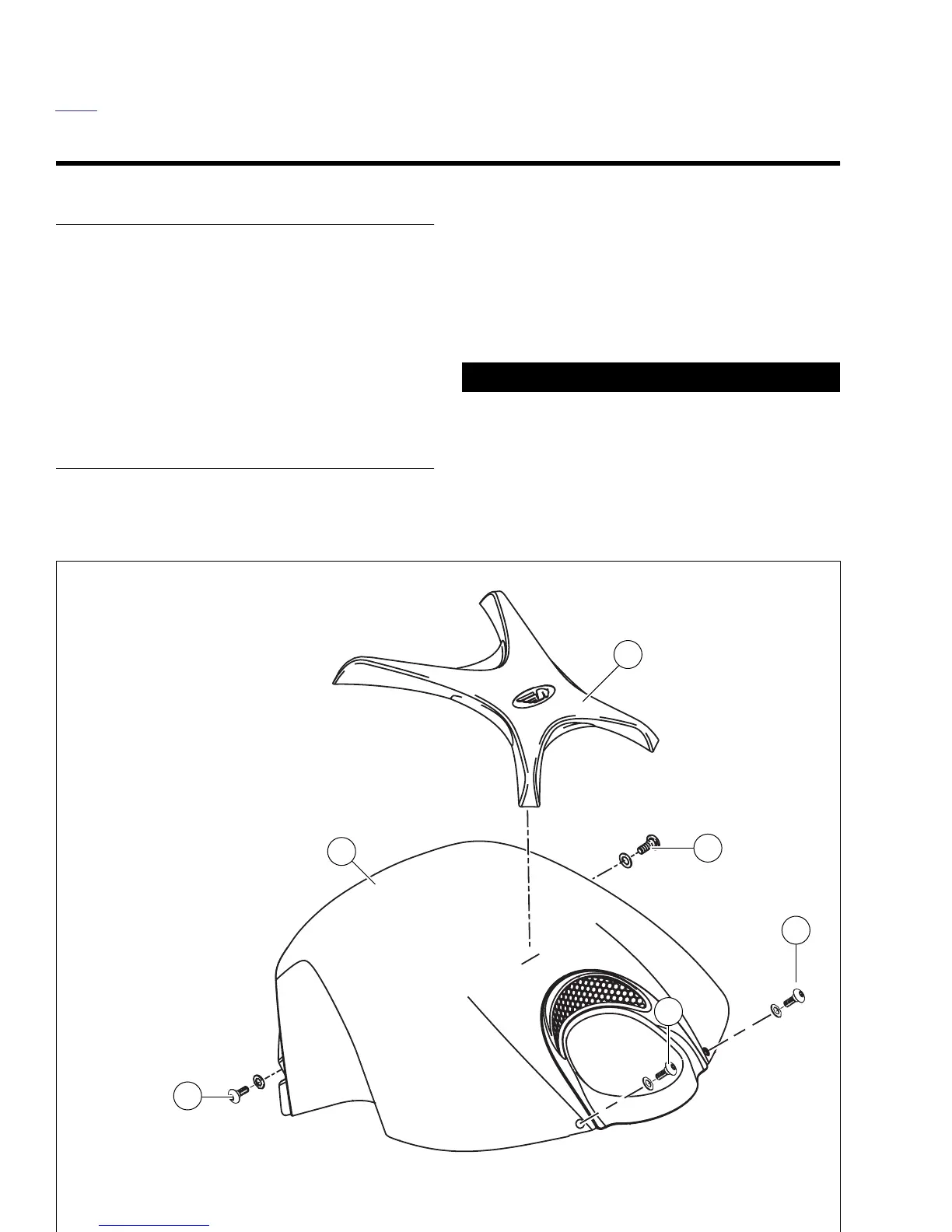

Figure 2-121. Intake Cover Assembly
1. X-Guard (XB9SX only)
2. Intake cover assembly
3. Intake cover fasteners (4)
b1262x1x
3
3
2
1
3
3
