2006 Buell Lightning: Chassis 2-89
HOME
FENDERS 2.34
FRONT FENDER
Removal
1. See Figure 2-118. Remove fasteners and washers (2)
securing the front fender (1) to front forks.
2. Carefully remove front fender (1).
Installation
1. See Figure 2-118. Align front fender (1) to fender mounts
on front forks.
2. Install front fender (1) with fasteners and washers (2),
apply LOCTITE 272 and tighten to 36-48 in-lbs (4-
5.4 Nm).
REAR FENDER
Removal
1. See Figure 2-118.
a. For XB9SX, XB12S, andXB12Scg: Remove fasten-
ers (4) securing the rear fender (3) to frame.
b. For XB12Ss: Remove fender fasteners (6).
2. Remove rear fender (XB9SX, XB12S, XB12Scg - 3)
(XB12Ss - 5).
Installation
1. See Figure 2-118. Align rear fender to frame.
2. Install rear fender with fasteners (6).
a. For XB9SX, XB12S, andXB12Scg: Tighten to 12-
36 in-lbs (1.4-4.0 Nm).
b. For XB12Ss: Tighten fender fasteners to 12-36 in-
lbs (1.4-4.0 Nm).
NOTE
On XB12Ss models it is necessary to align the rear brake line
with the rear inner fender. The rear fender captures the rear
brake line to help maintain the proper alignment and location.

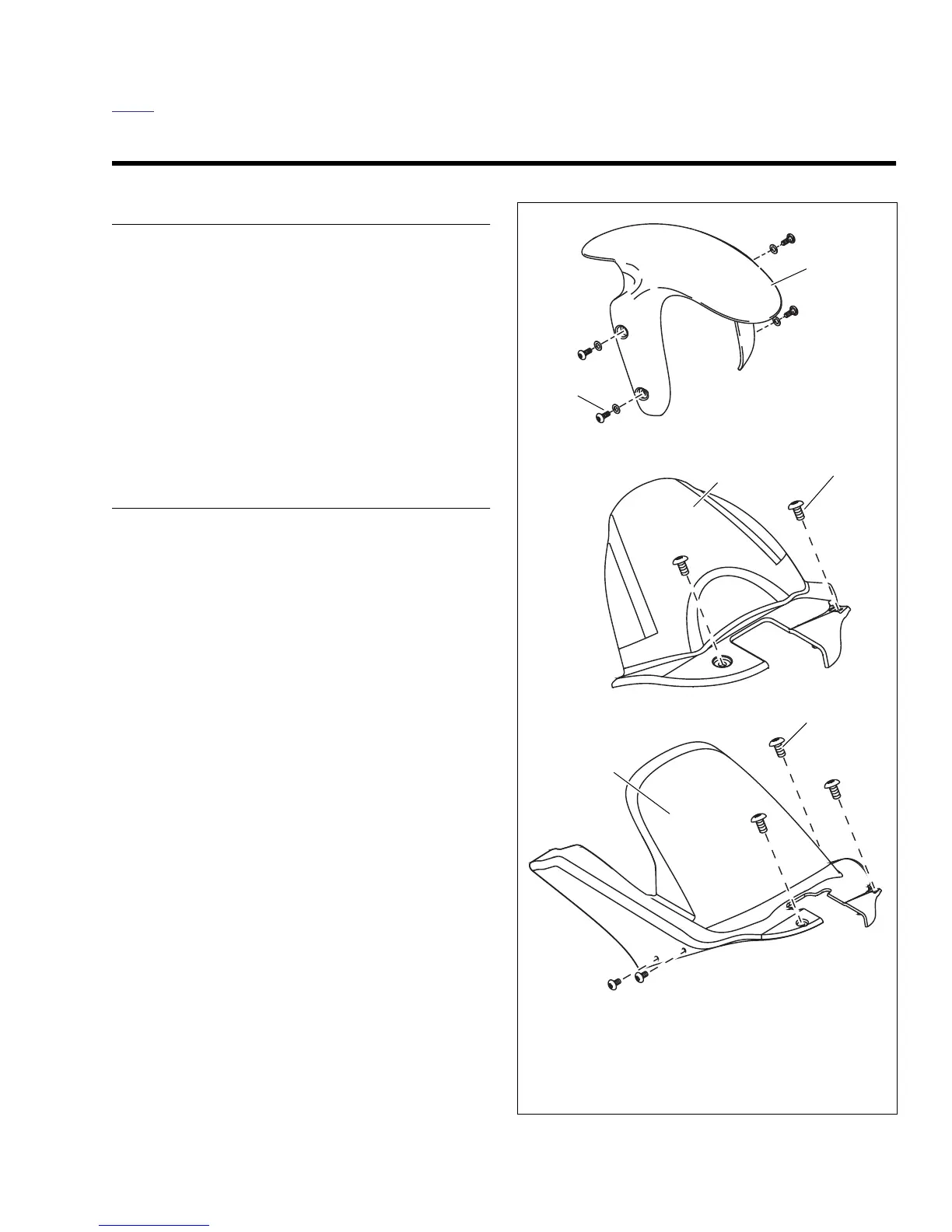

Figure 2-118. Front and Rear Fender
1. Front fender
2. Front fender fastener (4)
3. Rear fender (XB9SX, XB12S, XB12Scg)
4. Rear fender fastener (2)
5. Rear fender (XB12Ss)
6. XB12Ss rear fender fastener (5)
b1263x1x
1
2
3
4
6
5
