GEARCASE COVER AND CAM GEARS 3.18
GENERAL
Read the complete gearcase section carefully before you
begin any service work.
For the gearcase components to operate at their optimum, all
components must be properly fitted and matched. Changing
one component can affect many others. It is important to
know and understand all inspection procedures and how
components interact.

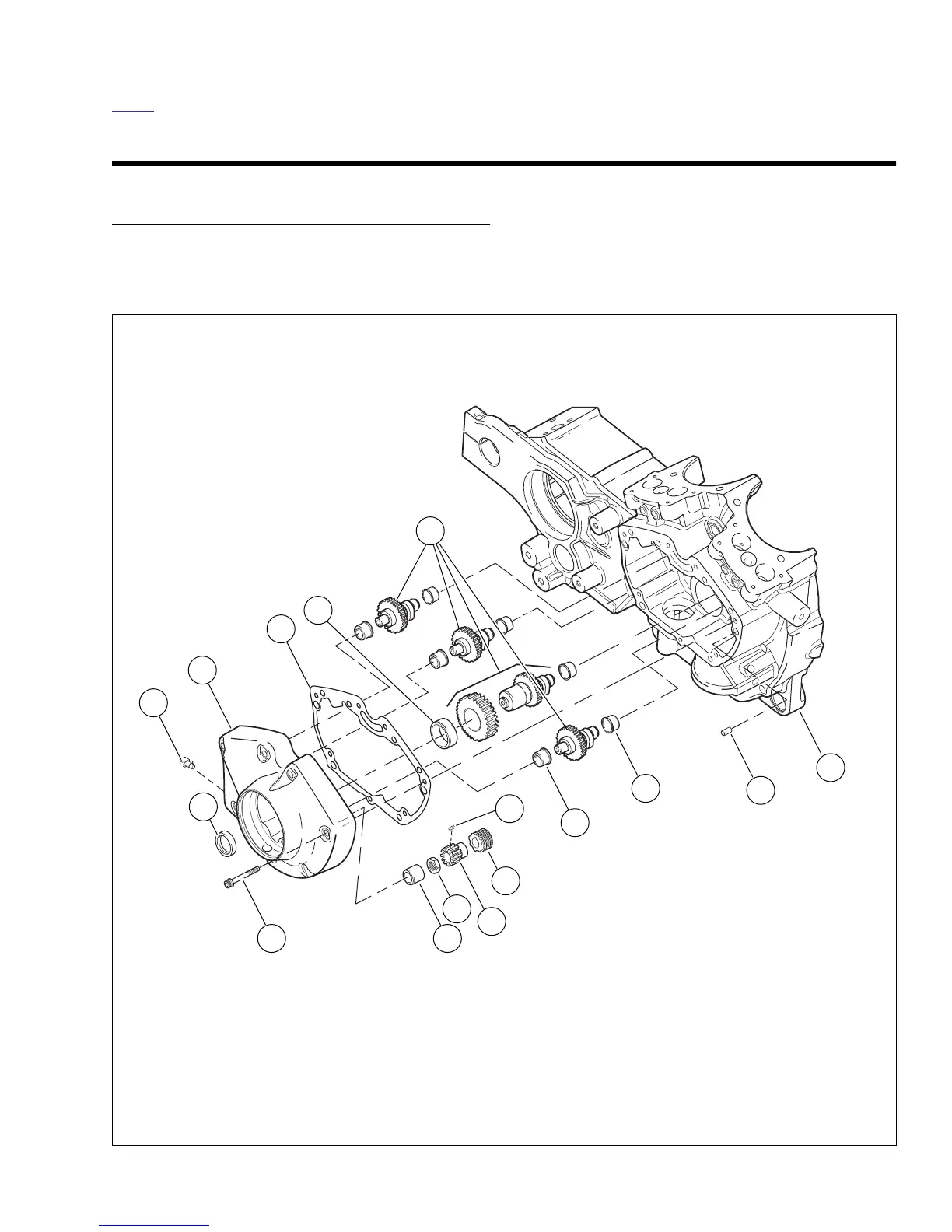

Figure 3-126. Gearcase Cover and Cam Assembly
b0980x3x
1. Screw (7)
2. Seal
3. Fitting, oil vent line
4. Gear Cover
5. Gear cover gasket
6. Bushing, outer, intake camshaft gear
7. “E” Cam gear set
8. Right crankcase half
9. Dowel pin
10. Bushing, inner, camshaft gear (4)
11. Bushing, outer, camshaft gear (3)
12. Key
13. Oil pump drive gear
14. Pinion gear
15. Nut
16. bushing, gear shaft- pinion
16
15
12
5
7
4
2
13
11
10
3
14
8
9
1
6
