Buell 2006LIGHTNING MODELS - Trouble Code 35

2006 Buell Lightning: Fuel System 4-77
HOME
TROUBLE CODE 35 4.25
GENERAL
Tachometer
A Code 35 will set if the PK tachometer wire is shorted to
power or ground.
DIAGNOSTICS
Diagnostic Notes
The reference numbers below correlate with the circled num-
bers on the Code 35 flow chart.
1. Connect BREAKOUT BOX (Part No. HD-42682) to ECM.
See 4.6 BREAKOUT BOX.
2. Replace instrument module. See 7.19 INSTRUMENT
MODULE.

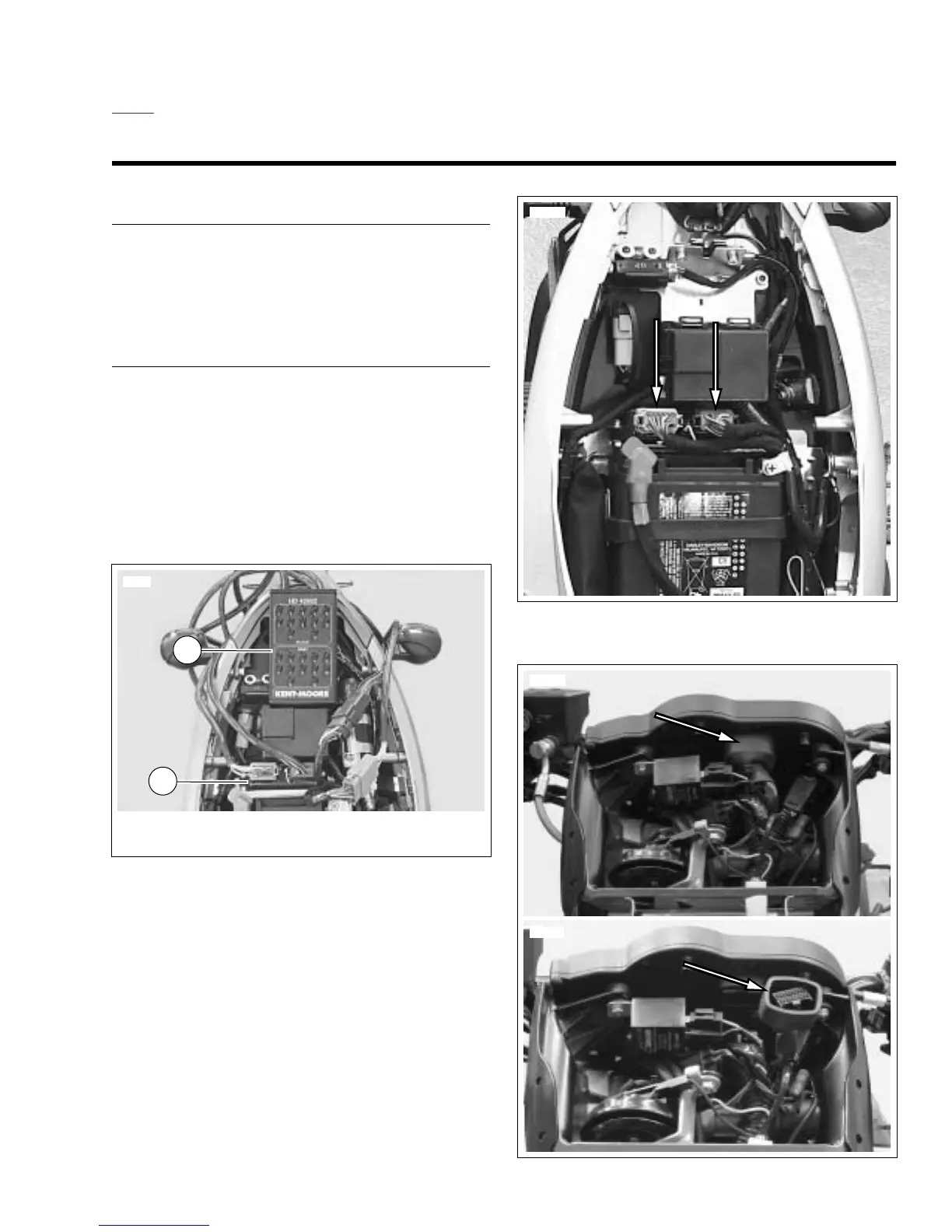

Figure 4-55. Installed Breakout Box (Typical)
1. Breakout box
2. ECM
2
1
8890
Figure 4-56. ECM Connections (XB12Ss)
Figure 4-57. Instrument Module Connector [39] (Typical)
12154
10635a
