2006 Buell Lightning: Chassis 2-27
HOME
BRAKE PEDAL 2.9
REMOVAL
1. See Figure 2-37. Remove cotter pin (7) and discard.
2. Remove clevis pin (2).
3. Remove pedal fastener (5).
4. Remove shift brake pedal sleeve (4).
5. Remove pedal bushings (3).
6. Remove brake pedal (6).
INSTALLATION
1. See Figure 2-37. Install pedal bushings (3).
2. Install shift brake pedal sleeve (4).
3. Install brake pedal (6) using LOCTITE 272 (Red) and
tighten fastener (5) to 22-24 ft-lbs (30-33 Nm).
4. Install clevis pin (2).
5. Install new cotter pin (7).

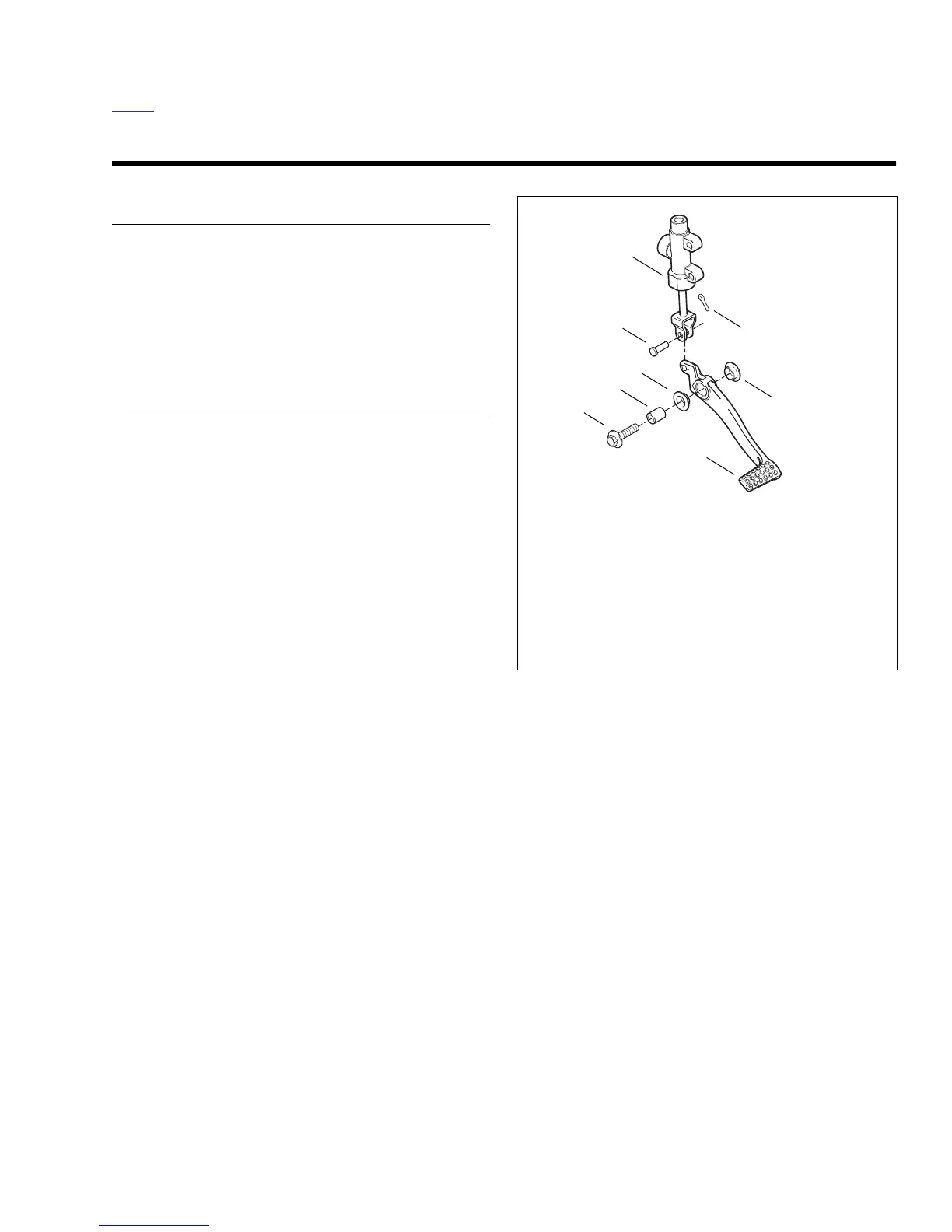

Figure 2-37. Brake Pedal Assembly
1. Rear master cylinder body
2. Clevis pin
3. Pedal bushings (2)
4. Shift brake pedal sleeve
5. Brake pedal fastener
6. Brake pedal
7. Cotter pin
b0938x2x
1
2
4
5
3
7
6
3
