SPROCKET COVER 2.33
REMOVAL
1. See Figure 2-116. Remove rear right chin fairing fasten-
ers.
NOTE
Must remove two chin fairing fasteners for sprocket cover
access.
2. See Figure 2-117. Remove sprocket cover fasteners and
washers (1).
INSTALLATION
1. See Figure 2-117. Position sprocket cover (2) over front
sprocket.
NOTE
Apply LOCTITE 222 (purple) to the long fastener (1) only.
2. Install sprocket cover (2) using sprocket cover fasteners
(1, 3) and tighten all fasteners and washers (1, 3) to 12-
36 in-lbs (1-4 Nm).
3. Install chin fairing. See 2.36 CHIN FAIRING.

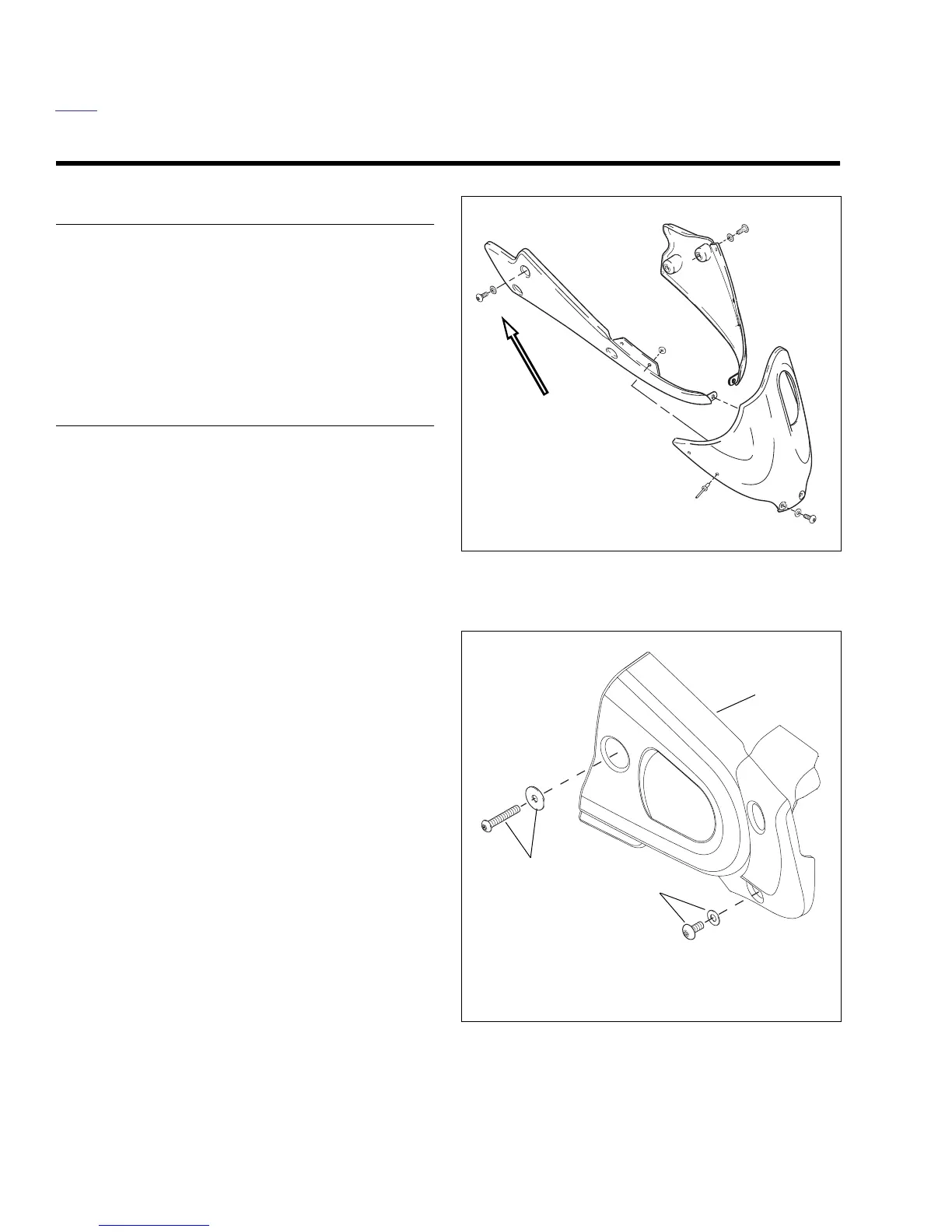

Figure 2-116. Chin Fairing Assembly,
Right Rear Fasteners
Figure 2-117. Sprocket Cover
b0942x2x
b1187x2x
1. Long fastener and washer
2. Sprocket cover
3. Short fastener and washer (2)
2
1
3
