CYLINDER HEAD 3.6
REMOVAL
Before removing the cylinder head assembly, it is necessary
to rotate engine down as described in 3.3 ENGINE ROTA-
TION FOR SERVICE. The rocker arm covers and internal
components must be removed before removing cylinder
heads.
NOTE
All washers and fasteners used in the engine are hardened.
Do not mix or replace hardened washers and fasteners with
unhardened parts. Do not re-use fiber cover seals. Engine
damage may result.

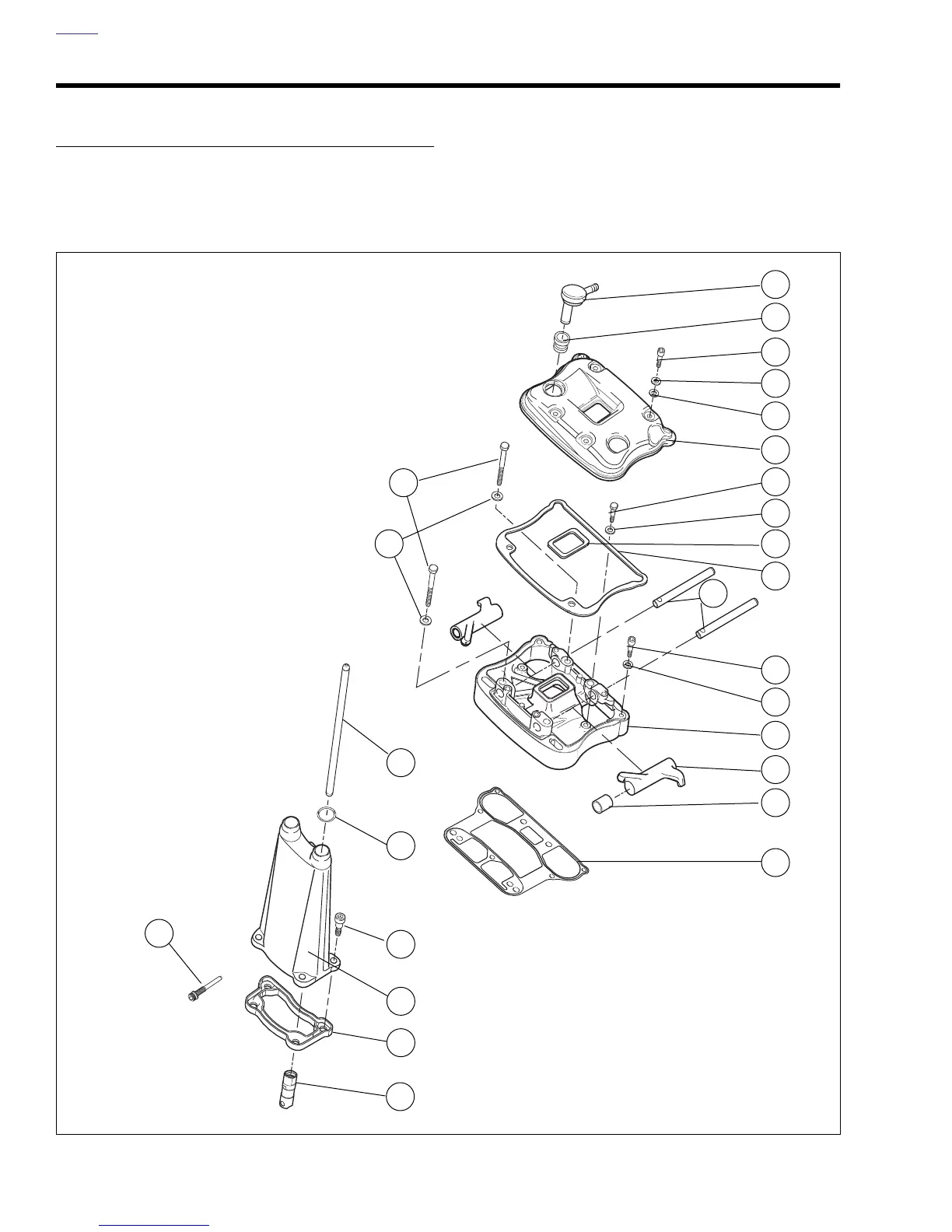

Figure 3-57. Rocker Arm and Push Rod Cover Assemblies
1. Crankcase breather
2. Grommet
3. Screw (4)
4. Washer (4)
5. Gasket (4)
6. Rocker cover (top)
7. Bolt (3)
8. Washer (3)
9. Gasket (inner)
10. Gasket (lower)
11. Rocker arm shafts
12. Bolt (2)
13. washer (2)
14. Rocker cover (lower)
15. Rocker arm (2)
16. Bushing (rocker arm - 4)
17. Gasket (lower rocker cover)
18. Hydraulic lifter
19. Screw, tappet anti-rotation (2)
20. Gasket (push rod cover)
21. Push rod cover
22. Screw (4)
23. O-ring (push rod cover - 2)
24. Push rod
25. Washer (4)
26. Bolt (4)
b0960x3x
1
2
3
4
6
7
8
11
12
13
14
15
16
17
26
24
22
21
20
23
25
9
10
18
19
5
