SPROCKET COVER WIRING 7.26
GENERAL
Connectors for the stator [46], voltage regulator [77], vehicle
speed sensor [65], cam position sensor [14] and neutral
switch [131] are located under the sprocket cover.

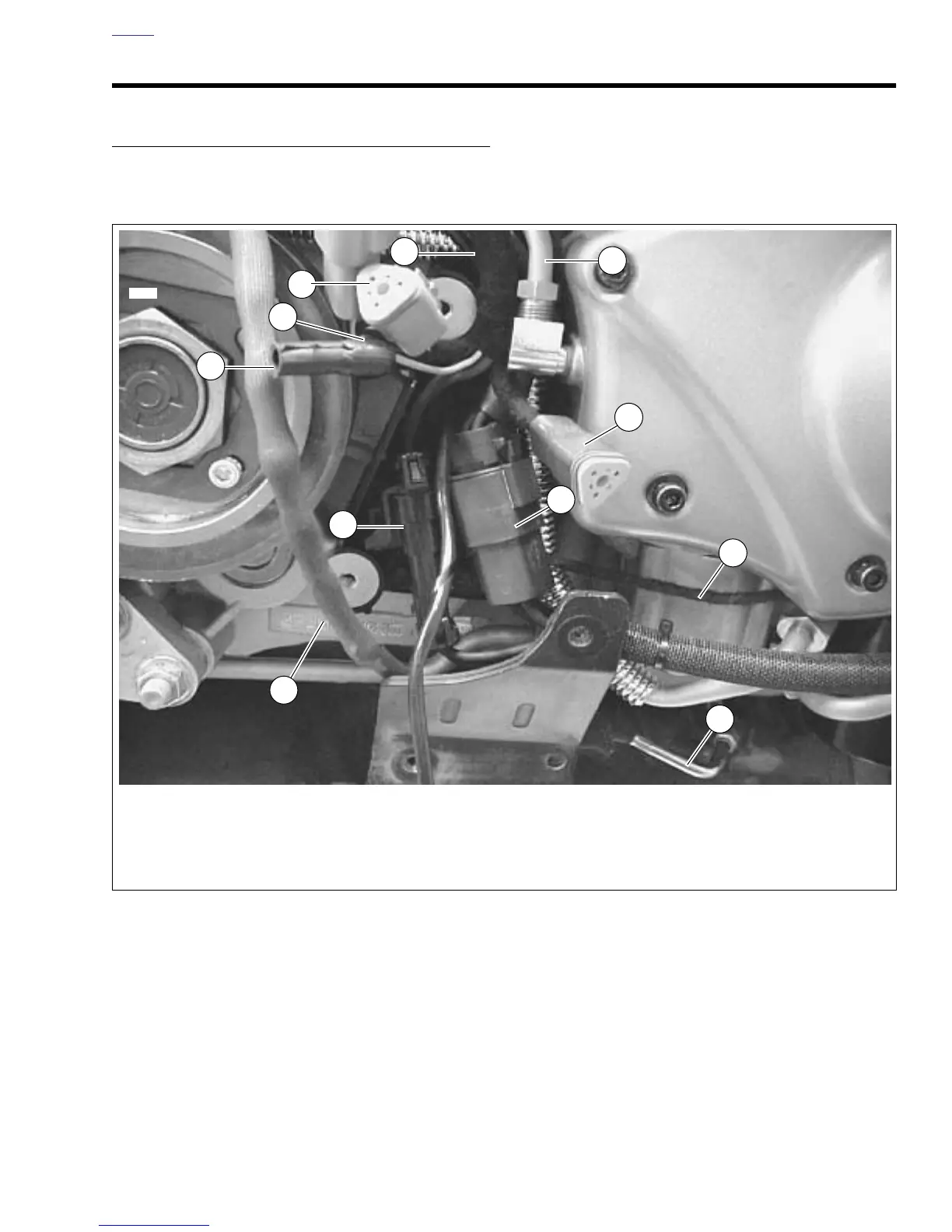

Figure 7-100. Sprocket Cover Wiring and Connections
1. Voltage regulator connector [77]
2. Neutral switch connector [131]
3. Neutral switch location
4. Vehicle speed sensor connector [65]
5. Main harness
6. Gear cover vent line
7. Cam position sensor connector [14]
8. Stator connector [46]
9. Oil pressure switch wiring
10. Interactive exhaust cable
4
11993
5
7
10
1
2
3
6
10
9
8
