2006 Buell Lightning: Drive/Transmission 6-51
HOME
SHIFTER SHAFT 6.15
INSTALLATION

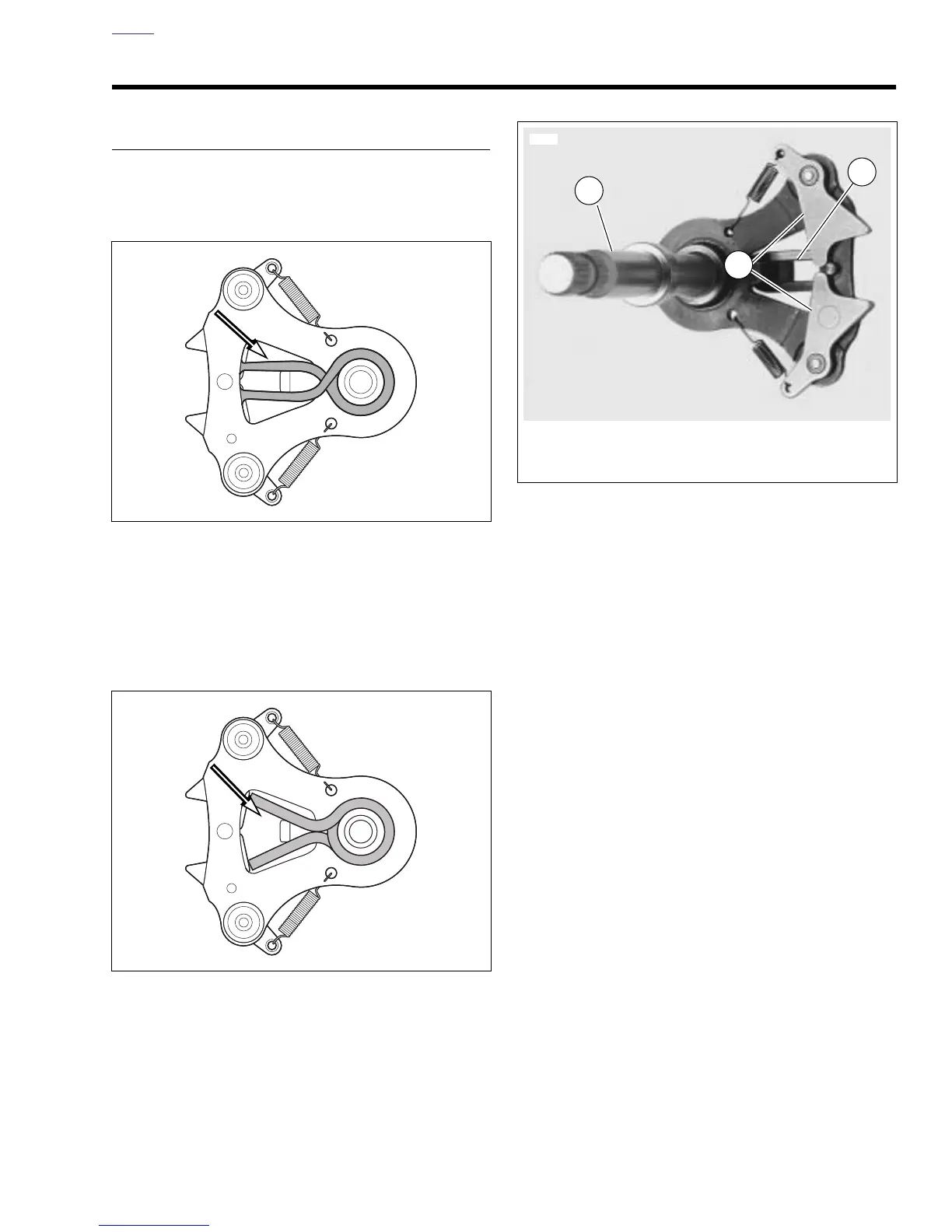

1. See Figure 6-95. Correctly install shifter return spring
onto the reverse side of the shifter shaft assembly before
placing shaft in left crankcase half.
NOTE
See Figure 6-96. The shifter shaft return spring can be
installed incorrectly and then assembled in the left crankcase
half. Failure to install the spring properly will result in
improper shifting.
Figure 6-95. Shifter Shaft Return Spring
(Correctly Installed)
Figure 6-96. Shifter Shaft Return Spring
(Incorrectly Installed)
b0950x6x
b0951x6x
Figure 6-97. Shifter Shaft Assembly
1. Shifter shaft
2. Return spring
3. Ratchet arms
1
11462
3
2
