2-12 2006 Buell Lightning: Chassis
HOME
DISASSEMBLY
Bearing Removal
NOTE
On single disc wheels, always remove the brake disc side
bearing first.
1. See Figure 2-7. Remove wheel bearings using WHEEL
BEARING REMOVER/INSTALLER KIT (Part No. B-
43993-50) and WHEEL BEARING REMOVER AND
INSTALLER (Part No. HD-44060).
2. Sparingly apply EXTREME PRESSURE LUBRICANT
(Part No. J-23444-A) to the threads of the short forcing
screw (1) to prolong service life and ensure smooth oper-
ation.
3. Assemble the short forcing screw (1), nut (2), Nice bear-
ing (3), washer (4) and bridge (5) from the WHEEL
BEARING INSTALLER/REMOVER (Part No.HD-44060).
4. See Figure 2-8. Insert the FRONT WHEEL BEARING
REMOVER COLLET (Part No. B-43993-7, from kit Part
No. B-43993-50) into the wheel bearing until it fully seats
against the bearing.
5. Insert the ball bearing into the collet.
6. See Figure 2-9. Thread the puller assembly (1) into the
collet (2).
7. Hold the collet (2), and turn the forcing screw (3) to
expand the collet.
8. See Figure 2-10. Place the bridge (1) against the wheel
hub.
9. Hold the forcing screw (2), and turn the nut (3) clockwise
until the bearing is free of the hub.

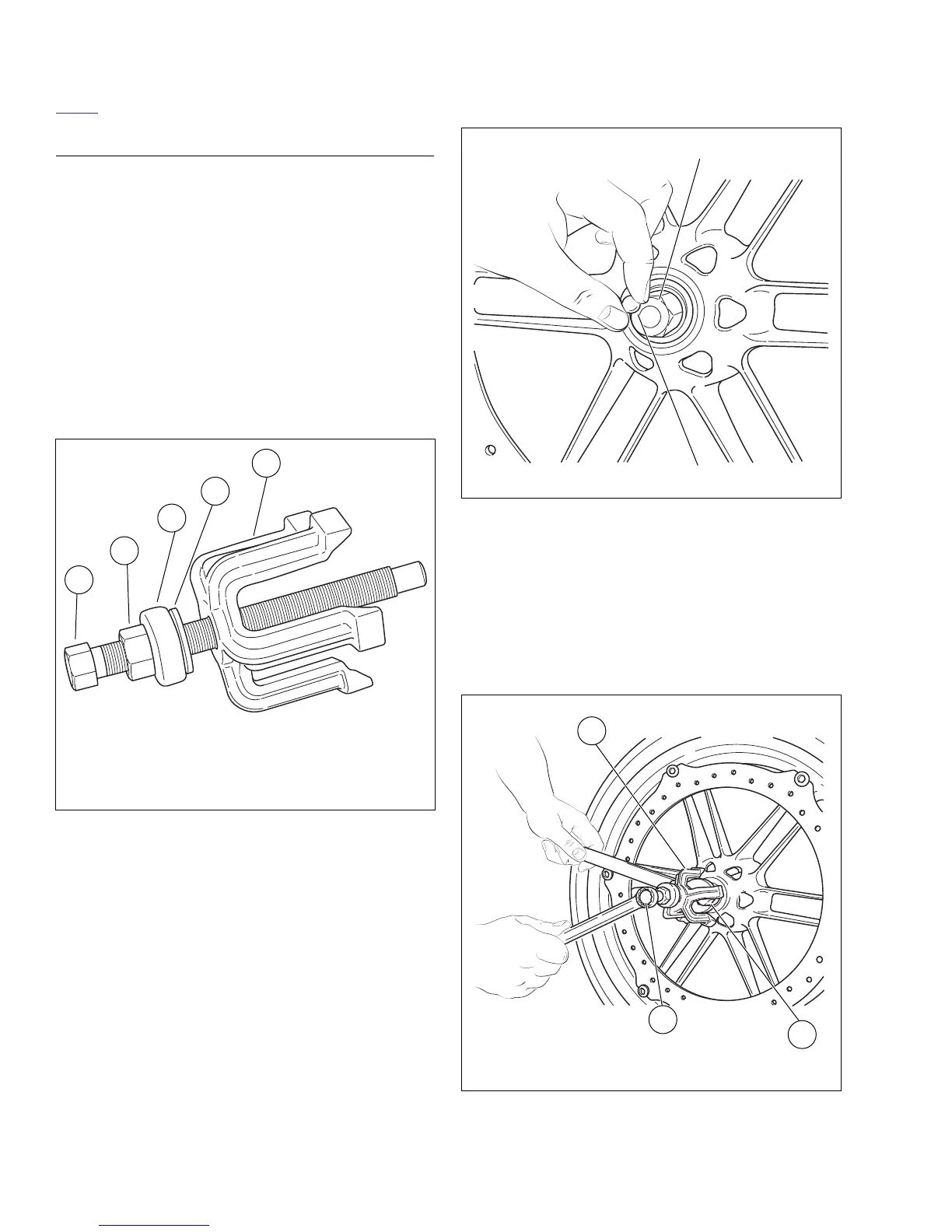

Figure 2-7. Assemble Puller
i04277
1. Short forcing screw
2. Nut
3. Nice bearing
4. Washer
5. Bridge
3
1
2
4
5
Figure 2-8. Install Collet and Ball Bearing
Figure 2-9. Expand the Collet
i04276
Ball bearing
Collet
i04278
1
2
1. Puller assembly
2. Collet
3. Forcing screw
3
