2006 Buell Lightning: Chassis 2-19
HOME

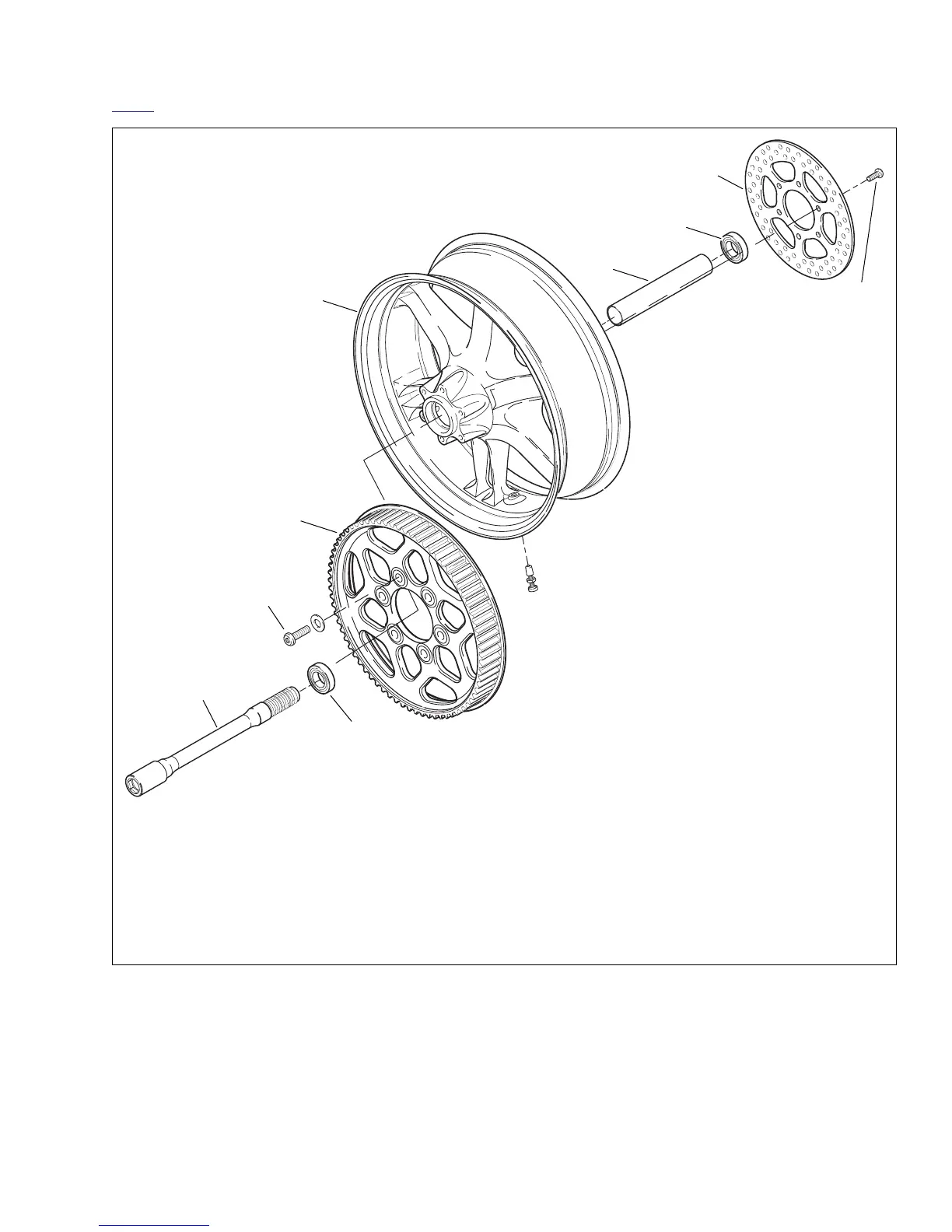

Figure 2-23. Rear Wheel Assembly
1. Rotor mounting fastener (6)
2. Brake rotor
3. Wheel bearing (2)
4. Wheel spacer
5. Wheel
6. Sprocket
7. Sprocket fastener (6)
8. Axle
b0936x2x
