3. Install internal seal on lip of socket housing, if removed.
Insert tapered end of secondary locking wedge into
socket housing and press down until it snaps in place.
The wedge fits into the center groove within the socket
housing and holds the terminal latches tightly closed.
NOTES
● While rectangular wedges do not require a special orien-
tation, the conical secondary locking wedge of the 3-pin
connector must be installed with the arrow pointing
toward the external latch. See Figure B-9.
●
If the secondary locking wedge does not slide into the
installed position easily, verify that all terminals are fully
installed in the socket housing. The lock indicates when
terminals are not properly installed by not entering its
fully installed position.
REMOVING/INSTALLING PINS
1. Remove the secondary locking wedge. Use the hooked
end of a stiff piece of mechanics wire a needle nose pli-
ers, or a suitable pick tool (Part No. HD-41475-100). See
Figure B-10.
2. Gently depress terminal latches inside pin housing and
back out pins through holes in wire seal.

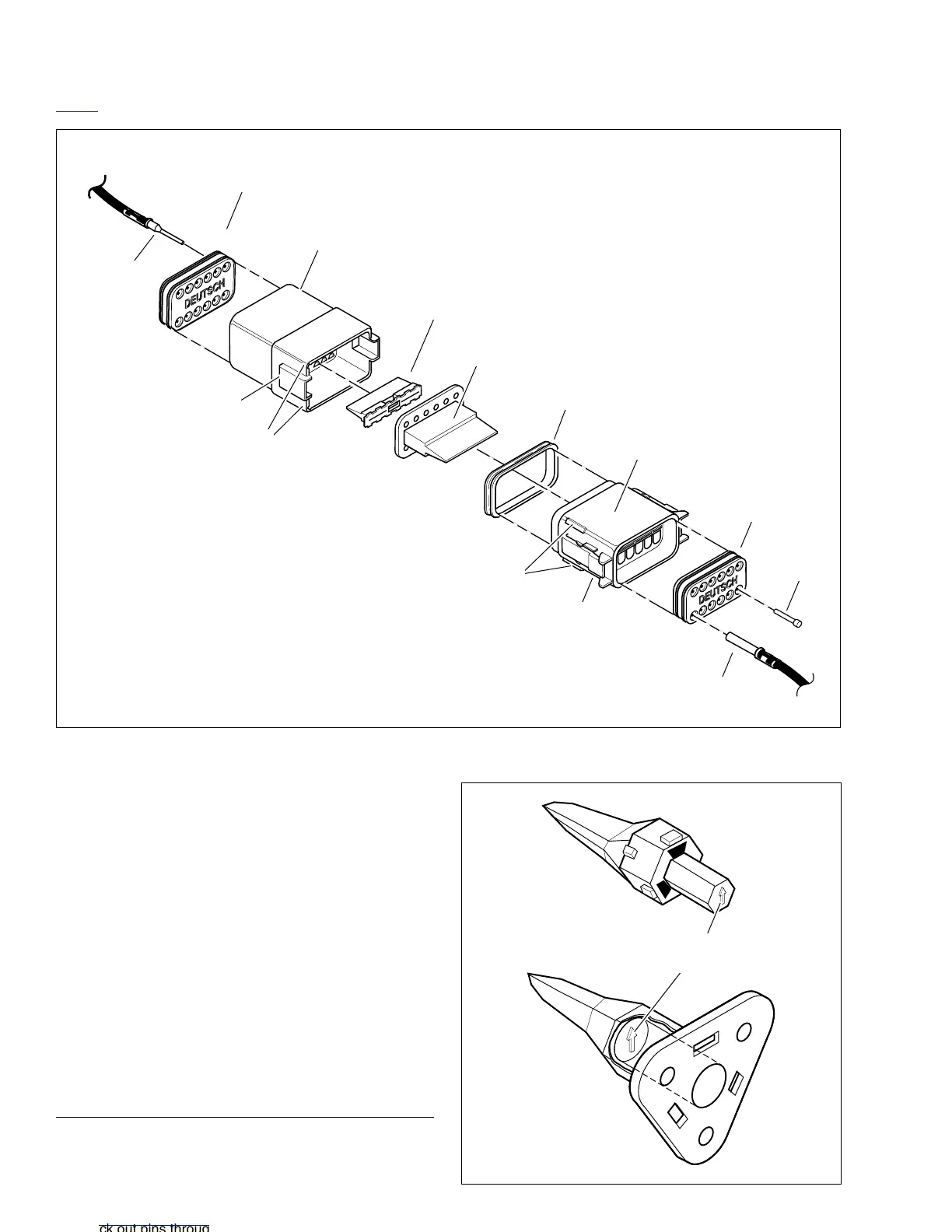

Figure B-8. 12-pin Deutsch Connector (Exploded View)
Wire seal
Pin housing
Locking wedge
Locking wedge
Internal seal
Socket housing
Wire seal
Socket terminal
Seal pin
External latch
Alignment tabs
Alignment grooves
Pin
terminal
Latch cover
d0248x8x
Figure B-9. Depress Terminal Latches/Back Out Pins
Pin
housing
Socket
housing
Arrow points to
external latch
d0249x3x
