2006 Buell Lightning: Chassis 2-95
HOME

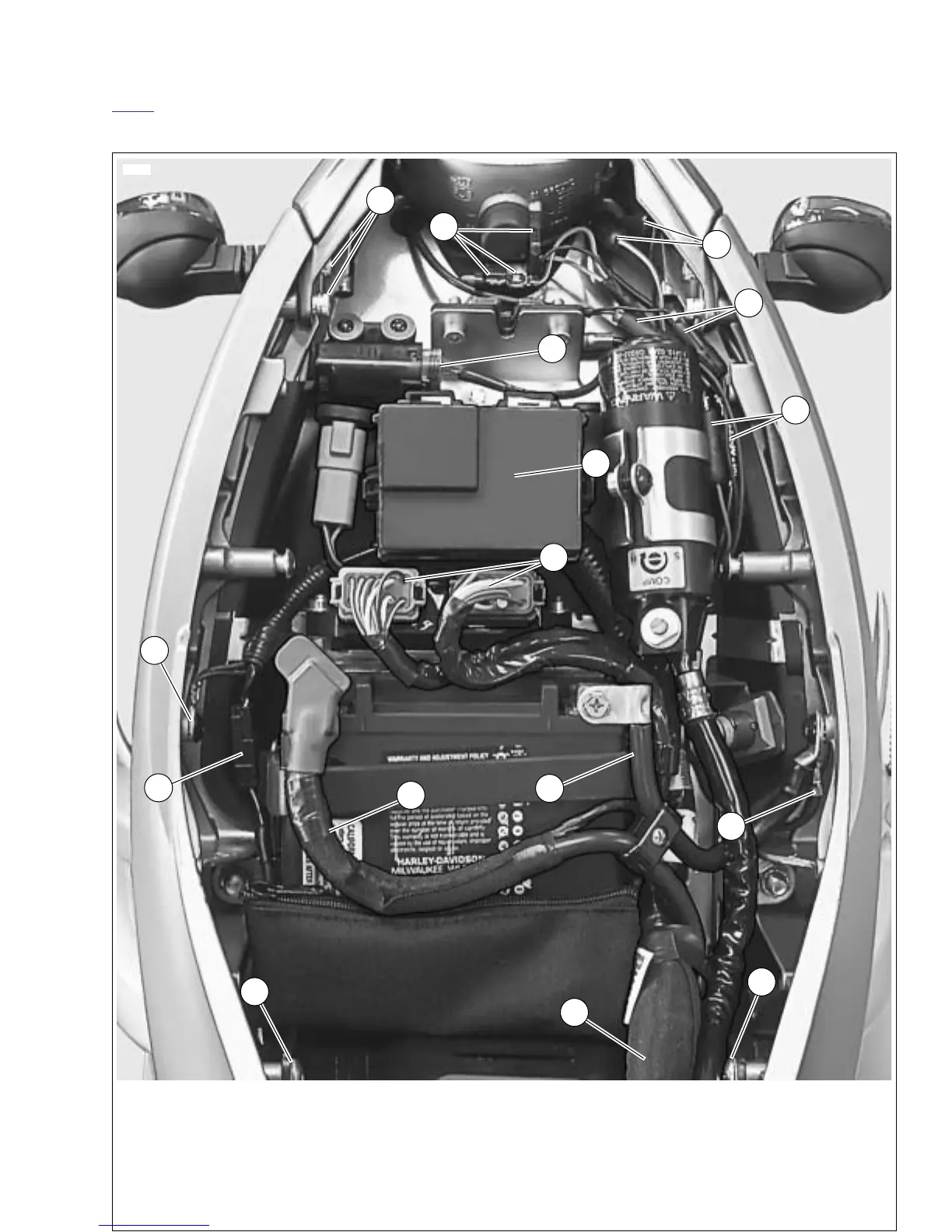

Figure 2-123. Main Harness and Electrical Connectors Under Seat (Typical)
3
4
12
11
9
13
8
7
2
1
1. Main harness
2. Main harness ground wire [GRD 2]
3. Battery ground cable
4. Battery positive cable
5. Rear brake light switch connector [121]
6. Ground terminals [GRD1] & [GRD 3]
7. ECM connectors [10] & [11]
8. Fuse block and relay center
9. BAS (bank angle sensor) connector [134]
10. Left turn signal connector [18]
11. Right turn signal connector [19]
12. License plate lamp connector [45]
13. Tail light connectors [93]
14. Left and right front trunk pan fasteners (2)
15. Left rear and right rear tail section fasteners (4)
6
8907
5
10
14
14
15
