3-10 2006 Buell Lightning: Engine
HOME
13. Disconnect and remove air scoops, right and left sides.
14. Remove transmission sprocket side cover .
15. Remove rear belt and idler pulley . See 6.6 DRIVE BELT
SYSTEM.
NOTE
For 1200 models with interactive exhaust systems see 7.6
INTERACTIVE EXHAUST SYSTEM (XB12 MODELS) for
specific details on removal of interactive components.
16. See Figure 3-3. Remove muffler: see 2.31 EXHAUST
SYSTEM.
a. Remove front muffler strap (8).
b. Remove rear muffler straps (13).
c. Loosen Torca clamp (1) and remove muffler (14).
d. Loosen front muffler mount (2).

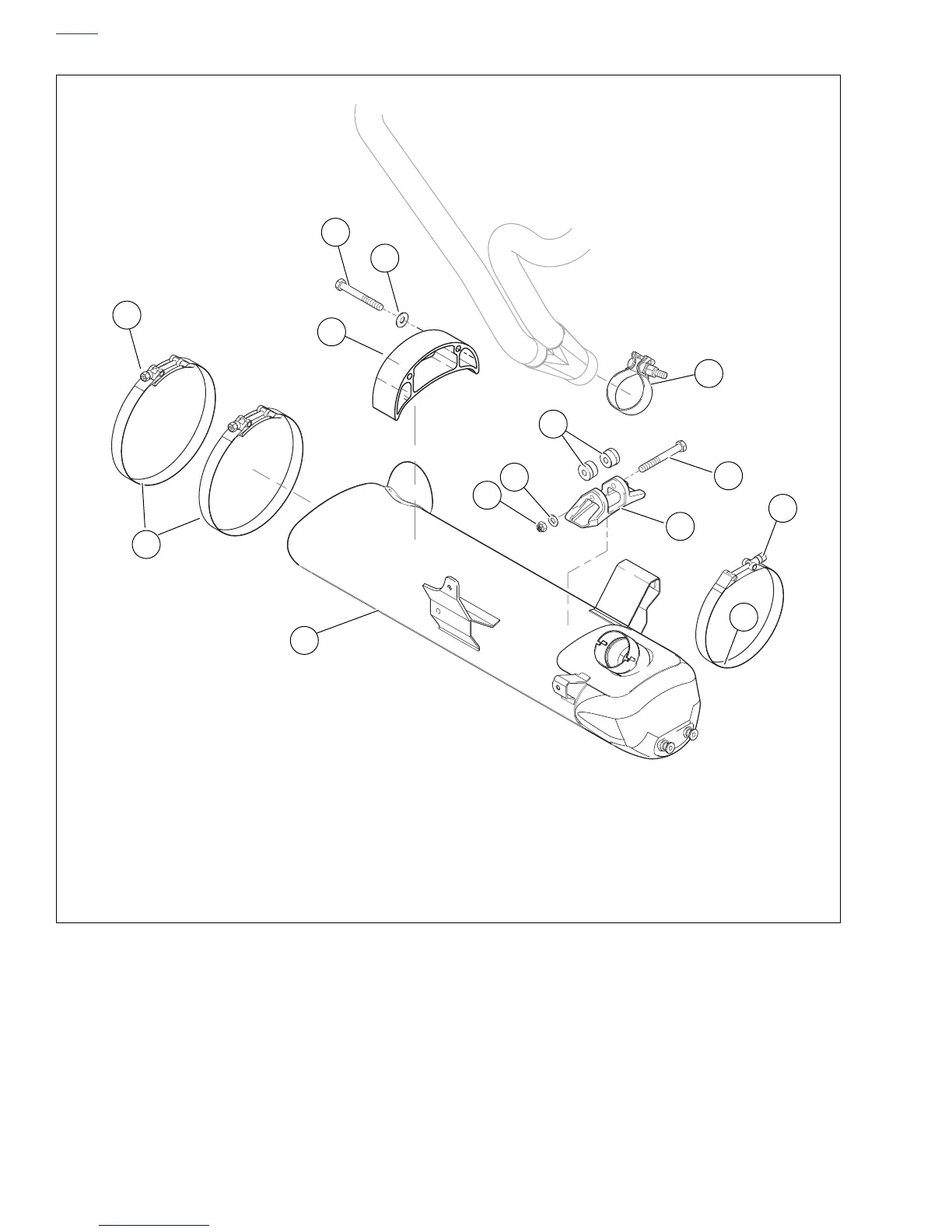

Figure 3-3. Muffler and Mounting System (XB9SX Model)
1. Torca clamp
2. Front muffler mount
3. Front muffler mount fastener (1)
4. Front muffler mount bushings (2)
5. Front muffler mount washer (1)
6. Front muffler mount nut (1)
7. Front muffler strap fastener
8. Front muffler strap
9. Rear muffler bracket
10. Rear muffler bracket screw (2)
11. Flat washer (2)
12. Rear muffler strap fastener
13. Rear Muffler strap, rear (2)
14. Muffler
11
9
14
8
2
1
13
3
10
b0986
x
3
x
12
7
4
5
6
