11. Connect the following sensors:
a. Temperature sensor (3) [90].
b. Oxygen sensor (4) [137].
12. See Figure 3-11. Install the ignition coil and connect (2)
[83] and tighten fasteners to 120-144 in-lbs (13.6-16.3
Nm).

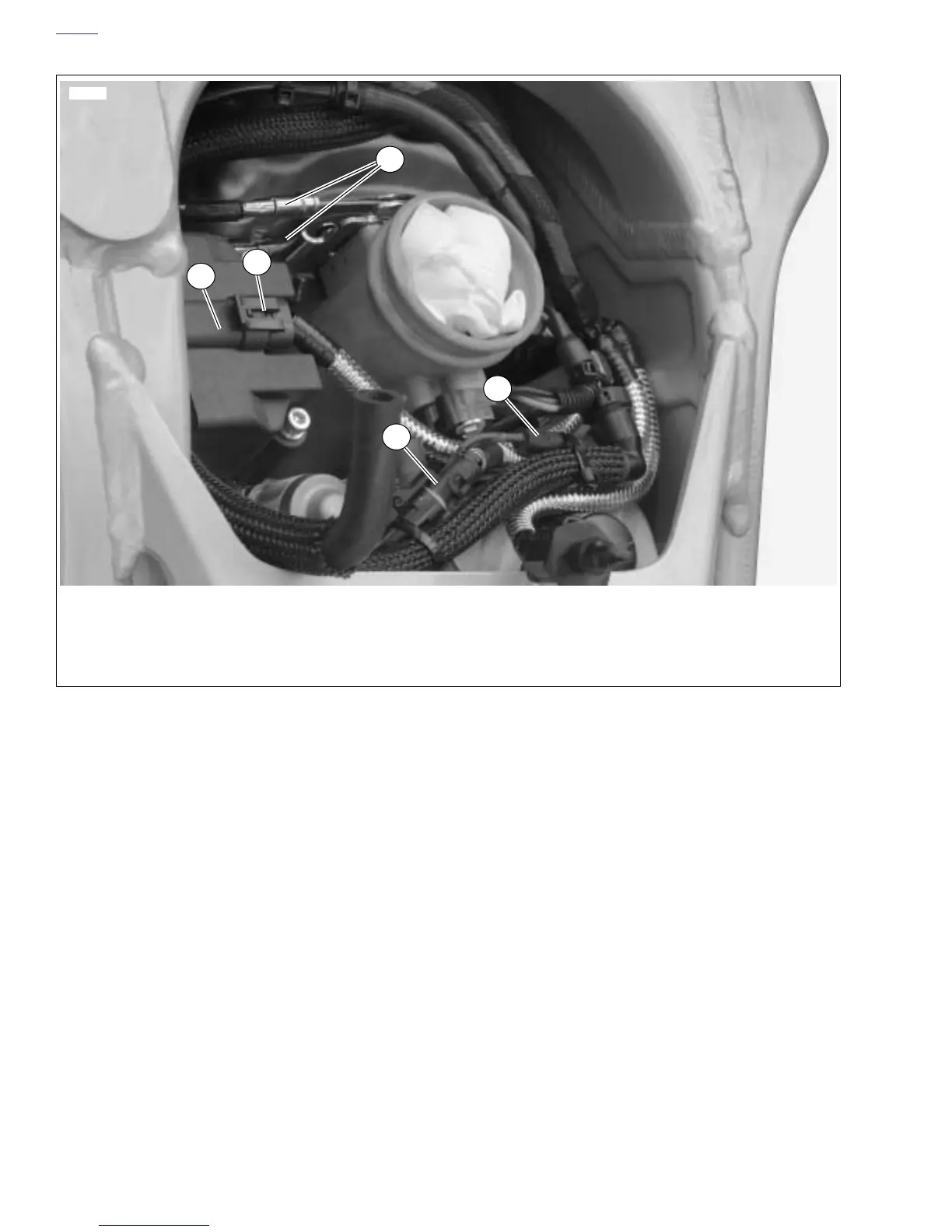

Figure 3-11. Electrical Connections and Throttle Cables (Typical)
1. Ignition coil
2. Coil connection [83]
3. Cylinder head temperature sensor connection [90]
4. Oxygen sensor connection [137]
5. Throttle cables
5
3
2
1
10647
4
