20. See Figure 3-45. Install rear muffler bracket and torque
to 32-36 ft-lbs (43.4-48.8 Nm).
21. Install front muffler mount and leave loose at this time.
NOTES
● DO NOT install muffler at this time. It is necessary to
install muffler mounts first in order to properly install feed
oil line.
● At this point it will be necessary to install the oil lines. It is
important to follow this procedure to ensure correct ori-
entation of oil lines in order to establish the proper clear-
ances needed between the oil lines and varied
components on the vehicle.

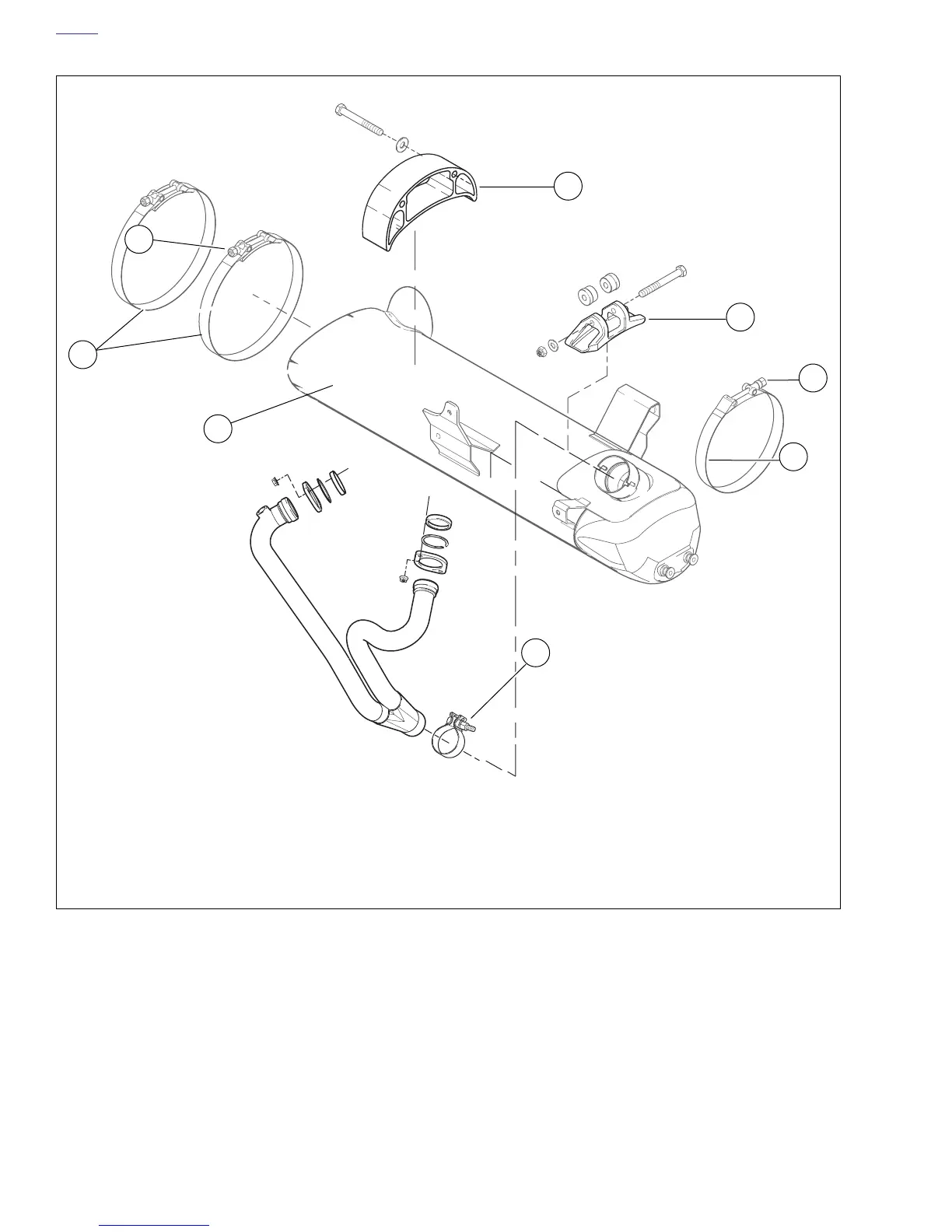

Figure 3-45. Muffler Mounting System
b0986x3a
1. Clamp, Torca
2. Muffler
3. Muffler strap, front
4. Front muffler strap fastener
5. Front muffler mount
6. Rear muffler bracket
7. Rear muffler strap fastener
8. Muffler strap, rear (2)
1
4
6
5
2
3
7
8
