2006 Buell Lightning: Engine 3-47
HOME

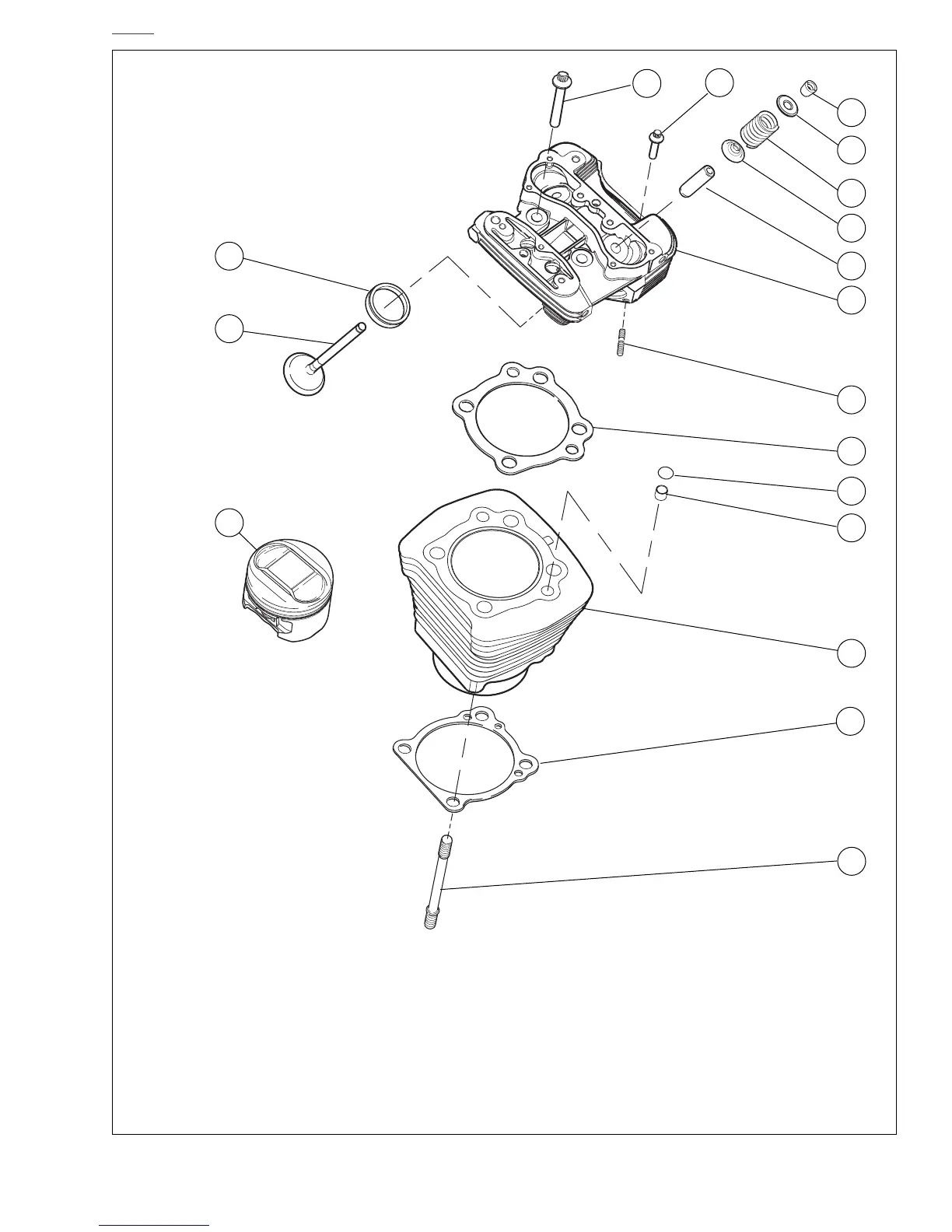

Figure 3-62. Cylinder Head, Cylinder and Piston Assembly
2
b1024x3x
3
4
5
6
7
8
12
9
10
11
13
13
16
17
1
14
15
1. Screw
2. Screw
3. Valve collar retainer
4. Upper valve spring collar
5. Valve spring
6. Valve seal and lower valve spring
collar assembly
7. Valve guide intake & exhaust (2)
8. Cylinder head
9. Exhaust port stud
10. Cylinder head gasket
11. Cylinder O-ring (4)
12. Cylinder insert
13. Cylinder w/piston & rings
14. Cylinder base gasket
15. Cylinder base stud
16. Exhaust valve
17. Exhaust valve seat
