2006 Buell Lightning: Engine 3-51
HOME
Replacing Rocker Arm Bushings
1. See Figure 3-70. To replace worn bushings, press or
drive them from the rocker arm. If bushing is difficult to
remove, turn a 9/16-18 tap into bushing. From opposite
side of rocker arm, press out bushing and tap using a
discarded rocker arm shaft.
2. Press replacement bushing into rocker arm, flush with
arm end, and split portion of bushing towards top of arm.
3. Using remaining old bushing as a pilot, line ream new
bushing with ROCKER ARM BUSHING REAMER (Part
No. HD-94804-57).
4. Repeat for other end of rocker arm.

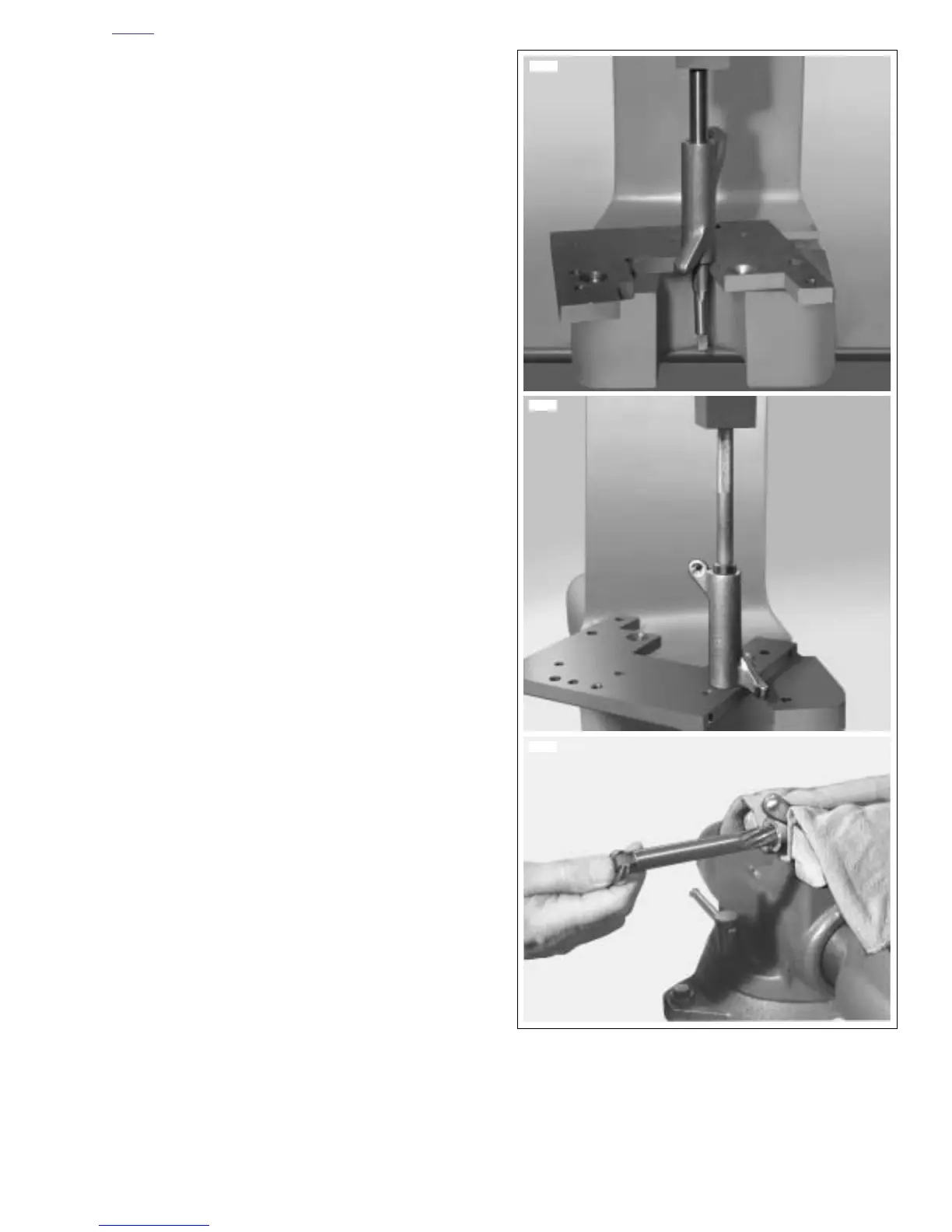

Figure 3-70. Replacing Rocker Arm Bushings
8732
8733
8734
