3-102 2006 Buell Lightning: Engine
HOME
ASSEMBLY
Crankcase Halves
NOTE
Lubricate all parts with Harley-Davidson 20W50 engine oil,
and proceed as follows:
1. See Figure 3-151. Using CRANKCASE BEARING
REMOVER/INSTALLER (Part No. B-45655, HD-42720-2
and HD-46663), install sprocket shaft bearing into left
crankcase half from the inside.
NOTE
Make sure that the bearing assembly bottoms against the
machined shoulder in the left crankcase half.
2. Install new bearing retaining ring in left crankcase half.
3. Install transmission. See 6.14 TRANSMISSION INSTAL-
LATION.

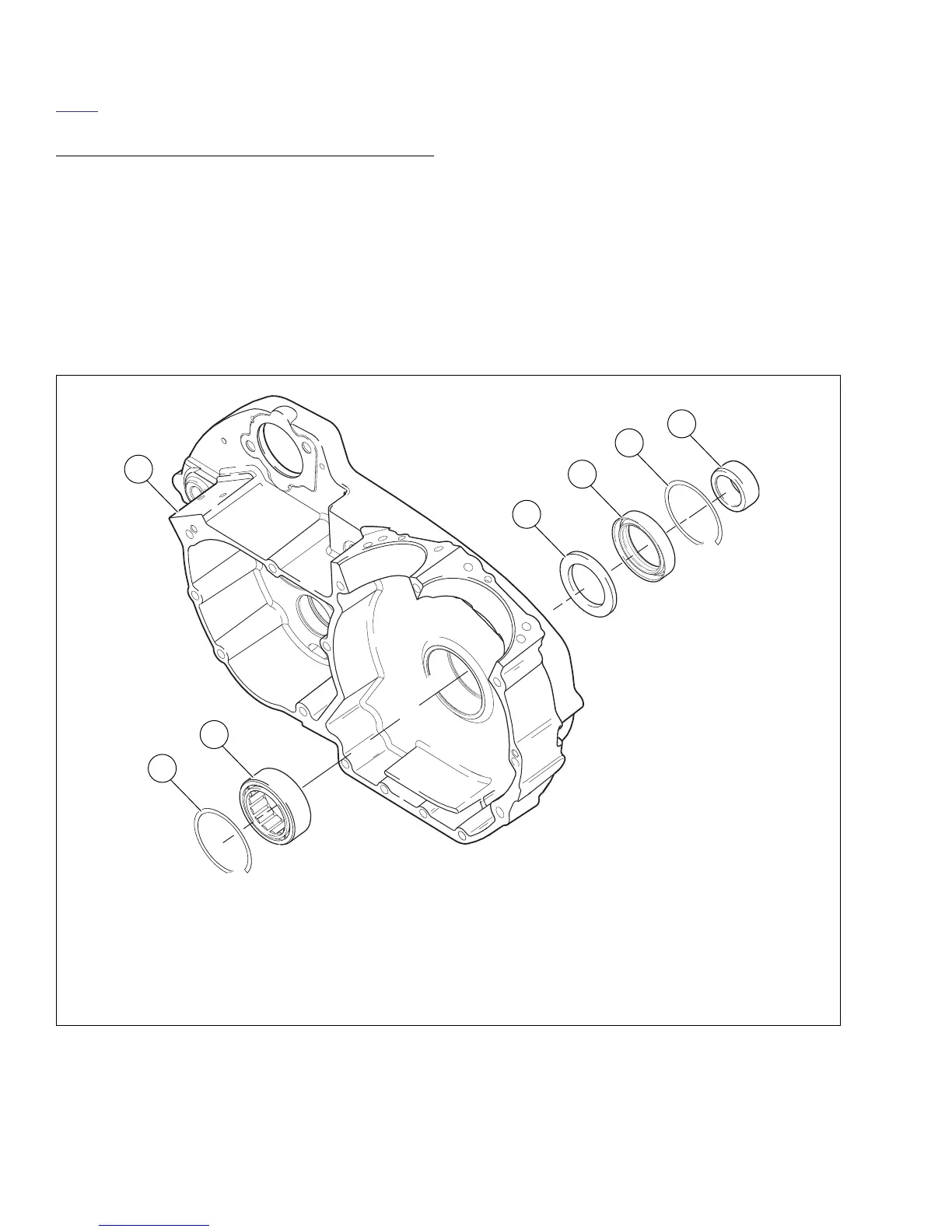

Figure 3-150. Sprocket Shaft Bearing Assembly
7
1
3
4
6
b1046a3x
5
2
1. Spacer, sprocket shaft
2. Retaining ring, oil seal
3. Oil seal
4. Thrust washer
5. Crankcase half
6. Bearing
7. Bearing retaining ring
