4-24 2006 Buell Lightning: Fuel System
HOME
5. Access fuel injectors.
a. Remove right side air scoop. See 2.38 AIR
SCOOPS.
b. Remove air cleaner assembly to access fuel injec-
tors. See 4.44 AIR CLEANER ASSEMBLY.
6. See Figure 4-21. Plug IGNITION COIL CIRCUIT TEST
ADAPTER (Part No. 34730-2C) into Breakout Box. Note
that cranking the engine with test lamp in place of the
ignition coil can sometimes cause a code 24 or 25. This
condition is normal and does not by itself indicate a mal-
function. Codes must be cleared if this condition occurs.
7. Use HARNESS CONNECTOR TEST KIT (Part No. HD-
41404) gray pin probe and patch cord.

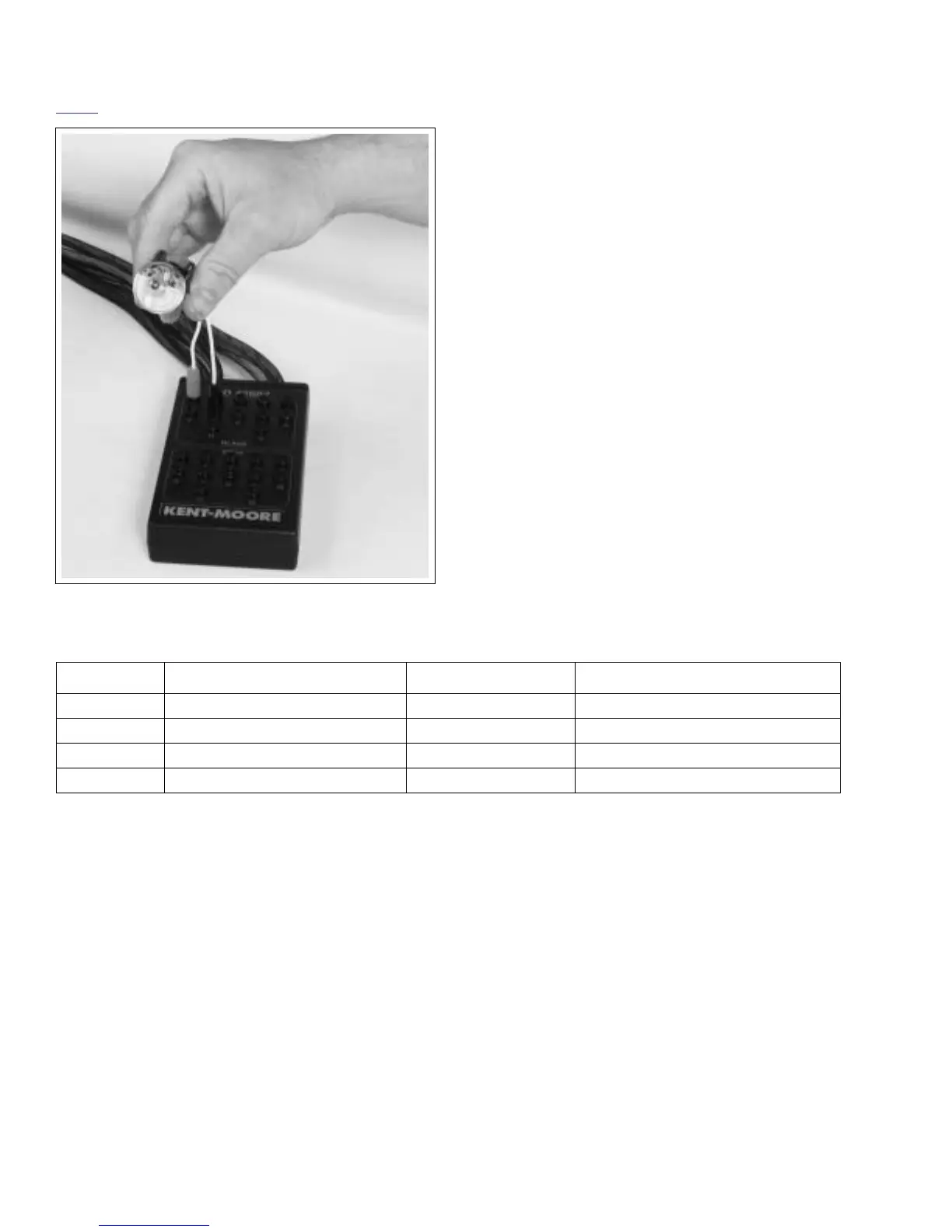

Figure 4-21. Ignition Coil Circuit Test
10561
Table 4-12. Wire Harness Connectors in Figure 4-22.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
[11] ECM (gray) 12-place Deutsch under seat
[14] cam position sensor 3-place Deutsch under sprocket cover
[83] ignition coil 3-place Amp beneath air cleaner baseplate
