4-44 2006 Buell Lightning: Fuel System
HOME

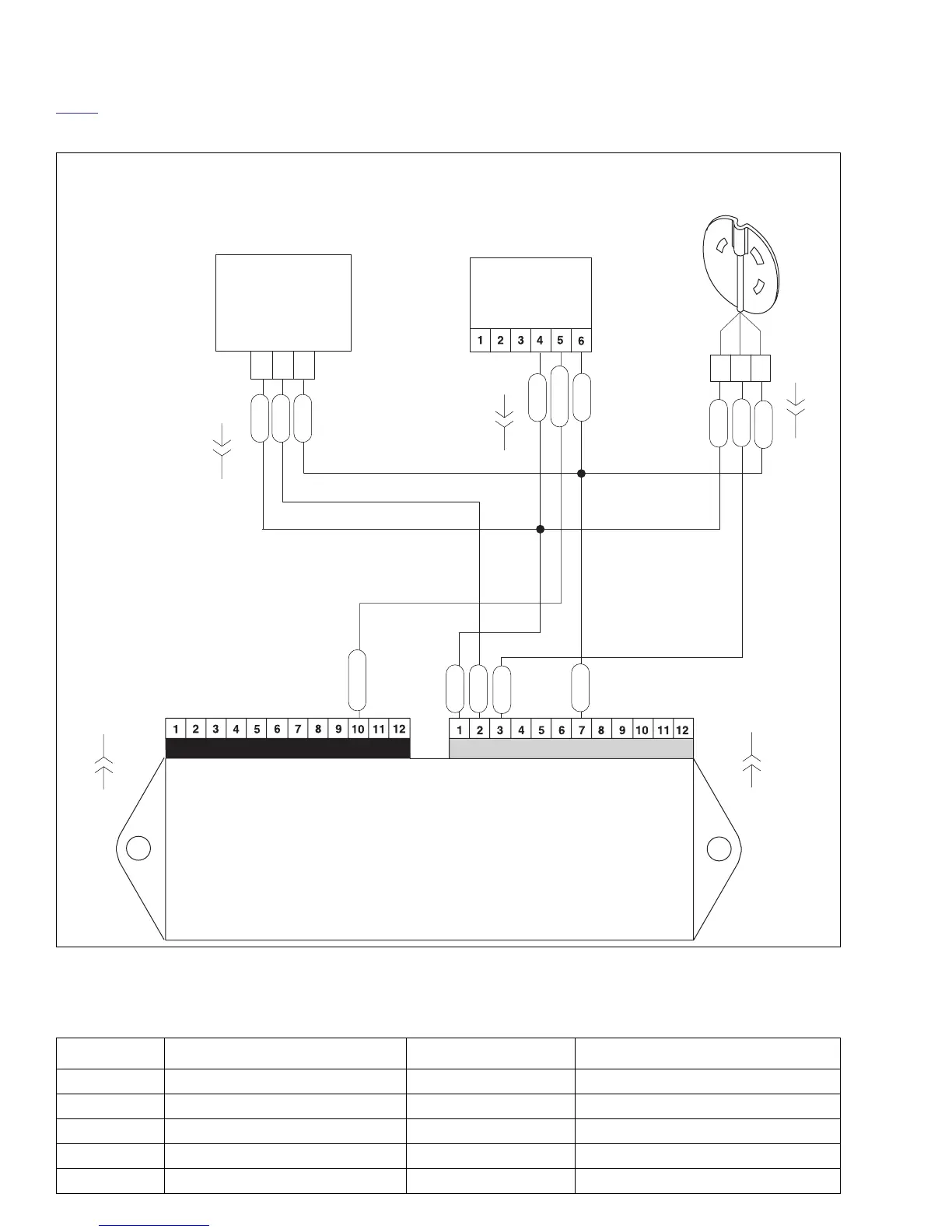

Figure 4-34. Throttle Position Sensor Circuit
A
B
C
C
BA
Throttle
Position
Sensor
R/W
V/Y
BK/W
R/W
BK/W
GN/W
Cam Position
Sensor
R/W = 5 Volt Reference
V/Y = TP Sensor Signal
BK/W = Sensor Ground
R/W
V/Y
GN/W
BK/W
Electronic Control Module
(ECM)
Connector
Connector
LTGN/GY
R/W = 5 Volt Reference
Lt.GN/GY = BAS Signal
BK/W = Sensor Ground
Bank Angle
Sensor
BK/W
R/W
LTGN/GY
b1112a4x
[10B]
[11B]
[10A]
[11A]
[88B]
[88A]
[134A]
[134B]
[14A]
[14B]
Table 4-18. Wire Harness Connectors in Figure 4-34.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
[11] ECM (gray) 12-place Deutsch under seat
[14] cam position sensor 3-place Deutsch under sprocket cover
[88] throttle position sensor 3-place Packard right side of engine between cylinders
[134] bank angle sensor 6-place Sumitomo under seat
