2006 Buell Lightning: Fuel System 4-53
HOME

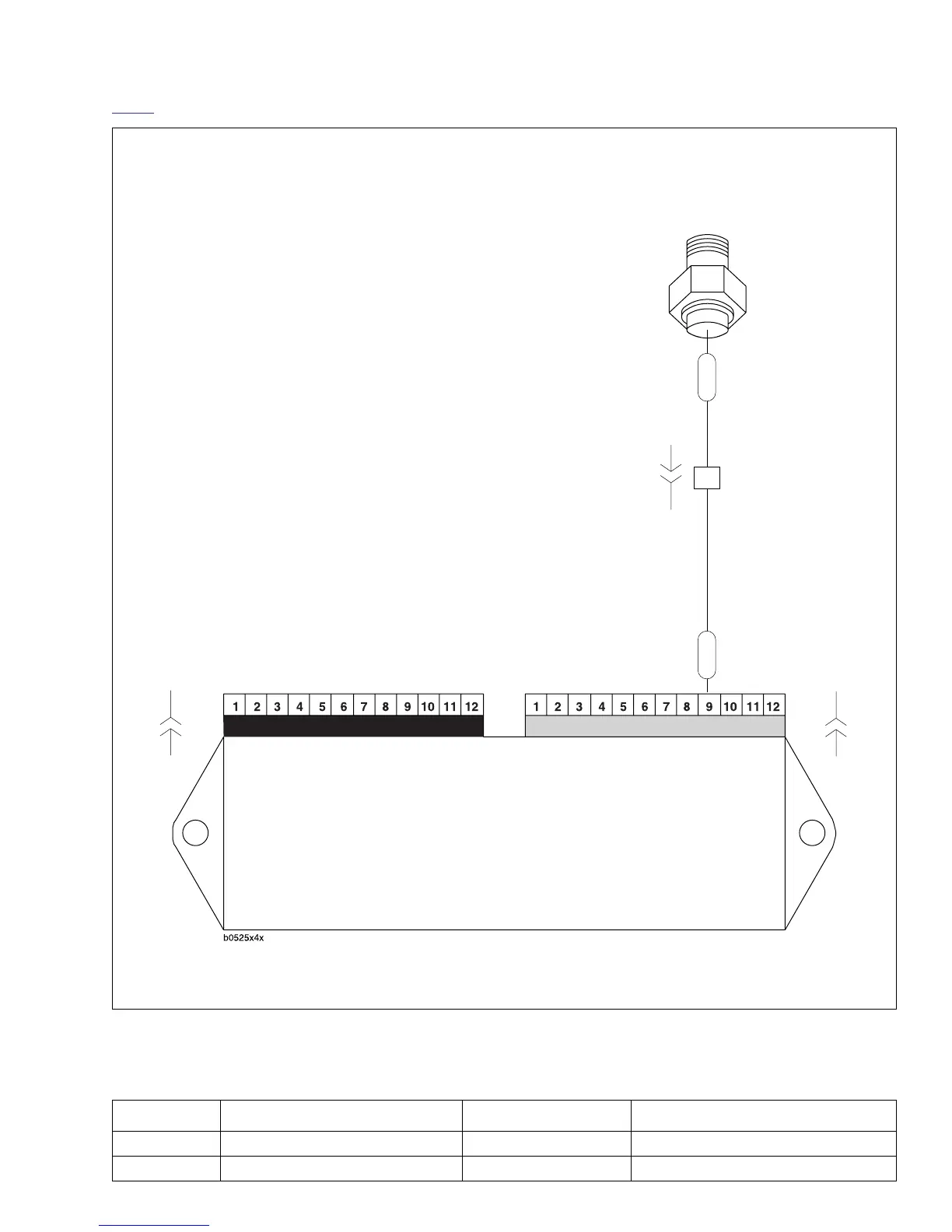

Figure 4-39. Engine Temperature Sensor Circuit
b0529x4x
Engine
Temperature
Sensor
PK/Y
Electronic Control Module
(ECM)
Connector Connector
PK/Y
1
[90A]
[90B]
[10B]
[10A]
[11B]
[11A]
Table 4-21. Wire Harness Connectors in Figure 4-39.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under seat
[90] engine temperature sensor 1-place bullet beneath air cleaner assembly baseplate
