2006 Buell Lightning: Fuel System 4-57
HOME

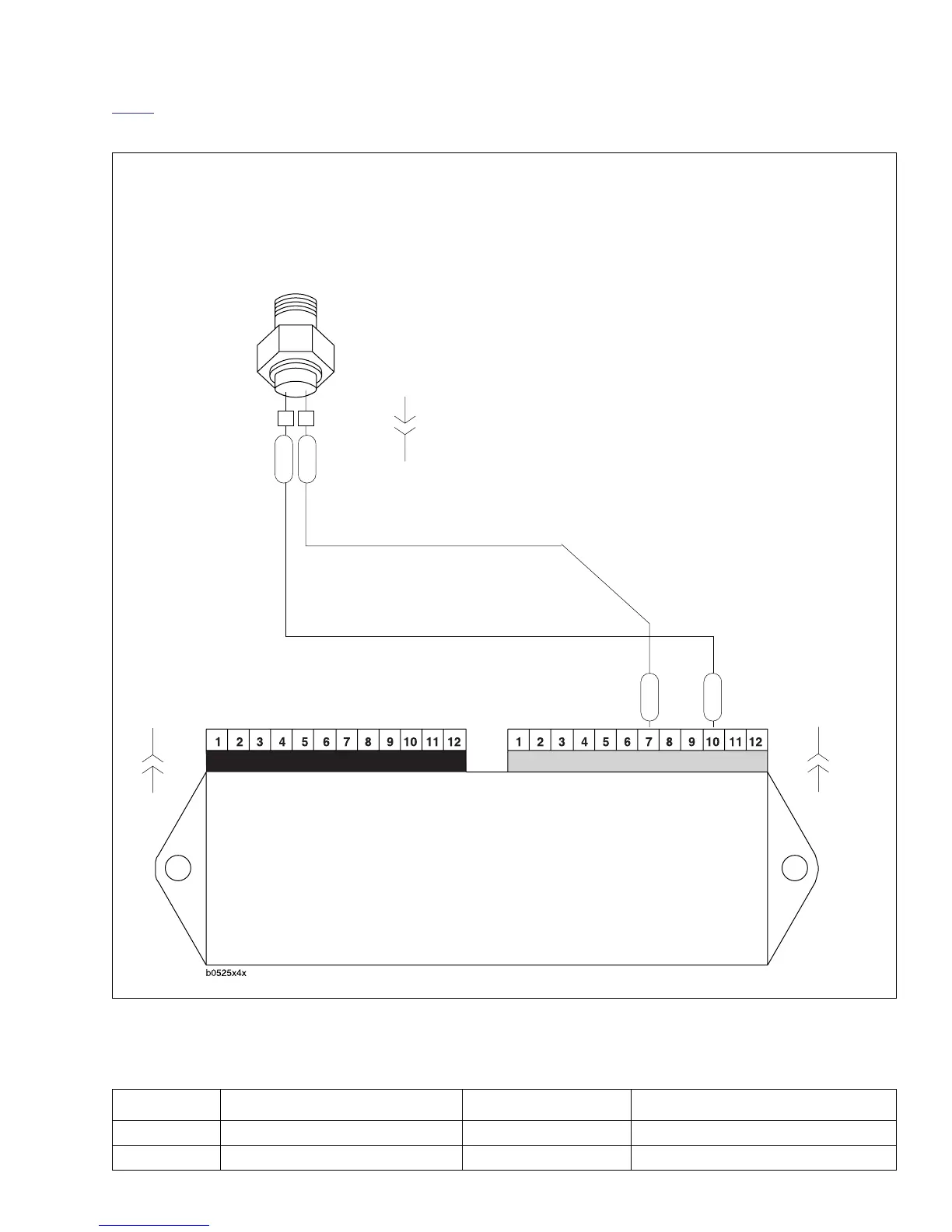

Figure 4-41. Intake Air Temperature Sensor Circuit
b0529x4x
BK/W
Electronic Control Module
(ECM)
Connector Connector
Lt GN/Y
Intake Air
Temperature
Sensor [89]
Lt GN/Y = 5 volt reference and sensor signal
BK/W = sensor ground
1 2
BK/W
Lt GN/Y
[P89B]
[P89A]
[10B]
[10A]
[11B]
[11A]
Table 4-23. Wire Harness Connectors in Figure 4-41.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under seat
[89] intake air temperature sensor 2-place Amp in air cleaner assembly baseplate
