Buell 2006LIGHTNING MODELS User Manual

4-68 2006 Buell Lightning: Fuel System
HOME

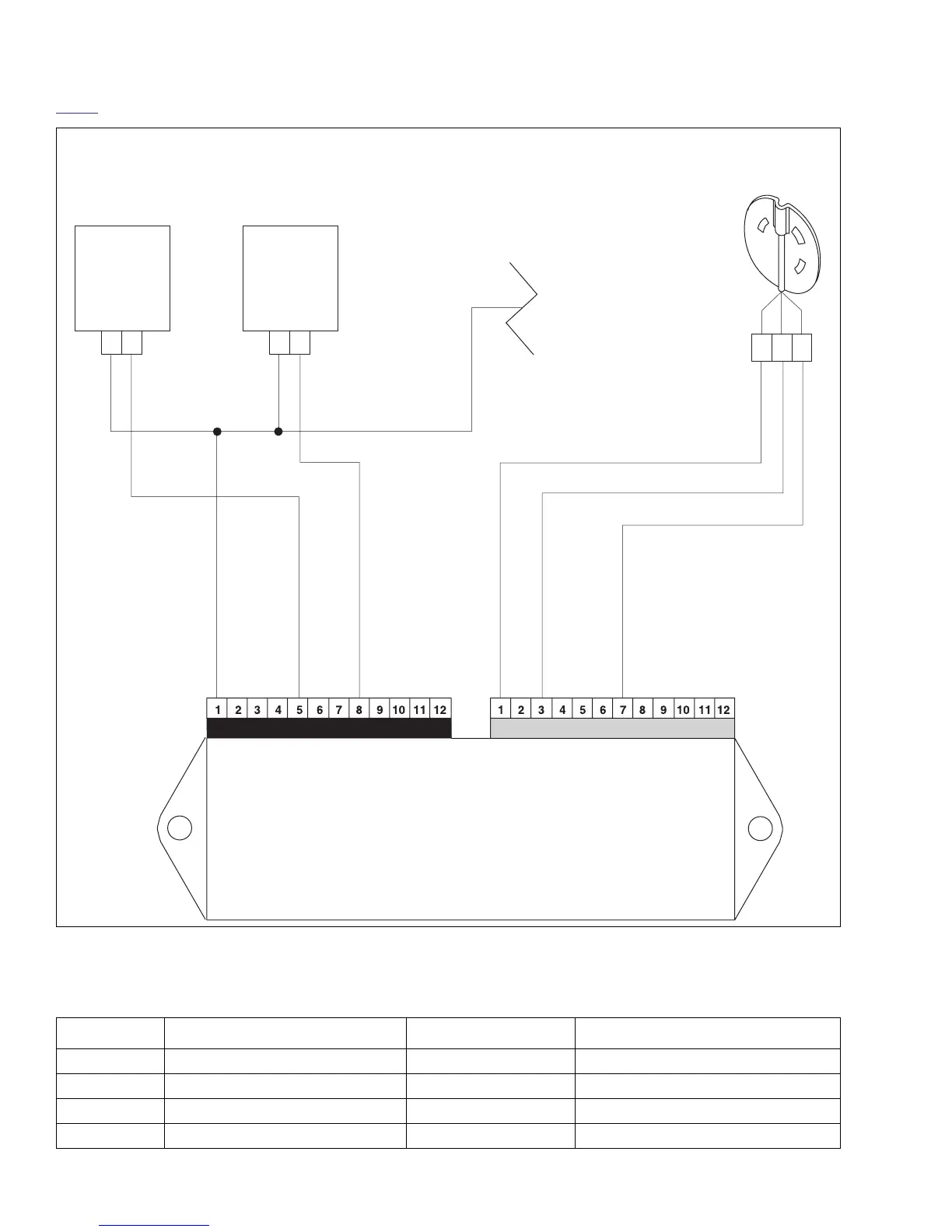

Figure 4-49. Interactive Exhaust Circuit
Connector [10]
Connector [11]
b1073x4x
Electronic Control Module
(ECM)
To Ignition
Relay
Front
Injector
[84]
Rear
Injector
[85]
Cam Position
Sensor [14]
Table 4-25. Wire Harness Connectors in Figure 4-49.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
[161] Interactive muffler actuator 4-place Deutsch under intake cover assembly
[164] ECM 1-place Amp under seat
[165] sub-harness 3-place Packard beneath air cleaner assembly baseplate
