Buell 2006LIGHTNING MODELS User Manual

4-96 2006 Buell Lightning: Fuel System
HOME

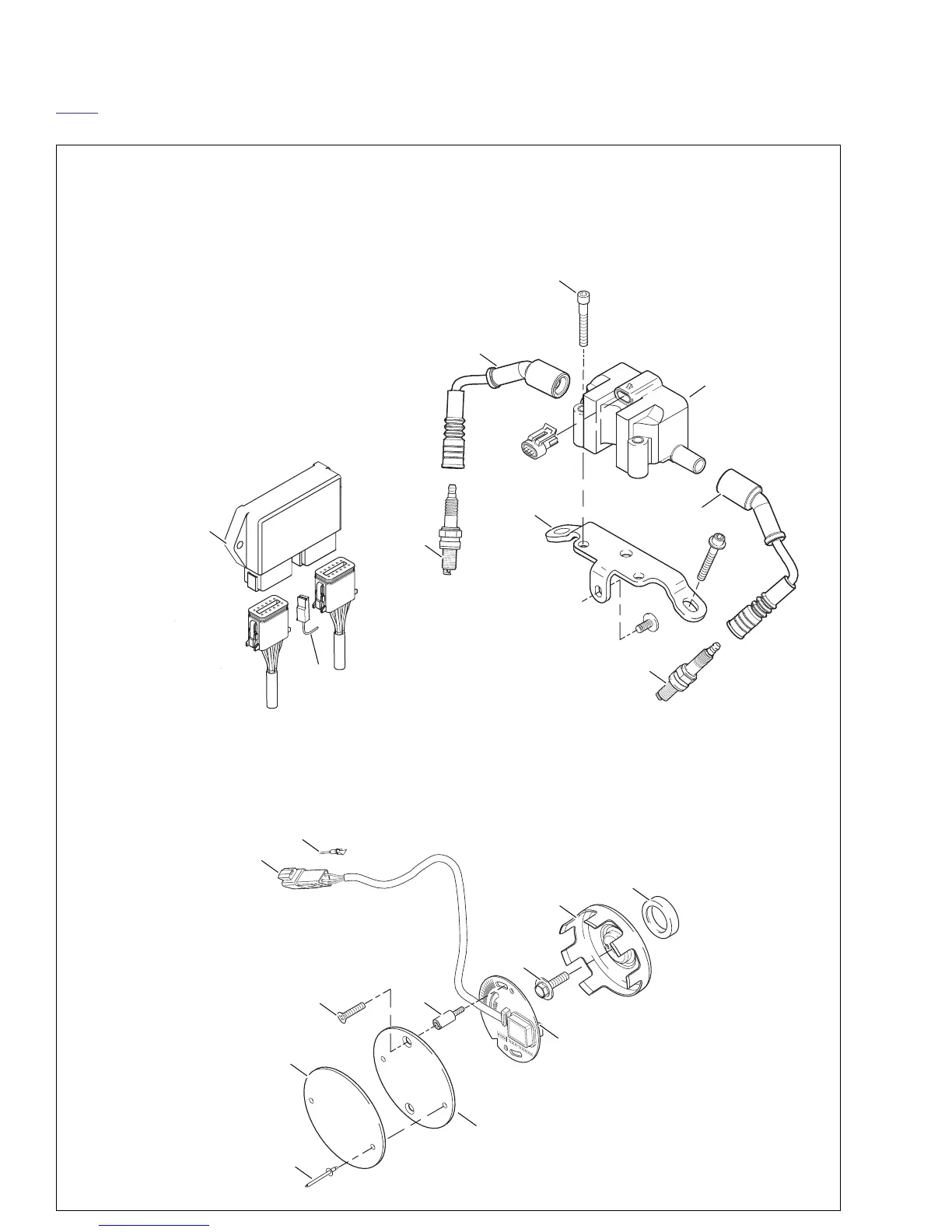

Figure 4-74. Ignition Components
b1164a4x
1. Pop rivet (2)
2. Timer cover
3. Screw (2)
4. Timer plate stud (2)
5. Cam position sensor connector [14]
6. Terminal pin
7. Electronic control module (ECM)
8. Connector, interactive exhaust system
9. Spark plug (2)
10. Rear spark plug cable
11. Mounting fastener
12. Ignition coil
13. Front spark plug cable
14. Engine mount
15. Seal
16. Trigger rotor
17. Trigger rotor bolt
18. Cam position sensor
19. Inner cover
1
2
3
5
6
7
4
17
16
9
10
11
18
12
13
19
14
15
9
8
