Low Fuel Level Sensor Replacement
1. Remove fuel pump assembly from tank. See REMOVAL
in this section.
2. See Figure 4-96. Disconnect low fuel level sensor con-
nector (10).
3. Remove screw (8) securing low fuel level sensor (7) in
place.
4. Install new sensor.
5. Install screw (8) securing sensor and tighten to 18-22 in-
lbs (2.0-2.5 Nm).
6. Attach low fuel level sensor wire connector (10).
7. Install fuel pump assembly. See INSTALLATION in this
section.

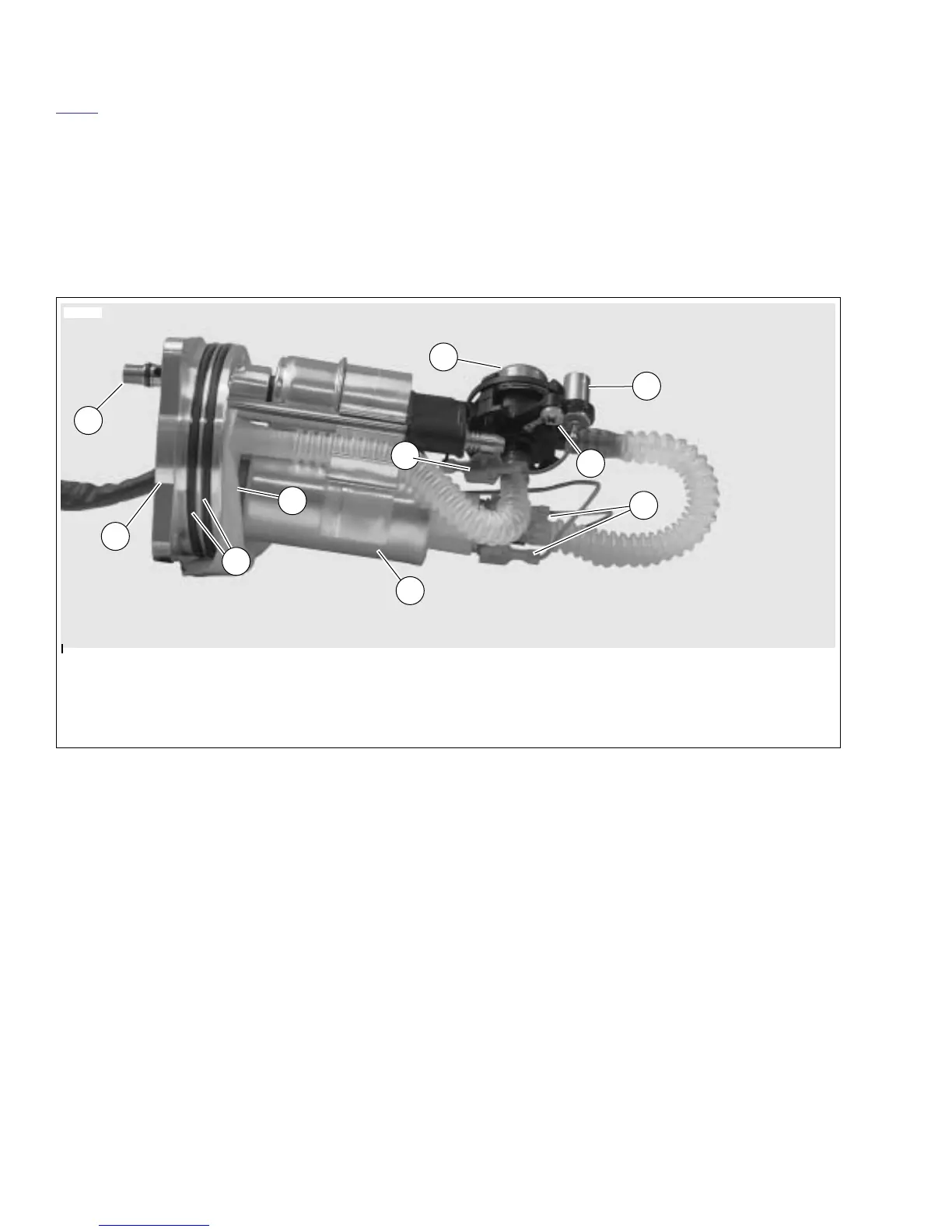

Figure 4-96. Fuel Pump Assembly
1. Fuel supply stud
2. Fuel pump assembly
3. O-rings
4. Fuel screen
5. Fuel pump
6. Fuel pump connectors
7. Low fuel pressure regulator
8. Fastener
9. Fuel pressure regulator
10. Low fuel level sensor connector
9
10
5
3
1
2
4
7
8
6
10935a
