2006 Buell Lightning: Starter 5-21
HOME
STARTER SOLENOID 5.8
GENERAL
NOTE
See Figure 5-28. Do not tighten nut (7) without removing
items (1) through (5). Movement will cause damage to the
contact.
The starter solenoid is a switch that is designed to open and
close the starting circuit electromagnetically. The switch con-
sists of contacts and a winding around a hollow cylinder con-
taining a movable plunger.
DISASSEMBLY
1. See Figure 5-28. Remove screws (1) and clip (2).
2. Remove cover (3) and gasket (4). Discard gasket.
3. Remove plunger (5) from solenoid housing (6).
ASSEMBLY
1. See Figure 5-28. Replace wire connection hardware as
necessary.
2. Install plunger (5) in solenoid housing (6).
3. Install
new
gasket (4) onto cover (3).
4. Position cover with gasket onto solenoid housing. Install
clip (2) and screws (1).

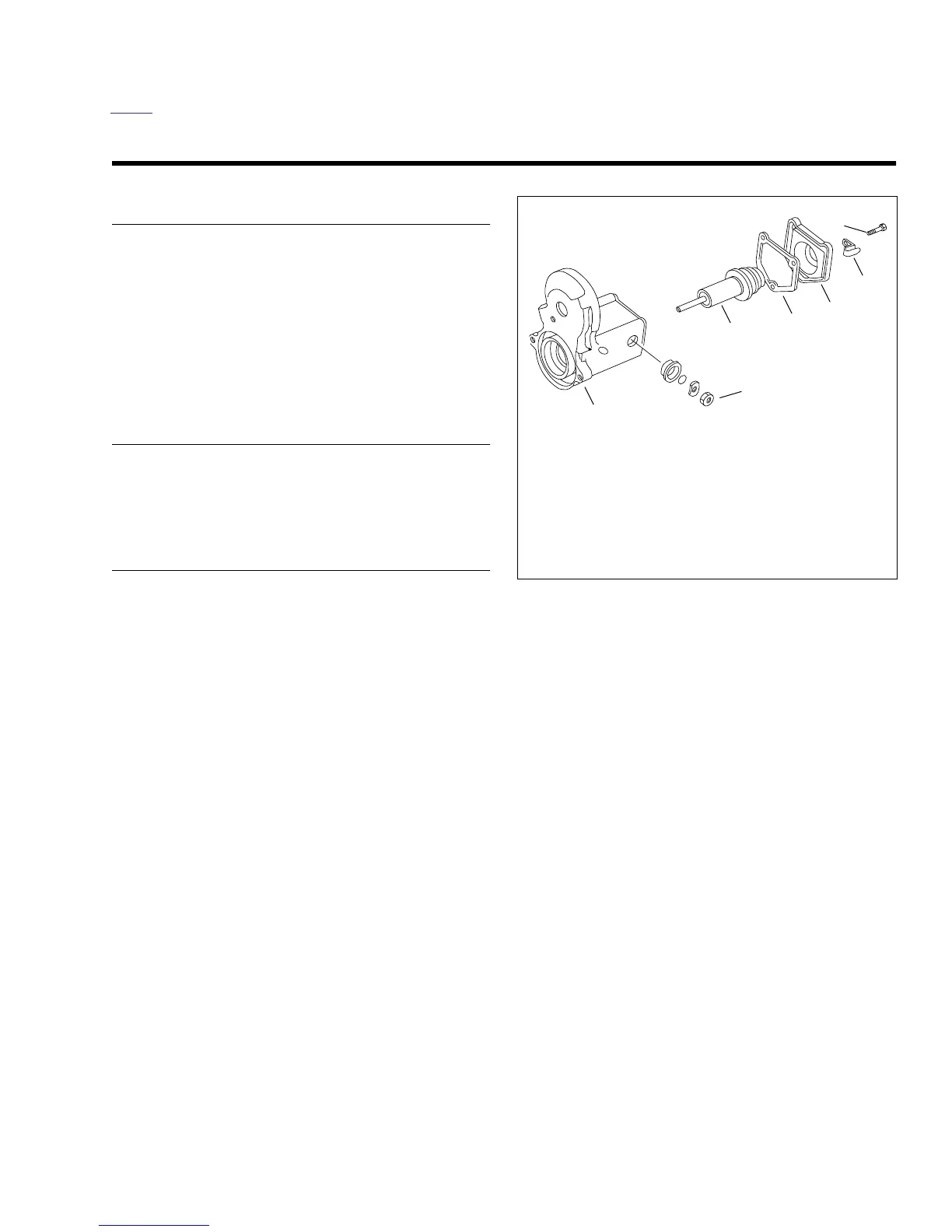

Figure 5-28. Starter Solenoid
