6-4 2006 Buell Lightning: Drive/Transmission
HOME

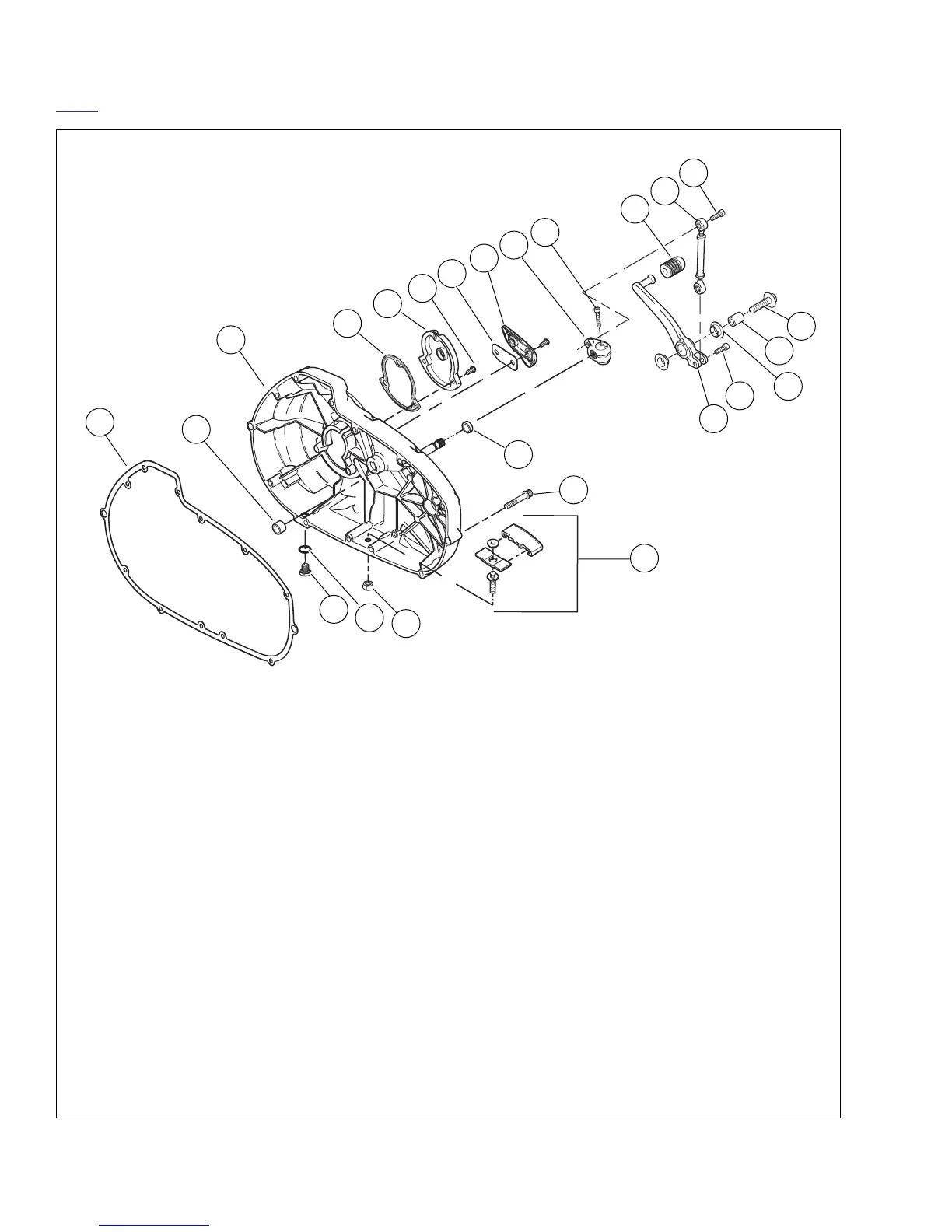

Figure 6-3. Primary Cover, Primary Chain Adjuster and Shifter Assembly
1
9
14
7
8
b1050x6x
2
10
24
3
22
4
5
6
16
17
15
12
13
11
18
21
19
1. Gasket
2. Shifter bushing
3. Primary cover
4. Gasket
5. Cover
6. Sems screw(5)
7. Inspection cover gasket
8. Inspection cover
9. Lever
10. Screw
11. Rubber shift lever pad
12. Linkage assembly
13. Shifter linkage assembly bolt
14. Flange head bolt
15. Shift/brake lever sleeve
16. Pedal bearing (2)
17. Bolt
18. Shifter lever
19. Oil seal
20. Sems screw (14)
21. Adjuster assembly
22. Chain adjustment nut
23. O-ring
24. Drain plug
