11. See Figure 6-49. Remove shifter shaft assembly.
12. See Figure 6-50. Depress ratchet arms (3) in order to
clear the shifter drum and remove shifter shaft assembly
from left crankcase half.
13. Remove starter. See 5.7 STARTER.
14. See Figure 6-51. Remove rear isolator assembly by
removing the forward two fasteners first and then the two
rear fasteners (re-install with new fasteners).

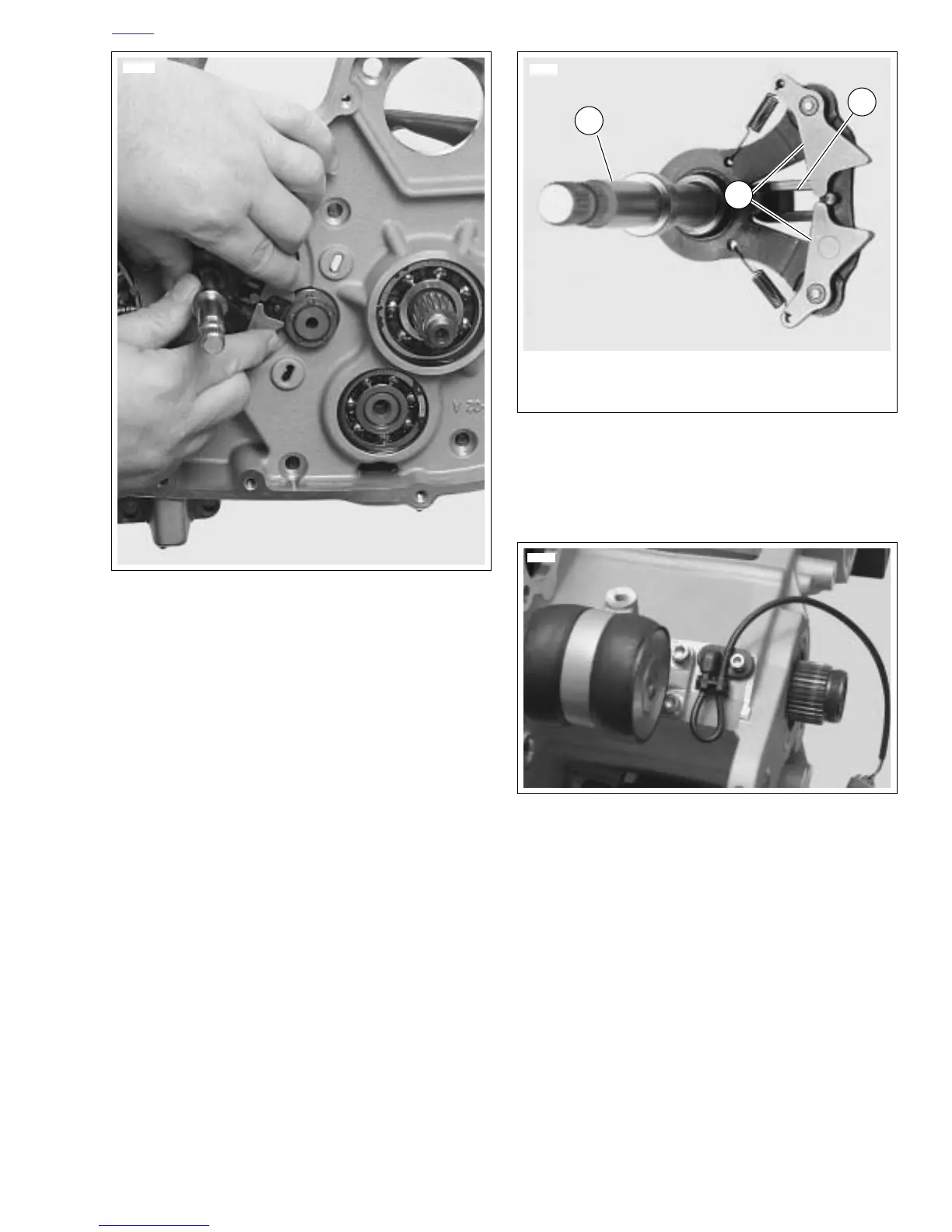

Figure 6-49. Removing Shifter Shaft Assembly
11403
Figure 6-50. Shifter Shaft Assembly
Figure 6-51. Rear Isolator Assembly
1. Shifter shaft
2. Return spring
3. Ratchet arms
1
11462
3
2
8723a
