MAIN DRIVE GEAR 6.11
GENERAL
NOTE
See Figure 6-66. When removing the main drive gear (3), the
gear is pressed out against the resistance of the ball bearing
(8) inner race. Without any support at the inner race, the
bearing is destroyed. Whenever the main drive gear is
removed the main drive gear bearing must also be replaced.
PART NO. SPECIALTY TOOL
HD-35316-C Main drive gear remover and installer
B-45847 Cross plate
HD-47855 Inner/outer main drive gear needle
bearing installation tool
HD-95637-46A Bearing race puller
HD-47856 Seal driver

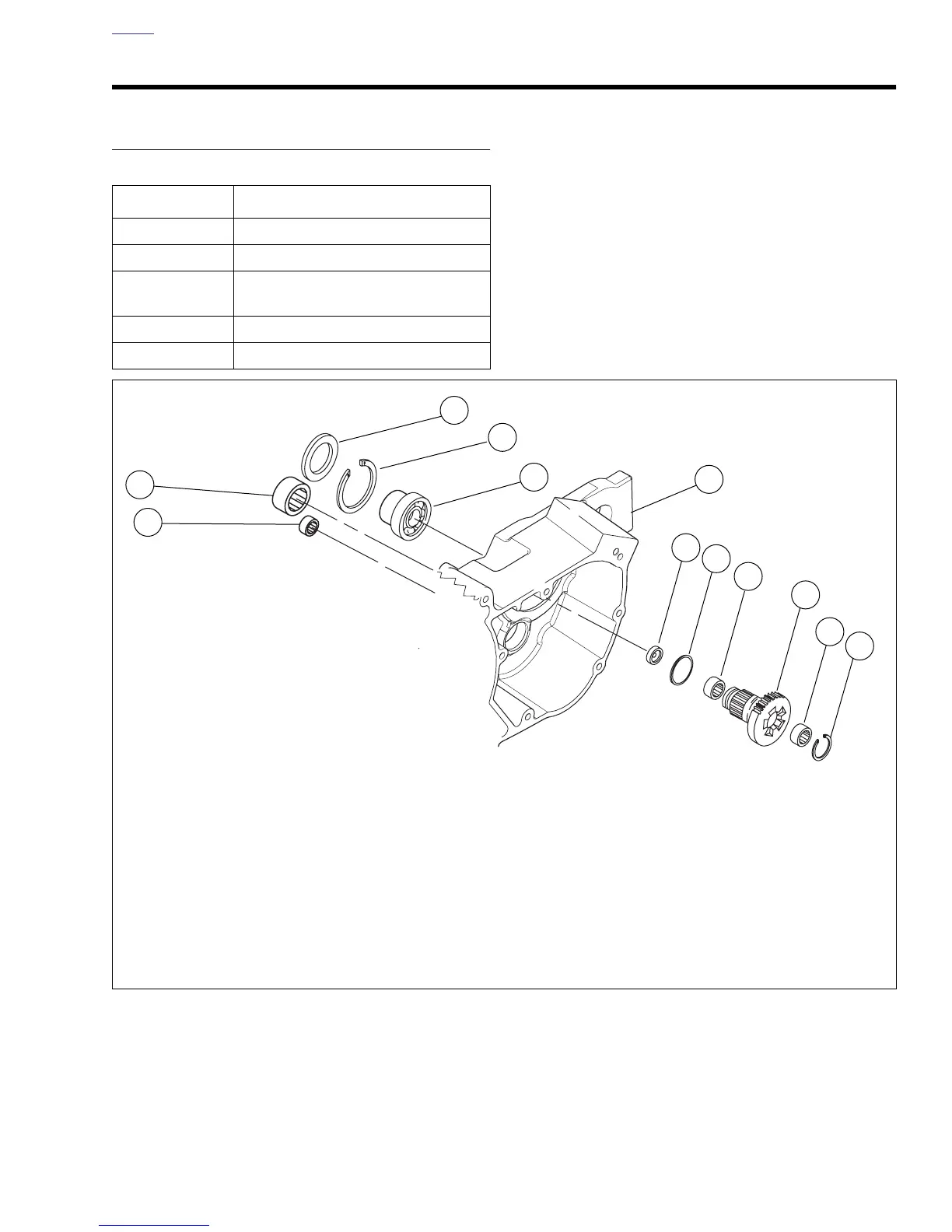

Figure 6-66. Transmission Assembly-Right Crankcase Half
1. Retaining ring
2. Bearing (Inner)
3. Fifth gear mainshaft
4. Bearing (Outer)
5. O-ring
6. Oil seal
7. Right crankcase half
8. Ball bearing with spacer
9. Retaining ring
10. Oil seal
11. Bearing, (closed end) countershaft
12. Bushing, shifter drum
b1013x6x
10
8
4
2
1
12
3
5
7
9
11
6
