6. See Figure 6-82. Thread NUT (Part No. HD-47856-5)
onto end of adapter, until it tightens against installer.
7. See Figure 6-83. Place CROWFOOT WRENCH (Part
No. HD-47856-7) (1) with 1/2 inch drive breaker bar (2)
on large nut. Place an adjustable wrench (3) on flats of
hex head cast into end of adapter.
8. Holding smaller wrench, tighten nut with larger wrench
until outer face of seal is flush with outer edge of crank-
case bore.
NOTE
It is acceptable to recess seal to about 0.030 in. (0.762 mm)
below outer edge of bore. Seal will be controlled by tool.
9. Remove nut, installer, adapter and pilot.

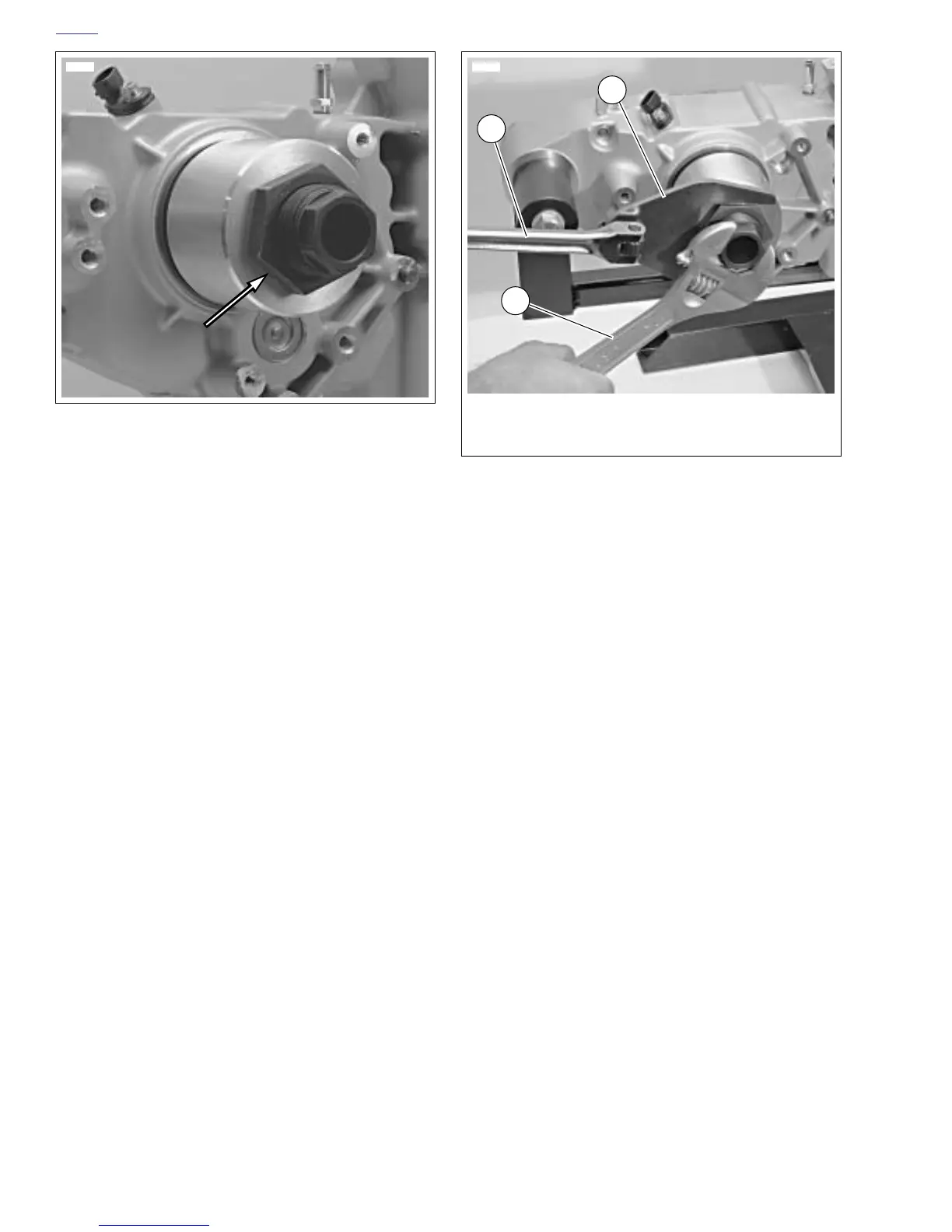

Figure 6-82. Install NUT (Part No. HD-47856-5) (Typical)
12044
Figure 6-83. Press Seal Into Crankcase
12089
1
3
2
1. CROWFOOT WRENCH
2. 1/2 inch breaker bar
3. Adjustable wrench
