Buell 2006LIGHTNING MODELS User Manual

7-48 2006 Buell Lightning: Electrical
HOME
Rear
1. Remove seat See 2.43 SEAT.
2. See Figure 7-59. Disconnect bullet connectors [18] &
[19] on turn signal wires.
3. See Figure 7-60. Remove fastener and lockwasher (4).
NOTE
In next step, reflector bracket (3) will be removed with turn
signal (1).
4. Remove turn signal from center tail section (5).

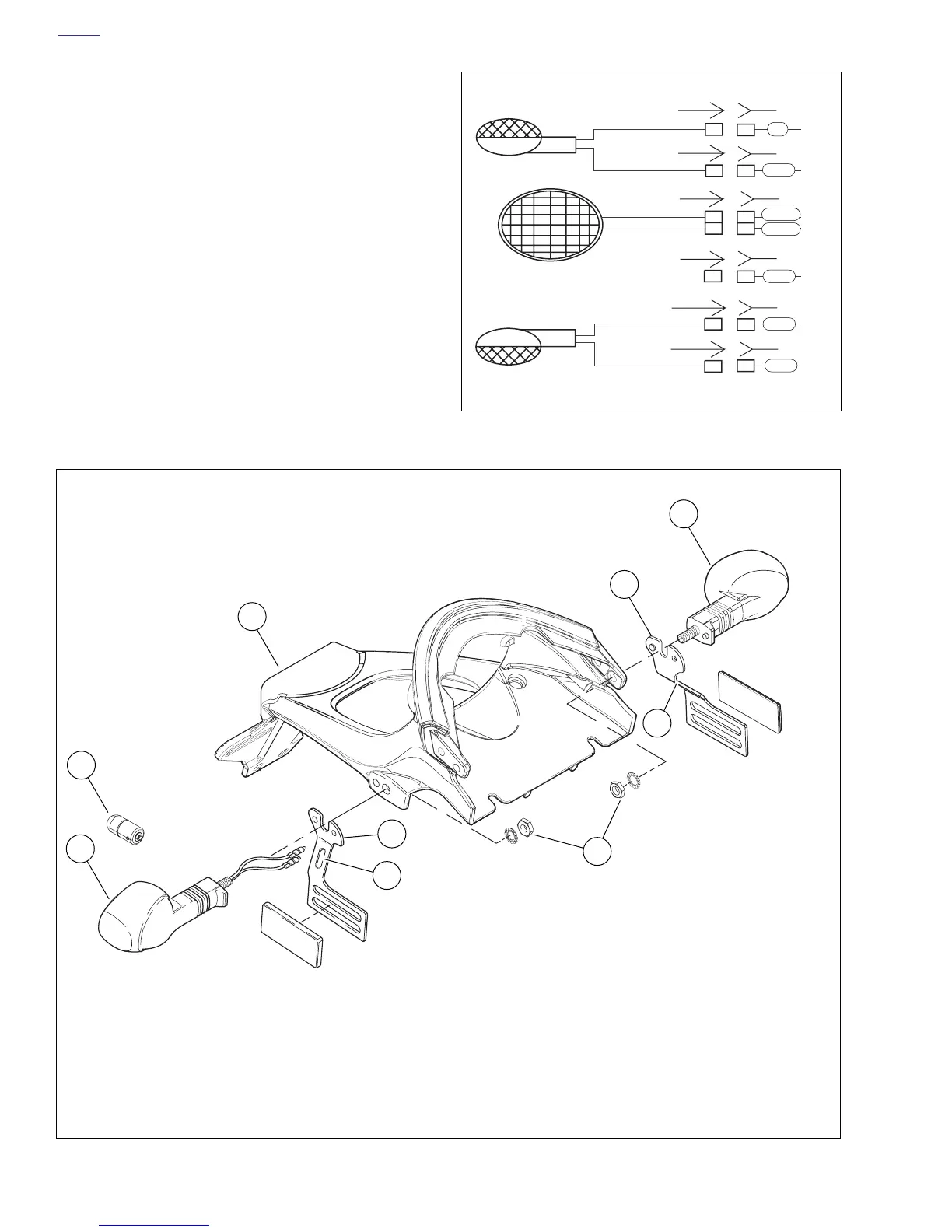

Figure 7-59. Rear Turn Signal Connections
1
1
2
2
2
2
1
1
1
2
1
2
1
1
[19A]
[93A] [93B]
[93B]
[93A]
[18A] [18A]
[18A]
[18A]
[19A]
[19B]
[19B]
Right turn signal
Tail lamp
b1099x7x
Left turn signal
V
BK
BK
BN
Tail lamp ground
BK
O/W
R/Y
Figure 7-60. Rear Turn Signals
1. Turn signal (2)
2. Turn signal bulb
3. Reflector bracket
4. Jam nut and lockwasher (2)
5. Center tail section
6. Bungee hooks
b1261x7x
5
3
2
1
1
3
4
6
6
