2006 Buell Lightning: Electrical 7-65
HOME
BATTERY FUSE AND FUSES 7.23
GENERAL
Buell motorcycles feature two components which protect the
electrical system.
Fuses
The covered fuse block is under the seat.
See Figure 7-84. The lights, key switch and ignition fuses are
rated at 15 amps. The ECM, cooling fan, brake/horn and
accessory fuses are rated at 10 amps.
Always investigate the cause of blown fuses before replacing
them.
Battery Fuse
See Figure 7-85. The 30 amp battery fuse is located under
the seat.
To disable the motorcycle’s ignition system, pull the battery
fuse up and out of the fuse block.

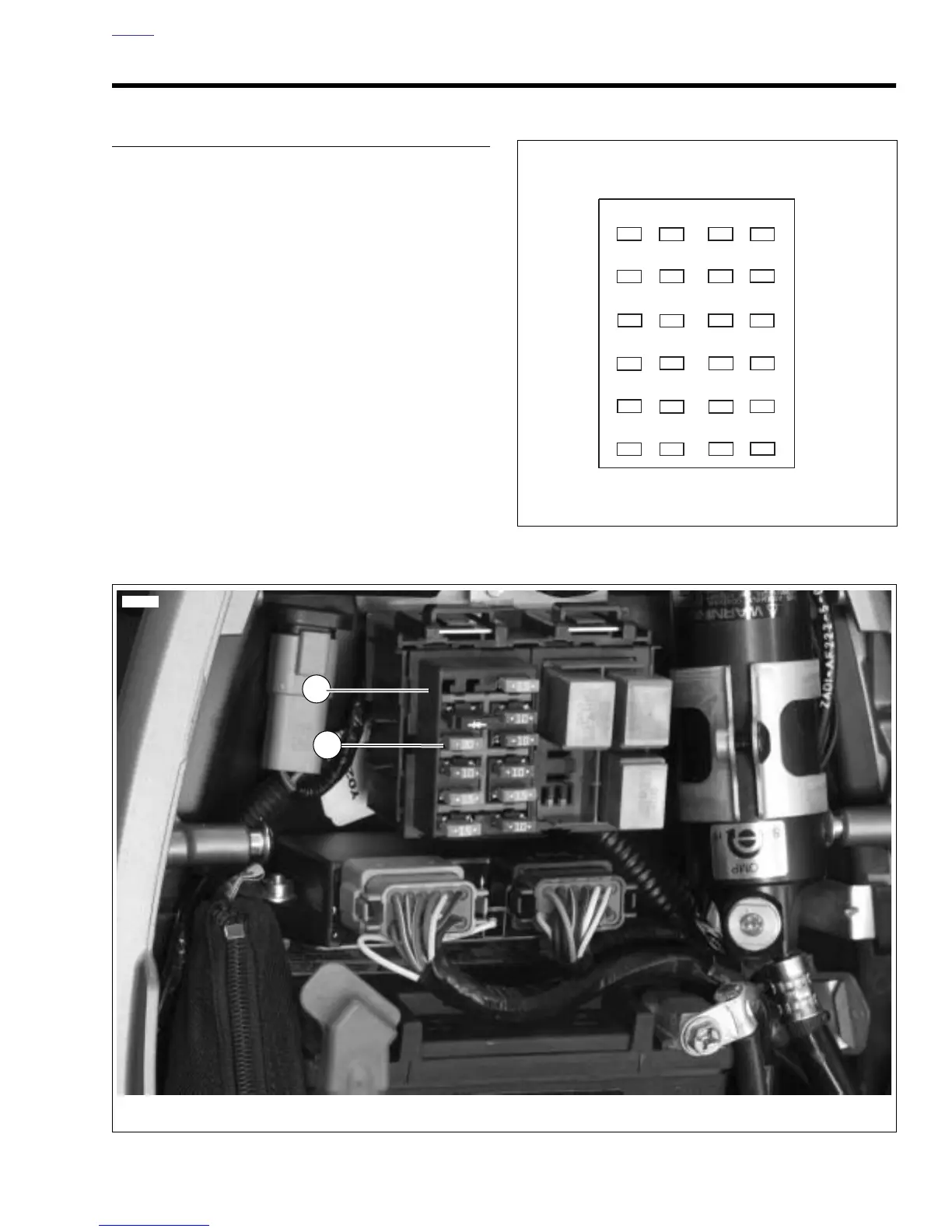

Figure 7-84. Fuse Block
39
40
41
42
43
44
33
34
35
36
37
38
21
22
23
24
25
26
28
29
30
31
32
27
Spare
Diode
Bk/Hn/Mflr
Fan
IGN
Acces.
Key Sw
Lights
ECM
Spare
Empty
Battery
Figure 7-85. Fuse Block and Battery Fuse Location
1. Fuse block 2. Battery fuse
1
2
10658
