22. See Figure 7-95. Install cable straps:
a. Front cable strap (3) secures voltage regulator and
oil pressure switch wiring.
b. Middle cable strap (2) secures voltage regulator, oil
pressure switch and cam position sensor wiring.
c. Rear cable strap (1) secures conduit to voltage reg-
ulator wiring.
23. Verify that front forks can be turned from full left to full
right lock without wire harness binding or pinching.
1WARNING1WARNING
Connect positive (+) battery cable first. If positive (+)
cable should contact ground with negative (-) cable con-
nected, the resulting sparks can cause a battery explo-
sion, which could result in death or serious injury.
(00068a)
24. Install positive battery cable (red) to positive terminal of
battery. Tighten to 72-96 in-lbs (8-11 Nm).
25. Connect negative battery cable. Tighten to 72-96 in-lbs
(8-11 Nm).
26. Verify operation of all electrical components.
27. Install windscreen. See 2.42 WINDSCREEN.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
28. Install seat. See 2.43 SEAT.

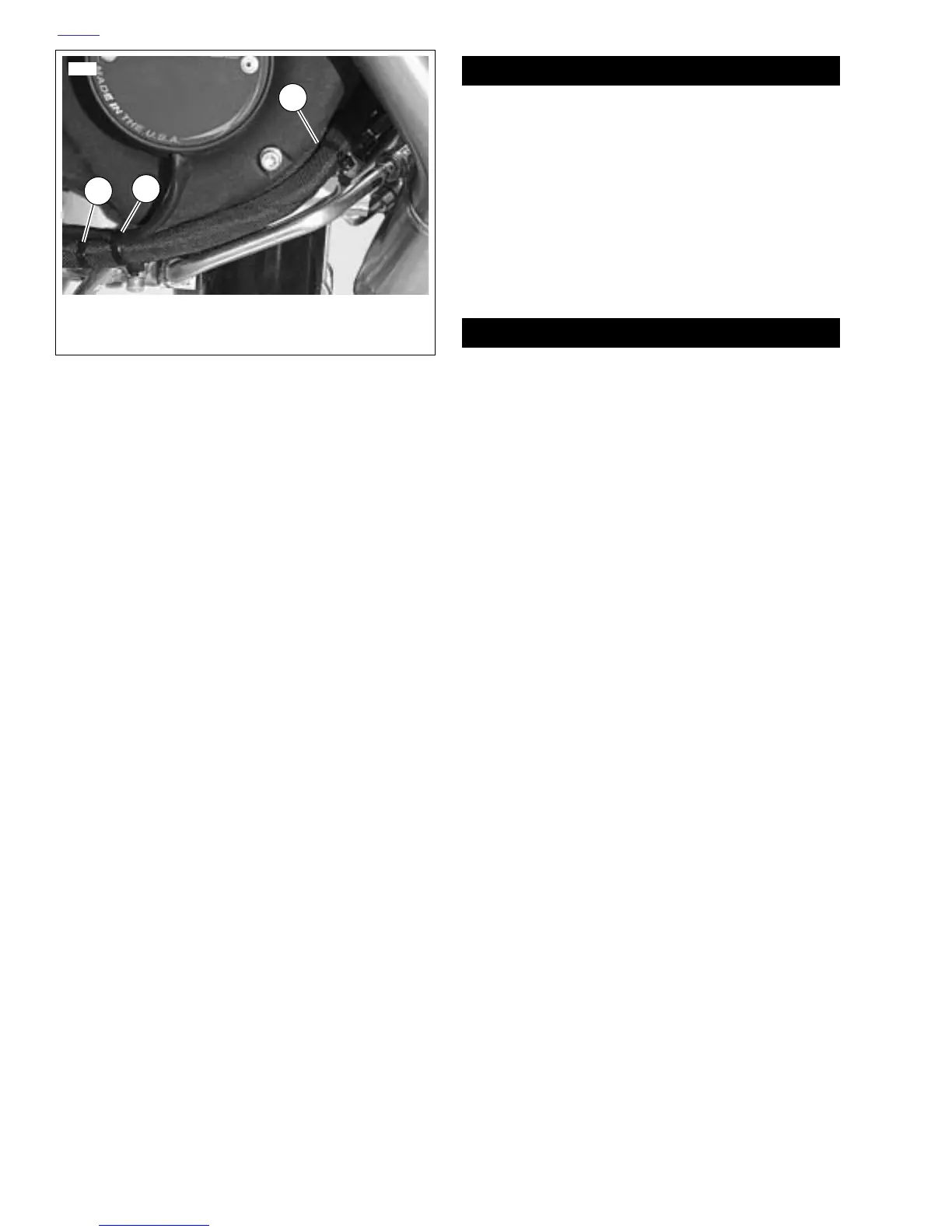

Figure 7-95. Cable Straps
1. Rear cable strap
2. Middle cable strap
3. Front cable strap
